APC by Schneider Electric Netshelter SX 42U 750MM Wide X 1070MM Deep Enclosure Without - AR3150X610

APC by Schneider Electric AR3150X610 NetShelter SX 42U Server Rack Enclosure

Overview

The APC by Schneider Electric AR3150X610 is a 42U, 750mm-wide by 1070mm-deep open-frame steel enclosure from the NetShelter SX line — a proven workhorse for IT rooms, wiring closets, and edge deployments where you need dense equipment mounting without a custom build. At 42U of usable rack space and a 3,006 lb static load rating, it handles fully loaded switch stacks, UPS units, and dense patch panel runs without structural compromise. If you're specifying a rack enclosure for a new data closet or expanding an existing row, the AR3150X610 belongs on the short list. Browse the full APC by Schneider Electric catalog for compatible PDUs, blanking panels, and cable management accessories.

Key Features

• 42U Height: Forty-two rack units of usable space in a single enclosure means you can consolidate a full server, switching, and patch stack in one cabinet — fewer enclosures, cleaner cable runs, lower floor-space cost per port.
• 750mm Width / 1070mm Depth: The 750mm-wide footprint accommodates standard 19-inch EIA equipment on center-rail mounting while leaving lateral clearance for side-panel cable routing. The 1070mm depth handles deep 2U/4U servers and fully loaded blade chassis without the door hitting the rear connector stack — relevant when you're mounting long 1U storage controllers or dual-PSU 2U servers.
• 3,006 lb Static Load Rating: This isn't a light-duty office rack. A 3,006 lb rating means you can fill 42U with enterprise-class hardware — dense blade enclosures, UPS batteries, high-density patch panels — without approaching the structural limit. Most single-rack deployments top out well below this threshold.
• Integrated Cable Management: Built-in cable management channels reduce the time spent retrofitting aftermarket guides and keep inter-rack cabling organized from day one. Cleaner cable paths mean faster troubleshooting and less airflow obstruction in the rear.
• Wheels and Leveling Feet: Casters allow repositioning during fit-out without a lift team. Included leveling feet lock the enclosure in place on uneven raised-floor tiles or concrete — swap wheels for feet once the cabinet is in its final position to eliminate roll and meet seismic bracing requirements where applicable.

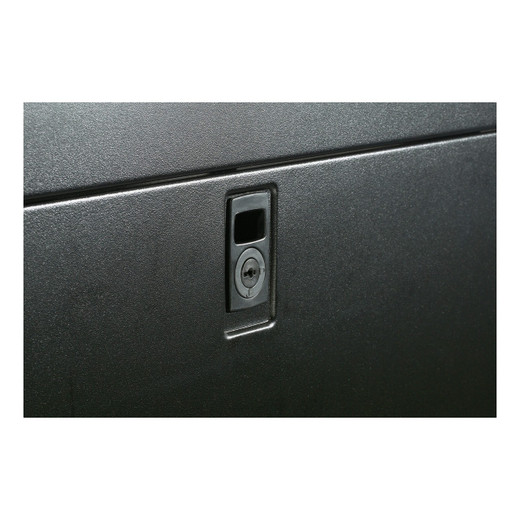

• Key Lock with Integrated Security: The keyed front and rear door locks restrict physical access to rack-mounted equipment — relevant for co-located or shared-space deployments where badge access alone doesn't satisfy equipment security policy.
• EIA-310-E / UL 60950 / RoHS Compliant: EIA-310-E compliance means standard 19-inch equipment mounts correctly without adapter rails. UL 60950 listing satisfies data center facility requirements in most jurisdictions. RoHS compliance supports procurement policies in regulated industries and EU deployments.
• Steel Construction, Black Finish: Cold-rolled steel framing resists racking forces from dense, unbalanced loads that can deform lighter-gauge enclosures over time. The black finish is standard for mixed-vendor rows.

Integration & Compatibility

The AR3150X610 mounts standard 19-inch EIA-310-E equipment — switches, servers, patch panels, UPS units, PDUs, and KVM trays — without modification. The 1070mm depth accommodates most enterprise server form factors. Pair with APC rack PDUs and blanking panels for a complete power and airflow-management solution. For structured cabling buildouts, the integrated cable management pairs naturally with a patch panel run along the top or bottom of the enclosure. Mounting kit is included, so standard equipment can be railed and seated on delivery.

What's in the Box

• 1x AR3150X610 42U rack enclosure
• Rack leveling feet
• Side panels
• Keys
• Mounting kit

Frequently Asked Questions

Q: What is the static load rating of the AR3150X610?

A: The AR3150X610 is rated for a 3,006 lb static load — sufficient for fully populated enterprise server and UPS configurations across all 42U.

Q: Does the AR3150X610 include side panels and a mounting kit?

A: Yes. The package includes side panels, rack leveling feet, keys, and a mounting kit. No separate accessory order is required for basic installation.

Q: What compliance certifications does the AR3150X610 carry?

A: The AR3150X610 is compliant with EIA-310-E (standard 19-inch rack specification), UL 60950, and RoHS.

Q: What is the warranty on the AR3150X610?

A: APC covers the AR3150X610 under a limited replacement warranty of 5 years.

Q: Can the AR3150X610 accommodate deep servers like 2U or blade chassis units?

A: The 1070mm internal depth handles most enterprise 2U servers and blade enclosures. Confirm rear connector clearance against your specific server's depth specification before ordering.

Q: Does the AR3150X610 ship with wheels?

A: The enclosure includes integrated wheels for repositioning during installation, along with leveling feet to lock it in place once positioned.

Jerry Tildsen

The AR3150X610 is the enclosure I spec when the conversation starts with 'we need room to grow.' Forty-two rack units at 1070mm deep gives you enough runway to land a full compute, switching, and UPS stack in a single cabinet — and the 3,006 lb load rating means you're not going to hit a structural ceiling before you hit a power or cooling ceiling.

Technical Highlights:

• 3,006 lb Load Rating: Practically speaking, this is well above what any realistic 42U equipment mix will weigh. It matters most in high-density UPS and battery configurations where per-U weight climbs fast.
• 1070mm Depth: The extra depth compared to 900mm-class enclosures pays off when you're mounting dual-PSU rack servers or storage controllers with rear cabling — you're not fighting the rear door on install day.
• EIA-310-E Compliance: Standard rail spacing means every vendor's rack-mount kit installs correctly the first time. No shimming, no custom rail adapters, no surprises when a new switch arrives.

Deployment Considerations:

• The wheels-to-leveling-feet swap is a real step — don't skip it. Casters left under a loaded cabinet on a raised floor can migrate over time, which creates cable tension and alignment issues in high-density rows.
• Side panels ship with the unit, but blanking panels are not included. Order a full set of 1U blanking panels separately if airflow management is a site requirement — open U slots will short-circuit front-to-rear airflow in sealed hot/cold aisle configurations.

For a new edge IT room or a wiring closet buildout where you're consolidating switching, patching, and a small UPS into one enclosure, the AR3150X610 is the practical answer — deep enough for real servers, rated for real loads, and standards-compliant out of the box.
