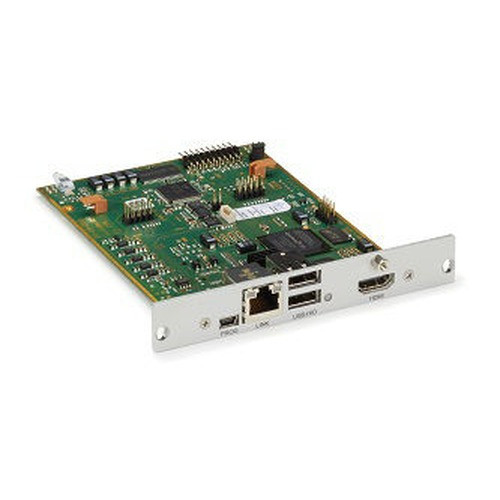

Black Box ACX1MR-HDMI-C Modular KVM Extender HDMI Receiver Module

Overview

The Black Box ACX1MR-HDMI-C is the HDMI receiver module for Black Box's ACX1000 Modular KVM Extender platform — a chassis-based system designed for environments where operators need reliable, low-latency control of remote computers from a consolidated operator desk. The ACX1MR-HDMI-C (sometimes searched as ACX1MR HDMI C) slots into the ACX1000 receiver chassis and handles the HDMI video signal on the remote workstation side, receiving the video stream transmitted from the transmitter unit over the system's extension medium. If your control room, broadcast facility, or secure operations center needs to separate operators from compute hardware — whether for physical security, thermal management, or cable-run simplification — this receiver module is the HDMI-side component that completes that link.

Key Features

• HDMI Connectivity: Dedicated HDMI interface on the receiver side means the remote monitor connects via a standard HDMI cable — no adapters or signal converters needed at the display end, which keeps the operator desk clean and the signal path simple.
• Modular Architecture: The ACX1MR-HDMI-C is a slot-in module for the Black Box ACX1000 chassis, not a standalone box. This matters for multi-head deployments: you populate only the video interfaces you need (HDMI, DisplayPort, DVI) rather than buying discrete extenders for each signal type, reducing rack space and cabling overhead.
• Receiver-Side Role: In KVM extension terminology, the receiver (remote unit) sits at the operator's desk; the transmitter stays with the computer. The ACX1MR-HDMI-C is specifically the KVM extender receiver module, so confirm you have or are ordering the matching transmitter module and chassis before purchasing.
• Scalable Deployment: Because the ACX1000 platform is modular, a single chassis can house multiple receiver modules for multi-monitor operator stations. The ACX1MR-HDMI-C addresses one HDMI display per module slot, making it straightforward to scale a dual- or triple-head workstation by adding modules rather than replacing the entire unit.
• Control Room and Broadcast Fit: Chassis-based KVM extension systems like the ACX1000 are common in broadcast master control, 24/7 security operations centers, and government command environments where hot-swap modularity and long-haul extension matter. The HDMI variant fits modern display infrastructure without requiring legacy connector adapters.

Integration and Compatibility

The ACX1MR-HDMI-C is designed to pair with the Black Box ACX1000 Modular KVM Extender transmitter chassis and its corresponding HDMI transmitter module. It is not a standalone extender and will not function without the compatible transmitter and chassis infrastructure. For complete KVM extender system design — including chassis selection, USB HID or USB 2.0 module pairing, extension medium (fiber or CATx), and maximum distance — consult the ACX1000 series documentation or contact pre-sales engineering before ordering.

Frequently Asked Questions

Q: What chassis does the ACX1MR-HDMI-C install into?

A: The ACX1MR-HDMI-C is a receiver module designed for the Black Box ACX1000 Modular KVM Extender chassis. It is not a standalone device — it requires the appropriate ACX1000 receiver chassis to function.

Q: Does the ACX1MR-HDMI-C include a transmitter module?

A: No. This is the receiver module only. A matching HDMI transmitter module and transmitter chassis are required to complete the extension link. Verify the full system bill of materials before ordering.

Q: What video interface does the ACX1MR-HDMI-C support?

A: The ACX1MR-HDMI-C supports HDMI on the receiver (operator desk) side. For maximum supported resolution, refresh rate, and extension distance, refer to the Black Box ACX1000 series datasheet.

Q: Can I mix HDMI and DisplayPort modules in the same ACX1000 chassis?

A: The ACX1000 platform is designed as a modular system that supports multiple interface types, but slot compatibility and mixing rules depend on the specific chassis configuration. Confirm module compatibility with the chassis SKU before building a mixed-interface system.

Q: Is the ACX1MR-HDMI-C suitable for a 24/7 operations center deployment?

A: The ACX1000 platform targets control room and operations center environments. For specific MTBF, operating temperature range, and power redundancy specs applicable to 24/7 deployments, consult the Black Box ACX1000 series datasheet.

Karl Wilson

The ACX1MR-HDMI-C is one component in a larger system decision, and that context is the most important thing to get right before ordering. As the HDMI receiver module for Black Box's ACX1000 Modular KVM platform, it handles one piece of the signal path — the display-side HDMI connection at the operator station. Getting the chassis, transmitter module, and extension medium spec'd correctly determines everything else about the deployment.

Technical Highlights:

• HDMI Interface: Receiver-side HDMI means standard display connectivity at the operator desk — no proprietary connectors or active adapters at the monitor end, which matters when you're wiring a dense multi-seat control room.
• Modular Slot Design: The ACX1000's module-per-interface architecture lets you build exactly the head configuration you need — one HDMI module per display, mixed with other interface types in the same chassis — without over-buying standalone extender boxes.
• Platform Fit: The ACX1MR-HDMI-C is purpose-built for the ACX1000 receiver chassis. It is not cross-compatible with other Black Box extender families, so confirm the chassis SKU matches before specifying this module in a bid.

Deployment Considerations:

• This module is receiver-only — you need the transmitter module, transmitter chassis, and extension cable (fiber or CATx depending on distance) as separate line items. A common quoting mistake is ordering receiver modules without accounting for all transmitter-side components.
• Resolution, refresh rate, and maximum extension distance are governed by the ACX1000 platform spec, not by this module in isolation. Pull the full ACX1000 datasheet before committing to distance or resolution claims in a system proposal.

The ACX1MR-HDMI-C is the right spec for a broadcast master control room, government SOC, or financial trading floor where operators need HDMI display extension as part of a modular, chassis-managed KVM infrastructure — and where adding or swapping interface modules without replacing the whole extender unit is a real operational requirement.
