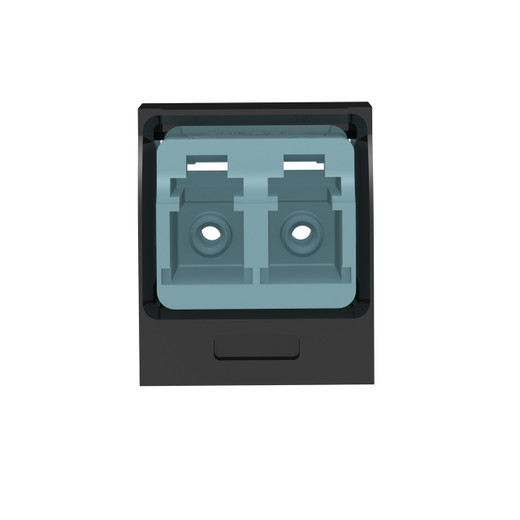

Panduit CMDSAQLCZBL Mini-Com LC Duplex Aqua Fiber Adapter Module
Overview
The Panduit CMDSAQLCZBL is a Mini-Com® series aqua LC duplex fiber adapter module designed for structured cabling installations in intelligent lighting, security, and safety system environments. It fits the standard Mini-Com single-module footprint, which means it drops directly into existing fiber optic patch panels, wall plates, and surface mount boxes already deployed in your infrastructure — no special hardware, no new hardware budget.
The aqua color coding signals OM3/OM4 multimode fiber, making it immediately identifiable during moves, adds, and changes in high-density enclosures where mislabeled or mismatched adapters cause link failures that are slow to diagnose. The black module housing contrasts cleanly against the aqua adapter face, which helps during low-light cabinet work.
It couples two LC duplex connectors in a single module space — so you're terminating up to four fiber strands in the same panel real estate that would otherwise handle a single connection. For structured cabling builds where panel density is a constraint, that matters.
Key Features
- Single Module Footprint — Two LC Duplex Connections: One module space handles both sides of a duplex LC connection, keeping your patch panel density high and your cable management clean. In 24-port Mini-Com panels, this means no module slots wasted on half-utilized positions.
- Zirconia Split Sleeves: Zirconia ceramic is the preferred sleeve material for precision fiber alignment — it maintains tighter bore tolerances than phosphor bronze over repeated insertions, which translates directly to consistent insertion loss figures across the service life of the panel. Critical in loss-budgeted multimode runs where every 0.1 dB matters.
- Aqua Color Coding — OM3/OM4 Identification: The aqua adapter color follows the TIA standard for OM3 and OM4 multimode fiber. In mixed-fiber installations (common in security and AV/IT convergence builds), color-coded adapters prevent cross-patching errors that are invisible until a link won't come up at 10G.
- TIA/EIA-605 FOCIS-10 Compatible: Meets the FOCIS-10 interface standard for LC connectors, so fiber jumpers and connectors from other compliant vendors will terminate correctly. You are not locked into a single connector source.
- Exceeds TIA/EIA-568-B.3 Requirements: The performance standards for optical fiber cabling components specify insertion loss and return loss floors. Exceeding those thresholds means this adapter supports the full loss budget available to your multimode runs — useful when you are at or near the allowable loss ceiling on longer OM4 segments feeding security cameras or access control head-end equipment.
- Integrated Panel Retention Clips: The retention clips are part of the module body — no separate hardware to source, lose, or install incorrectly. Modules seat and lock in one motion, which matters when you are populating a 48-port panel under a deadline.
- RoHS Compliant: Meets the EU Restriction of Hazardous Substances directive, relevant for installations subject to environmental compliance requirements or for government and healthcare facilities with procurement mandates around materials.
- 1.83-Inch Overall Length: The compact 1.83-inch depth fits within standard low-profile enclosures and wall boxes. Verify available depth in your mounting enclosure before ordering in quantity — this dimension can be the deciding factor in shallow-depth applications.
Integration & Compatibility
The CMDSAQLCZBL is part of the Panduit Mini-Com® platform, which means it is designed to install into any Mini-Com-compatible surface mount box, keystone patch panel, or modular wall plate. This covers a broad range of existing Panduit infrastructure and, depending on the enclosure, third-party Mini-Com-format hardware as well — verify your specific enclosure's module format before mixing brands.
The LC duplex interface is one of the most widely deployed fiber connector types in enterprise and commercial security infrastructure. It pairs with standard LC-to-LC, LC-to-SC, and LC-to-ST duplex patch cords and pigtails. Competitor cross-reference part numbers 41085-LLV and STOK-Q052-00-A01 are documented equivalents for sourcing comparison.
For security and intelligent lighting system integrators, this module is a practical fit at fiber-to-device transition points — camera backhaul fiber runs terminating to patch panels before converting to copper PoE for device power and data, or direct fiber-connected access control panels and video management servers in IDF/MDF closets.
Sold in quantities of 1 (package quantity), with a carton quantity of 10 for larger deployments. If you are populating multiple panels on a single project, ordering in carton quantities simplifies procurement and often improves per-unit economics. See the full fiber optic adapter and connector selection for complementary components.
What's in the Box
- 1x Panduit CMDSAQLCZBL Mini-Com Aqua LC Duplex Black Adapter Module
Frequently Asked Questions
Q: What fiber types is the CMDSAQLCZBL designed for?
A: The aqua color coding on this adapter follows the TIA standard for OM3 and OM4 multimode fiber. It is not intended for OS1/OS2 single-mode applications, which use blue or green adapter housings under the same color convention.
Q: Does the CMDSAQLCZBL fit standard keystone patch panels from other manufacturers?
A: It is designed specifically for the Panduit Mini-Com module format. While some third-party panels accept Mini-Com-format modules, compatibility varies by enclosure brand and model. Verify your enclosure's module format specification before mixing manufacturers.
Q: What standards does the CMDSAQLCZBL meet?
A: The CMDSAQLCZBL is RoHS compliant, meets TIA/EIA-605 FOCIS-10 compatibility requirements, and exceeds TIA/EIA-568-B.3 performance requirements for optical fiber cabling components.
Q: What is the overall length of the CMDSAQLCZBL module?
A: The overall length is 1.83 inches. Verify available enclosure depth before installing in shallow wall boxes or low-profile surface mount enclosures.
Q: Can the CMDSAQLCZBL be used in security and access control fiber runs?
A: Yes. Panduit lists intelligent lighting, security, and safety systems as documented application areas for this module. It is suited for fiber termination points in IDF/MDF closets, patch panels feeding camera backhaul runs, and similar structured cabling applications in security infrastructure.
Q: What is the package and carton quantity for the CMDSAQLCZBL?
A: The standard package quantity is 1 module. Carton quantity is 10, which is the typical procurement unit for panel population projects.
The CMDSAQLCZBL is the detail that keeps fiber panel work clean and repeatable. The zirconia split sleeve is the spec that separates this from bargain-bin LC adapters — ceramic holds tighter bore tolerances than phosphor bronze through hundreds of mating cycles, and on a 10GbE OM4 run where you've got maybe 1.5 dB of total loss budget, consistent insertion loss at every adapter in the chain is the difference between a link that works and one that marginal-fails six months after commissioning.
Technical Highlights:
- Zirconia Split Sleeves: Maintain precise fiber alignment across repeated insertions — critical on loss-budgeted 10G multimode runs where cumulative adapter loss across a multi-point patch path determines whether the link holds margin.
- FOCIS-10 / TIA-568-B.3 Compliance: Exceeds the base performance floor for LC fiber cabling components, meaning the adapter itself will not be the weak link in a compliant structured cabling system.
- Mini-Com Single-Module Footprint: Two full LC duplex connections in one module space — directly relevant for high-density panels in IDF closets where every module slot is allocated.
Deployment Considerations:
- Aqua housing is the correct choice for OM3/OM4 multimode runs. If your fiber plant is OS2 single-mode (common on long campus backbone runs between buildings feeding remote security head-ends), you need the single-mode variant — do not mix adapter colors with fiber types in the same panel without labeling the distinction explicitly.
- At 1.83 inches overall length, confirm available enclosure depth before specifying in bulk for shallow surface-mount boxes — this is the most common installation mistake on first-time Mini-Com builds.
Best fit for IDF/MDF closet patch panels in commercial security builds where OM3 or OM4 multimode backhaul feeds camera systems, access control panels, or intercom infrastructure and you need standards-compliant, high-cycle-life termination points that won't degrade link performance over the building's service life.
