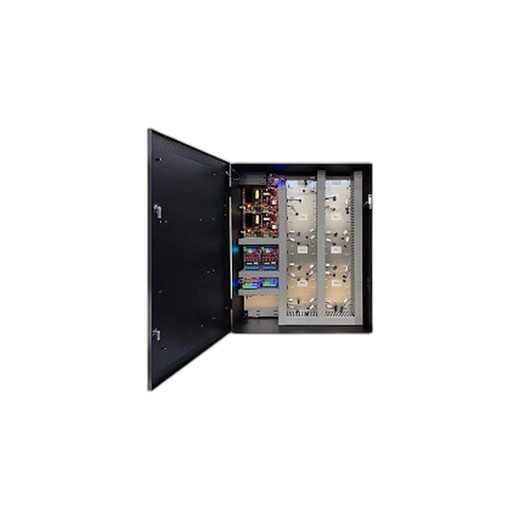

Lifesafety Power FPO150-B150M8NLCSD16E6M/P8-A 150W Managed Power Supply
The FPO150-B150M8NLCSD16E6M/P8-A is a 150W managed power distribution unit designed for mid-scale IP security deployments where you need to power multiple ancillary devices—cameras, access control readers, door locks, IR illuminators, or auxiliary sensors—from a single, monitored source. Built around the Lifesafety Power ecosystem, this supply delivers either 12A at 12VDC or 6A at 24VDC, split across 8 independently fused outputs.
Key Features
- 150W Total Output: Sufficient for mid-scale distributed installations; choose 12V (12A) for longer cable runs with lower voltage drop, or 24V (6A) for efficiency when devices cluster near the supply.
- 8 Managed Outputs with Individual 3A Fusing: Each output is independently fused at 3A, isolating a fault to a single device or zone. Prevents one shorted IR illuminator or reader from collapsing the entire power tree.
- M8 Managed Distribution Module: Supervision and load monitoring built into the distribution board; integrates with security control panels or building management systems for real-time health status. Detect a powered device failure before it becomes an operational blind spot.
- Compact E6 Enclosure (30H × 23W × 6.5D inches): Small footprint fits into equipment racks, wall-mount cabinets, or under-desk installations without consuming valuable rack space. Mercury back plate option available for added cable management and shielding.
- Single FPO Buss/Flex Cable Kit Included: Proprietary interconnect harness simplifies field wiring and reduces integration time; standard Lifesafety Power ecosystem components work with this unit.
- Supports Battery Backup Integration: Architecture accommodates UPS or auxiliary battery modules for mission-critical access control and emergency lighting circuits during AC power loss—key for life-safety compliance in facilities with occupied egress routes.
Integration & Compatibility
The FPO150-B150M8NLCSD16E6M/P8-A is part of the Lifesafety Power modular ecosystem. The model designation breaks down as follows: FPO150 (150W supply) + B150 (board configuration) + M8 (8-output managed module) + NLC (network/supervision interface) + SD16 (distribution card type) + E6 (enclosure size) + M/P8 (Mercury back plate, 8-output pinout) + A (revision). If you need to expand beyond 8 outputs or increase total capacity, consider the FPO75 or FPO250 variants within the same family. This supply integrates with standard 12VDC and 24VDC security equipment: IP cameras drawing under 3A per port, electronic door locks, reader power modules, outdoor IR illuminators, and alarm sensors. Verify specific device power requirements against the 3A per-channel limit to avoid nuisance fuse trips under transient inrush conditions.
Supervision wiring connects to your control panel or NVR's power monitoring input, allowing real-time status reporting and alerting if an output loses power or a device draws excessive current. This is particularly valuable in multi-building campuses or warehouse environments where physical power-supply inspection visits are infrequent.
When to Choose a Different Model
If a single installation requires more than 8 independent outputs, the FPO150 with M16 distribution module provides 16 fused channels in the same footprint. If total power budget exceeds 150W—for instance, powering 20+ outdoor IR illuminators or a large access control reader matrix—step up to the FPO250 series. Conversely, if you're powering only 1–2 ancillary devices in a small remote cabinet, a simpler unmanaged 12VDC or 24VDC supply may reduce cost and complexity unnecessarily. Evaluate whether supervised output monitoring justifies the FPO150's additional cost versus a basic industrial power supply for your specific facility risk profile.
Frequently Asked Questions
Q: Can I mix 12V and 24V devices on the same FPO150?
A: No. The unit outputs either 12VDC (all 8 channels at 12V) or 24VDC (all 8 channels at 24V) depending on configuration. You cannot split outputs between voltage classes. Select the voltage class that matches your device population before installation.
Q: What happens if a single device draws more than 3A?
A: That channel's fuse will trip, cutting power to the faulted device. The remaining 7 outputs remain live. Check device specifications to confirm all connected equipment draws under 3A steady-state, plus account for inrush current on startup (particularly motors and solenoids). If a device requires more than 3A, it must be powered from a separate supply or a dedicated line outside the FPO150.
Q: Does the FPO150 include battery backup?
A: No battery is included. The enclosure and board architecture support optional UPS or auxiliary battery modules; consult the Lifesafety Power FPO75-250 manual for compatible battery expansion kits and installation instructions for your life-safety application.
Q: What is the typical lead time, and is this NDAA-compliant?
A: Lead time depends on distributor inventory. NDAA Section 889 compliance status varies by final assembly location and component origin; verify with your distributor or the manufacturer if federal procurement compliance is required for your project.
Q: Can I daisy-chain multiple FPO150 units?
A: The units can be stacked in a cabinet or mounted side-by-side, but each supply operates independently with its own AC input and fuse isolation. They do not daisy-chain power outputs. Use multiple supplies when deployment sites or zones require distributed power architecture.
Q: How do I integrate the supervision output into my control panel?
A: The NLC (network supervision interface) and SD16 distribution card provide dry-contact or low-voltage supervision outputs. Consult the FPO75-250 manual for specific pin-out diagrams and wiring examples. Most modern access control panels and NVRs with power-monitoring inputs accept standard 12VDC logic signals; verify your panel's specification before field termination.
The FPO150-B150M8NLCSD16E6M/P8-A brings supervised power distribution to mid-scale security installations—a real differentiator when you're managing distributed access readers, IR illuminators, and auxiliary sensors across multiple zones. The 150W capacity and 8 independently fused 3A channels mean you can isolate device faults without cascading failures across your entire power tree.
Technical Highlights:
- 150W Capacity with 12A@12V or 6A@24V Output: Sufficient for a medium-sized warehouse, office campus, or retail multi-location installation. 12V suits longer cable runs; 24V reduces distribution losses in dense installations.
- Individual 3A per-Channel Fusing: If an IR illuminator shorts or an access reader draws excessive current, only that channel fuse trips. This granular isolation prevents a single fault from powering down unrelated circuits—critical for access control continuity in life-safety scenarios.
- M8 Managed Distribution Module with Supervision: Real-time output status reporting feeds back to your panel or NVR. Detect a powered device failure, low output voltage, or fuse trip in seconds rather than discovering it during a facility walk.
Deployment Considerations:
- Verify inrush current: Device startup transients (solenoids, door strikes, IR arrays) can momentarily exceed 3A. If you see frequent nuisance fuse trips, measure actual inrush on your devices—some may require pilot duty fusing or soft-start relays downstream.
- Voltage selection is permanent: The FPO150 ships configured for either 12V or 24V; you cannot reconfigure in the field without opening the enclosure. Order the correct voltage class on day one.
Best Fit: Warehouse and multi-building campus deployments where you're centralizing power to distributed readers, illuminators, and sensors. The small enclosure footprint (30H × 23W × 6.5D) and Mercury back plate option make it a natural fit for wall-mounted or rack-mounted security cabinets where space is competitive. Skip this if your installation has only one or two ancillary devices—an unmanaged supply costs less. Choose this when supervised fault detection and per-channel isolation justify the investment in reliability.
