Lifesafety Power FPO150-B1502M8NLCE4M1 150W Managed Power Supply
Overview

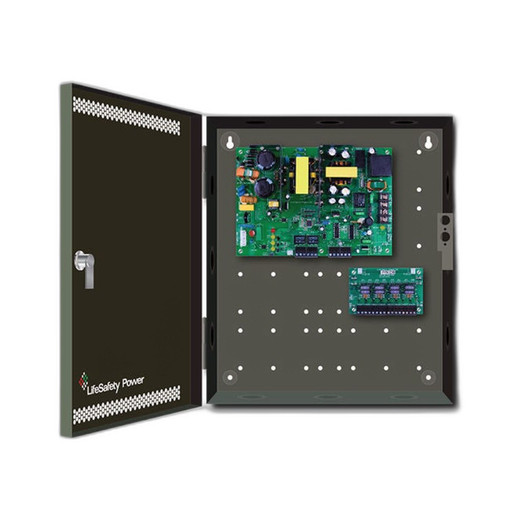

The FPO150-B1502M8NLCE4M1 is a 150W managed distribution power supply delivering 12A at 12V or 6A at 24V — sized for mid-scale surveillance systems running 8–12 compact cameras or access control devices. The integral 8-output managed distribution module fuses each channel at 3A, isolating shorts or overloads on individual devices without cascading system failure. Deploy this where you need centralized, protected power distribution in a single unit rather than stacking separate PSUs and surge strips.
Compatibility
This supply pairs with 12V or 24V camera and access control systems from Axis, Hanwha, Hikvision, Uniview, and other standard surveillance manufacturers. The 8 fused outputs support mixed-voltage loads when configured accordingly. Verify your downstream devices draw ≤3A per output — devices exceeding this limit require a dedicated circuit or higher-capacity supply from the FPO family (FPO250, FPO500).
Installation Notes
Mount in a standard 19-inch rack or wall-mounted enclosure. Wire mains input per local electrical code; output is screw-terminal for field termination. Total load cannot exceed 150W continuous. Each output fuse (3A nominal) trips independently — check fuse condition if a camera or reader loses power. Ensure adequate ventilation around the unit to prevent thermal stress in confined cabinets.
What's in the Box
- 1x FPO150-B1502M8NLCE4M1 power supply with integrated 8-output management module
- 1x Quick Start Guide (FPO75-250)
- 1x NLC Quick Guide
- 1x Buss/Flex Cable Kit (M8/M8P connector compatible)
