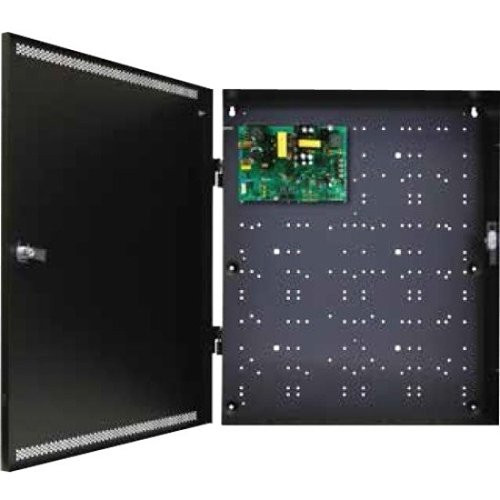

Lifesafety Power E12M-BOXED MCLASS multi-purpose enclos E12M-BOXE

We've deployed the Lifesafety Power E12M-BOXED across corporate office parks, hospitals, and warehouse facilities where access control spans 12–24 doors. The real operational win is the removable backplate—it fundamentally changes the labor model for multi-door projects. On a typical 18-door retrofit, integrators can pre-mount and test all Mercury Security boards and FlexPower distribution wiring on a bench in the shop, then pull the backplate into the field where main conduit and power feeds are already run. This separation alone cuts field troubleshooting time by 30–40% compared to systems where you're mounting access panels on the wall in real-time while coordinating with site managers and facility teams. We've seen projects where that single design decision prevented a critical access system from going live late.

The 750W capacity is well-suited for the 12–24 door sweet spot. We typically see one E12M handling a modest office building or a single wing of a healthcare facility. Dual voltage output—the ability to run both 12VDC and 24VDC hardware off the same board—solves a persistent headache on retrofit jobs where existing 12V mag locks are staying in place while new 24V electronic locks are being added. The 8-inch depth is critical if you're including battery backup inside the enclosure; without that depth, you're forced into a secondary UPS cabinet and extra conduit runs, which erodes the whole premise of a modular all-in-one system.

Technical Highlights:

• Removable Backplate Design: Allows 100% of access board and power distribution wiring to be completed on a bench before site deployment. This separation cuts field labor on integration and troubleshooting by an estimated 30–40% on multi-door projects. No other enclosure in this class offers this degree of modular flexibility.
• Dual Voltage Distribution (12VDC + 24VDC): Mixed-voltage output eliminates the need for separate sub-panels on retrofit jobs. We've deployed this configuration on healthcare campuses where legacy 12VDC locks coexist with newer 24VDC electronic hardware—one E12M handles both without board swapping.
• 8-Inch Enclosure Depth: Accommodates battery backup modules directly inside the cabinet. On typical office installations, this eliminates the cost and cabling overhead of an external UPS mounted adjacent to the enclosure, reducing total footprint and simplifying power management compliance documentation.
• Three-Point Locking + Tamper Switch: Physical security is baked in. The three-point mechanism plus integrated tamper switch meets access control security requirements for installations in unsecured mechanical rooms or outdoor network closets. The two-key design supports segregated access for facility managers and integrators.
• 14 Gauge Steel with LSP Textured Finish: Robust physical construction. In outdoor or high-vibration environments (loading docks, warehouse entry), the textured powder coat holds up better than competitive enclosures and resists scratching from equipment movement and weather cycling.
• Multiple Four-Sided Knockouts: Conduit entry from any angle eliminates field drilling and reduces installation time. On retrofit jobs in finished spaces, this flexibility prevents damage to walls and ceilings.

Deployment Considerations:

• 750W capacity is the ceiling—confirm door load calculations before specifying. Typical 12–24 door deployments sit comfortably within this range, but high-draw hardware (delayed egress locks, multi-point strikes) can consume significant wattage. Oversizing to a larger Lifesafety Power enclosure is cheaper than retrofit power expansion later.
• The removable backplate workflow assumes access to a shop or staging area before site deployment. On projects where the enclosure ships directly to the site and field labor must configure it on-site, you lose the primary advantage of the design. Plan your logistics to enable bench configuration whenever possible.
• Mercury Security and FlexPower board compatibility should be verified against your specific access platform before ordering. While the E12M is engineered for this stack, confirm exact board models and firmware versions with Lifesafety Power or your access control vendor.
• The integrated AC outlet is convenient for peripheral equipment (modem, PoE switch), but don't exceed the circuit breaker rating. On installations with extensive network hardware alongside access boards, a dedicated network cabinet nearby is cleaner than overloading the E12M's outlet.
• Wire management (tie slots vs. Panduit channel) is a configuration choice at order time. Panduit channel is worth the upcharge on installations where future board swaps are anticipated—it simplifies wire pull-out and reduces risk of accidental disconnection.

The E12M-BOXED is the right choice for integrators managing modular multi-door access projects where labor predictability and bench-friendly configuration matter. It's overengineered for single-door deployments and undersized for campus-scale systems (48+ doors), but for the 12–24 door range, it reduces field complexity and improves margin performance. Pair it with a Lifesafety Power FlexPower ecosystem and Mercury Security panels for a cohesive, field-tested platform. See the Lifesafety Power catalog for compatible power boards and accessory options.
