Lenovo 4XG7A14266 SR850/SR860 Xeon Gold 5218

Lenovo 4XG7A14266 Intel Xeon Gold 5218 16-Core Processor for SR850/SR860

Overview

The Lenovo 4XG7A14266 is a factory-new tray-packaged Intel Xeon Gold 5218 processor, specifically validated for deployment in Lenovo ThinkSystem SR850 and SR860 rack servers. Built on Intel's 2nd Generation Xeon Scalable architecture at 14 nm, the 5218 delivers 16 cores and 32 threads with a 2.3 GHz base clock that turbos to 3.9 GHz under single-threaded load peaks — a balanced profile for mixed enterprise workloads where both per-core frequency and aggregate parallelism matter. If your SR850 or SR860 is underpowered for expanding virtualization, video analytics processing, or database workloads, the 4XG7A14266 is the Lenovo-validated path to doubling core count or upgrading from a lower-tier Gold SKU.

Key Features

• 16 Cores / 32 Threads: With 32 concurrent hardware threads on a single socket, this processor handles dense VM guest counts and multi-threaded workloads without requiring a dual-socket upgrade. For a virtualization host running 20–30 small VMs, 32 threads keeps context-switch overhead low and eliminates the NUMA complexity of a two-socket build.
• 2.3 GHz Base / 3.9 GHz Turbo: The 1.6 GHz spread between base and turbo means lightly-threaded tasks — SQL queries, single-threaded build jobs, interactive desktop sessions — see near-top-of-range frequency automatically. No manual overclocking or BIOS tuning required; Intel Turbo Boost handles it dynamically.
• 22 MB L3 Cache: A 22 MB last-level cache reduces main memory round-trips for working sets that fit in cache — database buffer pools, JVM heaps, and video frame buffers are the obvious beneficiaries. Larger caches translate directly to lower latency on cache-resident hot data.
• 125 W TDP: At 125 W, the 5218 sits within the standard Xeon Gold power envelope that the SR850 and SR860 thermal subsystems are designed around. No exotic cooling required — but note that a cooler is NOT included with this tray SKU. Budget for Lenovo-compatible heatsink hardware separately before ordering.
• LGA 3647 (Socket P) — Lenovo SR850/SR860 Validated: The Socket P pinout is physically compatible with other LGA 3647 boards, but Lenovo system firmware (UEFI/BMC) validates against a platform-specific compatibility list. This SKU is sourced as a Lenovo option part, which means it carries the firmware-compatibility assurance for SR850 and SR860 configurations — reducing risk of microcode or UEFI update conflicts that can surface with generic Intel tray CPUs installed in OEM servers.
• 2nd Gen Xeon Scalable (Cascade Lake) Architecture: Cascade Lake adds hardware-level mitigations for Spectre/Meltdown variants that were software-patched on Skylake-SP — meaning you recover most of the performance penalty those kernel patches impose on I/O-heavy workloads. For NVMe storage servers or network-intensive roles, the difference in observed throughput versus a patched 1st-gen Xeon is measurable.
• UPI Bus Interconnect: UPI (Ultra Path Interconnect) governs CPU-to-CPU communication in multi-socket SR850/SR860 configurations. The 5218's UPI implementation supports the high-bandwidth, low-latency inter-socket fabric needed when both sockets are populated — relevant if you're scaling to a four-processor SR850 build.
• 64-Bit Operating Modes / B1 Stepping: B1 stepping is the production-stable revision of Cascade Lake, incorporating all errata corrections from earlier silicon spins. For enterprise deployments that need long-term OS and hypervisor support, B1 is the revision you want — earlier steppings required workaround microcode that carried minor performance costs.
• 14 nm Lithography: Mature 14 nm process node means well-understood power leakage and thermal characteristics. Thermal management planning for the SR850/SR860 chassis is straightforward — no surprises at data-center inlet temperatures up to the platform's rated spec.
• Tray Packaging: Tray format means the processor ships without retail box or heatsink. This is normal for OEM server builds where the platform heatsink is ordered separately as a system component. Verify your SR850/SR860 heatsink part number against Lenovo's option matrix before installation.

Integration and Compatibility

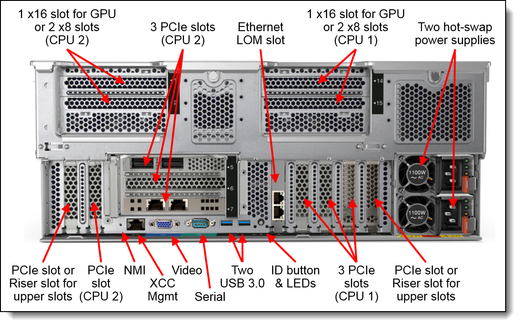

The 4XG7A14266 is explicitly validated for the Lenovo SR850 and SR860 server platforms. Both are 4-socket capable 2U systems targeting mission-critical enterprise workloads — virtualization at scale, in-memory databases, and high-throughput analytics. The Socket P (LGA 3647) form factor is shared across the broader Xeon Scalable ecosystem, but Lenovo's firmware ties processor support to its own option part qualification process. Installing this SKU ensures you remain within Lenovo's tested and supported configuration matrix, which is relevant for warranty coverage and firmware update eligibility.

For deployments pairing these servers with network video recorders or edge analytics platforms, the 5218's 32-thread count provides headroom for concurrent video transcoding, AI inference, and storage I/O without saturating the processor. Integrators running VMS platforms on SR850/SR860 infrastructure will find the 5218's core count and cache size sufficient for mid-to-large camera counts with server-side analytics enabled.

Memory configuration is governed by the SR850/SR860 platform spec, not the processor alone — consult the Lenovo system configuration guide for validated DIMM counts and speed grades when pairing with this CPU. The 5218 supports Intel Optane DC Persistent Memory (AEP) across the 2nd-Gen Scalable platform, which is relevant for in-memory database acceleration if your SR850/SR860 build targets that use case.

Frequently Asked Questions

Q: Which Lenovo servers is the 4XG7A14266 compatible with?

A: The 4XG7A14266 is validated for the Lenovo ThinkSystem SR850 and SR860 server platforms. These are 4-socket, 2U systems built on the LGA 3647 (Socket P) platform. While Socket P is physically shared across the Xeon Scalable ecosystem, this SKU is a Lenovo option part validated specifically for SR850 and SR860 firmware and configuration requirements.

Q: Does the 4XG7A14266 include a heatsink or cooler?

A: No. This is a tray-packaged CPU — no cooler is included. You will need to order a compatible Lenovo heatsink separately. Verify the correct heatsink option part number against Lenovo's SR850/SR860 configuration matrix before deploying.

Q: What is the base and turbo frequency of the Xeon Gold 5218?

A: The 5218 runs at 2.3 GHz base frequency and turbos up to 3.9 GHz under qualifying single-threaded or lightly-threaded loads via Intel Turbo Boost. The 1.6 GHz spread benefits workloads with mixed parallelism profiles.

Q: How many cores and threads does this processor provide?

A: The Xeon Gold 5218 provides 16 physical cores and 32 threads via Intel Hyper-Threading. This supports dense VM configurations and multi-threaded enterprise workloads without requiring a second CPU socket to be populated.

Q: What is the TDP and are there any special power or cooling requirements?

A: The 5218 has a 125 W TDP, which is within the standard Xeon Gold power envelope the SR850 and SR860 are designed to handle. No special power infrastructure is required beyond what the platform already supports, but ensure your data center cooling is sized for the full server load including memory and storage components.

Q: Is this a genuine, factory-new processor?

A: Yes. This is a factory-new tray-packaged processor sourced through distribution channels. It is not refurbished, pulls, or grey-market product.

Eden Phillips

The 4XG7A14266 is one of those option parts that sits at the practical sweet spot of the Xeon Gold 5218 lineup for SR850/SR860 builds — 16 cores at 125 W TDP means you're not burning headroom on a power-dense SKU, but you're getting enough thread count (32) to run meaningful VM consolidation without saturating the socket. The 3.9 GHz turbo headroom is real and useful for workloads that aren't fully parallelized.

Technical Highlights:

• 16C/32T at 2.3–3.9 GHz: The 1.6 GHz turbo spread makes this a genuinely flexible processor — database query engines and single-threaded application tiers see the high-frequency ceiling, while batch and parallel jobs use the full 32-thread width. Few mid-range Xeon Gold SKUs span this range this cleanly.
• 22 MB L3 Cache: For VMS server builds running large camera counts, the 22 MB L3 cache reduces memory bus pressure when video analytics and recording I/O overlap — frame buffer working sets that fit in cache don't stall on memory latency.
• B1 Stepping / Cascade Lake: B1 is the fully-corrected silicon revision for this processor family. Hardware-level speculative execution mitigations are built in — you avoid the measurable I/O throughput regression that software Meltdown patches impose on Skylake-SP predecessors in storage-heavy roles.

Deployment Considerations:

• This is a tray SKU — no heatsink included. Confirm your SR850/SR860 heatsink option part before the processor arrives on site; the server will not POST without proper cooling hardware seated correctly.
• Lenovo firmware on SR850/SR860 validates CPU option parts at boot. Installing non-Lenovo-option-part Xeon CPUs in these platforms can trigger UEFI warnings or prevent firmware updates — this SKU avoids that problem, but be aware of the constraint if mixing with non-option-part hardware in the same chassis.

For SR850/SR860 deployments acting as centralized VMS hosts — running Milestone XProtect, Genetec Security Center, or similar platforms with server-side analytics enabled — the 5218's 32 threads and 22 MB cache provide solid headroom for 64–100+ camera channel counts before the processor becomes a bottleneck. It is not the right choice if you need maximum per-core frequency for single-threaded workloads; for that profile, look toward higher-GHz Gold SKUs in the same platform family.
