Lenovo 21KX0021US ThinkPad P16V G2 Intel Core Ultra 7 155H Ecores Up to 3.80GHZ 24MB 16 1920 X 1200

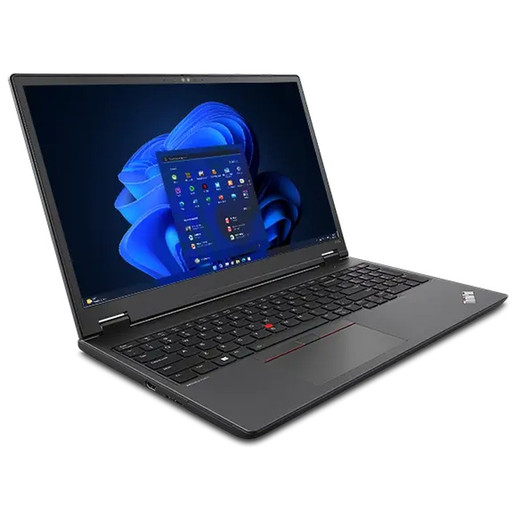

Lenovo 21KX0021US ThinkPad P16v G2 Mobile Workstation

Overview

The Lenovo ThinkPad P16v Gen 2 (21KX0021US) is a 16-inch clamshell mobile workstation built around Intel's Core Ultra 7 155H processor and NVIDIA RTX 1000 Ada Generation GPU — a pairing that covers professional CAD, security system design software, video analytics review, and light GPU-accelerated compute without requiring a desktop replacement chassis. At 8.30 lb it sits at the heavier end of portable, but the trade-off is a full-wattage GPU, a 16-inch 1920×1200 IPS panel, and ISV-workstation-grade thermals in a MIL-spec-tested ThinkPad chassis. If your field engineers need to run VMS client software, configure NVR deployments, or process recorded footage on-site, this platform handles it without throttling under sustained load.

Explore the broader Lenovo commercial and workstation catalog for complementary systems, docking stations, and accessories.

Key Features

• Intel Core Ultra 7 155H (up to 3.80 GHz E-cores, 24MB Cache): The hybrid architecture dedicates P-cores to single-threaded VMS client and configuration workloads while E-cores handle background tasks — antivirus, telemetry, sync — without stealing cycles from your primary application. The 24MB L3 cache keeps frequently accessed project files and map tiles resident, which matters when you are scrolling large site-plan layouts or switching between camera feeds in a live view grid.
• NVIDIA RTX 1000 Ada Generation, 6GB GDDR6: Ada Lovelace architecture brings hardware ray tracing and 3rd-gen Tensor cores to a thin 35W mobile envelope. For security integrators, the practical impact is smooth H.265/H.264 hardware decode across multi-stream VMS grids without leaning on the CPU, and enough VRAM headroom (6GB) to run video analytics inference models locally for demo or validation purposes. ISV-certified driver paths also matter here if you are running Autodesk, PTC Creo, or similar design tools for physical security infrastructure projects.
• 16.0-inch WUXGA IPS Panel, 1920×1200, 400 cd/m², 100% sRGB, 1200:1 Contrast: The 16:10 aspect ratio gives you roughly 10% more vertical real estate than a 16:9 panel of the same diagonal — useful when reviewing timeline footage in a VMS or working in a drawing tool where vertical canvas space is the limiting constraint. At 400 nits brightness with an anti-glare coating, the display remains usable in field environments with overhead lighting or partial outdoor ambient. The 100% sRGB gamut and 1200:1 contrast ratio are relevant for color-accurate forensic image review.
• 1×512GB M.2 2280 PCIe Gen4 TLC Opal SSD: PCIe Gen4 sequential reads land around 7,000 MB/s on typical NVMe Gen4 drives — fast enough that large recorded footage files or project archives open without perceptible lag. The Opal (TCG Opal 2.0) hardware encryption layer means the drive supports BitLocker without software-overhead encryption, which satisfies many enterprise security policies for endpoint data protection without a performance hit.
• 16.0GB System RAM: Sufficient for VMS client + browser + remote desktop sessions running concurrently. If your workflow involves running a local NVR management console, a browser-based configuration portal, and a remote session simultaneously, 16GB is workable but represents the floor — heavier analytics or virtualization workloads will push against this ceiling.
• 16.0-inch, 60Hz Refresh, IPS with LED Backlight: 60Hz is appropriate for this workstation use case — professional imaging and video review do not require high-refresh gaming panels, and staying at 60Hz preserves battery runtime under sustained display-heavy workloads.
• ABS + Polycarbonate Chassis, Clamshell Form Factor: ThinkPad P-series chassis materials are chosen for structural rigidity rather than premium aesthetics. The ABS/PC composite handles drop and flex stress better than thin magnesium-alloy ultrabook shells, which matters for systems that travel between job sites regularly. The clamshell form factor keeps the keyboard and display protected in a bag without requiring a sleeve.
• Bluetooth 5.1 / 5.3, Intel Wireless, PCIe + Ethernet Interfaces: Dual wireless standards and a wired Ethernet port cover both modern wireless peripherals and the hardwired network connections that enterprise IT environments often require for initial provisioning or high-bandwidth data transfer. PCIe interface support accommodates internal expansion consistent with the M.2 2280 SSD form factor confirmed in the spec data.

Integration and Compatibility

The 21KX0021US ships with Windows 11 Pro 64-bit, which is the baseline OS requirement for most commercial VMS platforms (Milestone XProtect, Genetec Security Center, Axis Camera Station, Hanwha WaveStation) and enterprise endpoint management systems (Intune, SCCM, Jamf for Windows). The RTX 1000 Ada supports NVIDIA's professional driver stack, which provides ISV certifications relevant if the system is also used for CAD or simulation alongside security infrastructure work.

If you are deploying this alongside network video recorders as a client workstation or mobile commissioning tool, verify your VMS vendor's GPU decode requirements — most modern platforms offload H.265 stream decoding to the GPU, and the 6GB VRAM on the RTX 1000 Ada supports multi-stream 4K decode without falling back to CPU.

For field deployments that require external display output to a customer's monitor during on-site presentations or system handoffs, confirm port configuration against your specific dock or adapter requirements — the Synnex structured data confirms PCIe and Ethernet interfaces; verify Thunderbolt or USB-C display output capability with the full Lenovo product specification sheet before committing to a dock purchase. Browse workstation accessories including docking stations and display adapters compatible with ThinkPad P-series systems.

The Opal-encrypted SSD pairs directly with Windows 11 Pro BitLocker for hardware-accelerated full-disk encryption — a common IT security requirement for mobile endpoints. No additional encryption software license is required. For teams evaluating mobile workstations for security operations or field engineering roles, this combination of hardware encryption and Pro OS is the minimum viable configuration most enterprise IT departments will approve for unescorted field deployment.

Frequently Asked Questions

Q: What is the weight and footprint of the 21KX0021US — will it fit in a standard laptop bag?

A: The ThinkPad P16v Gen 2 (21KX0021US) weighs 8.30 lb and measures 21.10 × 13.40 × 3.70 inches. This is a full-size 16-inch workstation chassis — it will fit in most 17-inch laptop bags but is too large for standard 15-inch sleeves. Factor the weight into field kit planning if engineers carry it all day.

Q: Does the 21KX0021US support hardware-accelerated H.265 video decode for VMS applications?

A: Yes. The NVIDIA RTX 1000 Ada Generation GPU includes dedicated hardware decode engines for H.265 (HEVC) and H.264. Most commercial VMS platforms will automatically offload multi-stream decode to the GPU, reducing CPU load during live view and playback sessions.

Q: Is the SSD in the 21KX0021US hardware-encrypted?

A: Yes. The 512GB M.2 2280 PCIe Gen4 SSD carries Opal (TCG Opal 2.0) hardware encryption, which enables BitLocker on Windows 11 Pro without software-layer overhead. This meets most enterprise endpoint security policies without requiring additional encryption software.

Q: What display resolution and aspect ratio does the 21KX0021US use?

A: The display is 1920×1200 (WUXGA) in a 16:10 aspect ratio on a 16-inch IPS panel. The 16:10 format provides more vertical screen space than 16:9 panels at the same diagonal, which benefits VMS timeline views, engineering drawings, and multi-application workflows.

Q: Is the 21KX0021US touchscreen-capable?

A: No. The 21KX0021US ships with a non-touch IPS panel. The anti-glare coating and 400 nit brightness are optimized for keyboard-and-mouse professional use rather than touch interaction.

Q: What operating system does the 21KX0021US ship with?

A: Windows 11 Pro 64-bit. This is the correct baseline for enterprise domain join, BitLocker, Hyper-V, and most commercial VMS and security management software compatibility requirements.

Karl Wilson

The 21KX0021US sits in a specific niche that is easy to misconfigure: it is not an ultrabook pushed into professional service, and it is not a true desktop-replacement dual-GPU machine. What it is, concretely, is a 35W-class NVIDIA Ada GPU in a 16-inch ThinkPad chassis with a Gen4 NVMe SSD and a calibrated 1200:1 IPS display — which happens to match exactly what a senior field integrator needs when commissioning a 64-camera site and needs to validate image quality, run the VMS client, and document the installation simultaneously on a single machine.

Technical Highlights:

• RTX 1000 Ada, 6GB GDDR6: Ada's hardware HEVC decode engine handles H.265 multi-stream without CPU involvement — on a 16-camera live view, the difference between GPU-decoded and CPU-decoded streams is measurable in both frame drop frequency and fan noise under sustained load.
• PCIe Gen4 Opal SSD (512GB): Gen4 sequential throughput (~7,000 MB/s class) means large exported footage clips or project backup archives transfer at speeds that don't become a bottleneck during handoff meetings. Opal hardware encryption eliminates the need for a separate software encryption license on the Windows 11 Pro endpoint.
• 16-inch WUXGA 16:10 IPS, 400 nit, Anti-Glare: At 1920×1200 the vertical resolution advantage over 1920×1080 is real in practice — VMS timeline and camera grid layouts that require scrolling on a 16:9 screen often fit without scrolling here, which matters during rapid incident review under time pressure.

Deployment Considerations:

• At 8.30 lb and 21.10 × 13.40 × 3.70 in, this system is not carry-on friendly for all-day field work without a dedicated bag — plan accordingly for team kit lists and travel configurations.
• 16GB RAM is the shipped configuration; for deployments where the system doubles as a local analytics server or runs multiple simultaneous VMs (e.g., VMS server + client during demo), evaluate whether the platform supports memory expansion before purchase, as 16GB represents the practical minimum for that workload profile.

The 21KX0021US is the right call for a security integration firm deploying a shared commissioning workstation that needs to handle VMS client, camera configuration interfaces, and site documentation tools concurrently — specifically where the RTX 1000 Ada's professional driver stack and hardware decode matter more than weight or battery life.
