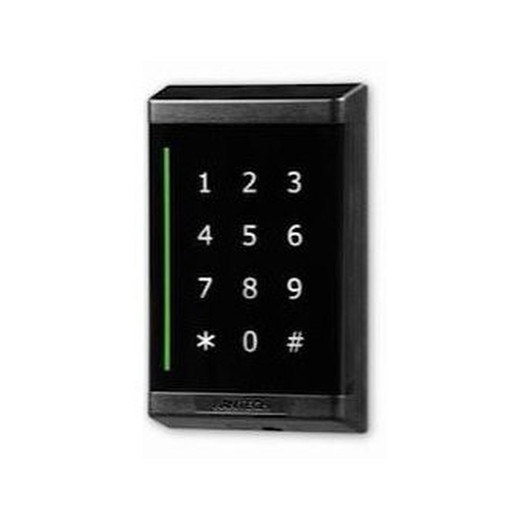

Kantech KT-SG-MT-KP2 Multi-Technology Reader with Keypad

The Kantech KT-SG-MT-KP2 is a Gen 2 multi-technology access control reader built to handle mixed-credential environments without forcing retrofit complexity or parallel-reader installations. It combines dual-frequency RFID/NFC reading (13.56 MHz and 125 kHz simultaneous operation) with an integrated keypad in a single-gang wall-mounted form factor, eliminating the need for separate PIN-entry devices and reducing both material cost and installation labor.

Key Features

• Dual-Frequency RFID/NFC Support (13.56 MHz and 125 kHz): Reads modern NFC standards—MIFARE Plus EV1, ISO/IEC 14443A, and ISO/IEC 14443B—alongside legacy proximity formats like HID and ioProx. This means you can deploy a single reader to support credentials issued years apart, avoiding the cost and footprint penalty of dual-reader installations during system migrations or facility consolidations.
• MIFARE Plus EV1 Compatibility: Supports next-generation encrypted credential protocols with mutual authentication, providing a forward-compatible upgrade path from legacy proximity systems. Particularly valuable for organizations that need to gradually transition credential populations without replacing readers mid-project.
• Integrated Keypad: Consolidates card/credential reading and PIN entry into one device, reducing electrical box installation requirements and component count. This cuts wiring labor and simplifies access control panel integration on both new builds and retrofits.
• Single-Gang Wall-Mounted Form Factor: Fits standard electrical boxes, keeping installation footprint minimal and blending into existing facility infrastructure without requiring oversized or custom enclosures.
• 125 kHz Legacy Format Support (ioProx/HID): Maintains backward compatibility with older proximity credential stocks, enabling phased credential upgrades rather than forced blanket replacements. A practical feature for large facilities or multi-site deployments where credential standardization happens incrementally.
• Reduced Installation Complexity: Consolidating multiple credential technologies and PIN entry into a single reader lowers material cost, shortens commissioning timelines, and reduces the engineering overhead for integrators managing retrofit or expansion projects.

Integration and Compatibility

The KT-SG-MT-KP2 integrates with Kantech access control systems and third-party controllers supporting standard credential readers. Its ability to simultaneously handle 13.56 MHz and 125 kHz credentials makes it especially useful in mixed-technology deployments where upgrading to a unified multi-technology reader would otherwise require parallel installation or selective replacement. This is critical for organizations managing legacy HID or ioProx infrastructure alongside emerging MIFARE or NFC rollouts—a common pattern in healthcare, government, education, and large corporate campuses.

Typical Deployment Scenarios

• Office buildings and corporate campuses upgrading from proximity-only systems to NFC or MIFARE without immediate replacement of all credentials.
• Educational institutions managing multiple campuses with inconsistent credential standards, requiring a single reader that honors multiple formats.
• Healthcare facilities with strict credential lifecycle policies where legacy proximity badges coexist with modern smart card issuance.
• Manufacturing and industrial facilities with long equipment lifecycles, where access control systems remain in service across multiple credential generations.
• Government and secure facilities maintaining backward compatibility during mandatory system transitions (e.g., FIPS-140-2 or NDAA-compliant credential upgrades).
• Retail and hospitality environments standardizing on single-reader installations to reduce hardware SKU complexity and maintenance overhead.

Frequently Asked Questions

Q: Does the KT-SG-MT-KP2 read both MIFARE and HID proximity cards simultaneously?

A: Yes. The reader operates on both 13.56 MHz (for MIFARE Plus EV1, ISO/IEC 14443A/B) and 125 kHz (for HID and ioProx formats) at the same time, so a cardholder can present either credential type without reader reconfiguration or switching between devices.

Q: Can I use the KT-SG-MT-KP2 to replace two separate readers (one for proximity, one for NFC)?

A: Yes. The integrated dual-frequency design and single-gang form factor are specifically intended to consolidate multi-technology reading into one device, reducing installation cost and footprint compared to side-by-side reader installations.

Q: Is the integrated keypad suitable for PIN-only entry, or does it require a card/credential read?

A: The keypad is integrated to support PIN entry alongside credential reading, enabling multi-factor access control scenarios. Consult the datasheet or your system integrator for specific PIN-only or card-then-PIN authentication modes supported by your access control controller.

Q: Does the KT-SG-MT-KP2 fit in a standard electrical box?

A: Yes. The single-gang form factor is designed to fit standard wall-mounted electrical boxes, making retrofit installations straightforward without custom enclosures or oversized mounting hardware.

Q: What's the typical installation time for the KT-SG-MT-KP2 compared to dual-reader setups?

A: Because you're wiring one device instead of two, installation labor is reduced. Exact time savings depend on your electrical and access control infrastructure, but single-reader consolidation typically shortens commissioning by 20–30% per door.

Ted Perry

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Kantech KT-SG-MT-KP2 (often searched as KT SG MT KP2) directly addresses one of the most painful decision points in access control retrofit and expansion: whether to install parallel readers to support legacy and modern credentials, or force a wholesale credential replacement. By running 13.56 MHz and 125 kHz simultaneously in a single-gang form factor, the KT-SG-MT-KP2 eliminates that false choice and cuts both hardware cost and installation labor—a real lever when you're deploying across multiple doors or campuses.

Technical Highlights:

• Simultaneous Dual-Frequency Operation (13.56 MHz + 125 kHz): No reader switching or credential detection logic needed. HID proximity, ioProx, MIFARE, and ISO14443 all work in parallel. For a 50-door retrofit where you have mixed credential populations, this saves one reader per opening and eliminates the wiring complexity of dual-reader installations.
• MIFARE Plus EV1 Encryption & Mutual Authentication: Newer than legacy ioProx (which uses no encryption), MIFARE Plus delivers cryptographic strength closer to modern smart card standards. Matters for organizations facing FIPS-140-2 or NIST SP 800-73 credential compliance in the next 3–5 years.
• Integrated Keypad: Consolidates PIN entry into one device. Fewer wires, one electrical termination, one reader to troubleshoot. In high-density deployments (hospital, data center, secure facility), this simplifies commissioning and reduces points of failure.

Deployment Considerations:

• Verify your access control controller supports simultaneous dual-frequency reads and multi-factor (card + PIN) workflows—not all panel firmware offerings are equal. Test with your integrator before specifying across dozens of doors.
• Keypad integration assumes the controller can handle PIN credential paired with card credential on the same reader. Some legacy panel configurations expect PIN and card on separate readers—a gotcha to confirm early in design.

The KT-SG-MT-KP2 is the right choice for any migration or mixed-credential environment where avoiding dual-reader complexity and cost is a priority. For organizations rolling out new single-technology systems (pure MIFARE or pure NFC), a simpler, lower-cost single-frequency reader may be sufficient—discuss with your integrator.
