Panduit ESV6-ESV8-Q Step-Down Butt Splice Connector
Overview

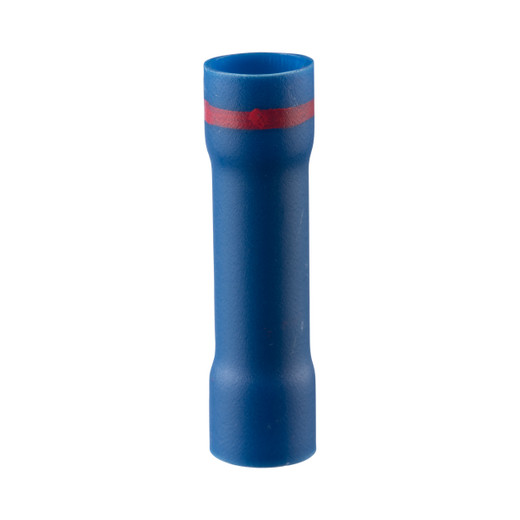

The Panduit ESV6-ESV8-Q is a contractor-grade, vinyl-insulated step-down butt splice from Panduit's StrongHold line — purpose-built for joining or extending two conductors of different gauges without a junction box or additional hardware. It bridges 8 AWG to 6 AWG solid or stranded wire in a single crimp, making it a practical solution for field repairs, panel extensions, and branch circuit modifications where wire gauges change between runs. With a 1.77-inch overall length and a tinned barrel finish, the ESV6-ESV8-Q handles the mechanical and electrical demands of general-purpose wire termination work in commercial and industrial settings. Sold in packs of 25, it suits technicians who need job-lot quantities without over-ordering.
Key Features
- 8-to-6 AWG Step-Down Capability: Accepts one 8 AWG conductor on one end and one 6 AWG conductor on the other in a single splice body — eliminates the need for pigtails or intermediate wire nuts when transitioning gauge mid-run. Correct for branch circuits where load calculations require a larger conductor as you approach the panel.
- Vinyl Insulation: The full-barrel vinyl sleeve provides electrical insulation after crimping, reducing the risk of incidental contact in crowded conduit bodies or wire troughs. Vinyl is cost-effective for dry and protected wet-location applications; it handles the temperature ranges typical of commercial panel and cabinet work without becoming brittle.
- Tinned Barrel Finish: The tinned copper barrel resists oxidation at the crimp interface — an important factor in environments with humidity cycling (warehouses, parking structures, rooftop AV/security enclosures) where an untreated barrel can develop resistance over time and generate heat under load.
- cULus Listed: Meeting cULus standards means the splice has been independently tested and listed for safety in both US and Canadian installations. On commercial projects where the AHJ requires listed components throughout, the ESV6-ESV8-Q satisfies that requirement without needing a variance or field engineering sign-off.
- 1.77-Inch Overall Length: Compact enough to fit inside standard junction boxes and wire troughs without crowding adjacent terminations. When you're working inside an IP camera junction box or a small access control enclosure, connector length matters — 1.77 inches clears most standard box depths.
- 25-Per-Pack Quantity: Packaged in quantities of 25 (with 1,000-piece carton availability), the ESV6-ESV8-Q suits both single-job field kits and stocking orders for shops running recurring commercial or security integration work. Ordering by the 25-pack keeps van stock lean; the 1,000-piece carton covers a full project material pull.
- StrongHold Sub-Brand: Panduit's StrongHold designation marks connectors built to contractor-grade dimensional and material tolerances — consistent crimp geometry across the pack matters when a technician is working fast and can't inspect every termination individually.
Integration & Compatibility
The ESV6-ESV8-Q (often searched as ESV6 ESV8 Q) is compatible with any standard insulated-barrel butt splice crimp tool designed for vinyl-insulated connectors in the 8–6 AWG range — confirm your tool's die set matches the barrel diameter before crimping. Panduit lists TV6-TV8 as a cross-reference competitor part, so existing installations specified to that part number can substitute the ESV6-ESV8-Q directly. This splice is appropriate for solid or stranded conductors; verify conductor prep (strip length, no nicked strands) before insertion. For wire management accessories and complementary termination hardware, browse the full Panduit catalog. Use in dry or protected wet locations per the listed application range; consult the installation standard and local code for any exposed or direct-burial application.
What's in the Box
- 25x Panduit ESV6-ESV8-Q StrongHold vinyl insulated step-down butt splice connectors (8–6 AWG)
Frequently Asked Questions
Q: What wire gauges does the ESV6-ESV8-Q accept?
A: The ESV6-ESV8-Q is a step-down butt splice rated for 8 AWG on one end and 6 AWG on the other. It accepts both solid and stranded conductors in those gauges.
Q: How many connectors come in a package?
A: Each retail pack contains 25 connectors. A full carton contains 1,000 pieces for larger project or stocking orders.
Q: Is the ESV6-ESV8-Q cULus listed?
A: Yes. The ESV6-ESV8-Q meets cULus standards, making it suitable for listed-component requirements on US and Canadian commercial projects.
Q: What is the overall length of the ESV6-ESV8-Q?
A: The overall length is 1.77 inches, compact enough for use inside standard junction boxes and wire management enclosures.
Q: What is the cross-reference or equivalent part number for the ESV6-ESV8-Q?
A: Panduit lists TV6-TV8 as the competitor cross-reference. The ESV6-ESV8-Q is a direct substitute for installations specified to that part number.
Q: What crimp tool is required for the ESV6-ESV8-Q?
A: Use a standard insulated-barrel butt splice crimp tool with a die set matched to the 8–6 AWG vinyl barrel diameter. Consult Panduit's tooling selection guide for the recommended die specification.
The ESV6-ESV8-Q is a part I reach for when a wire run changes gauge mid-circuit and there's no room or budget for an additional junction box. The 1.77-inch body fits cleanly inside most commercial wire troughs and camera back-boxes, and the tinned barrel gives you a stable crimp interface even in enclosures that see temperature swings — something a plain copper barrel can't match long-term in outdoor security cabinet applications.
Technical Highlights:
- Tinned Barrel: Oxidation resistance at the crimp point is the reason tinned barrels exist — in a humid or thermally cycling enclosure, an untreated barrel develops micro-oxidation that increases contact resistance and generates localized heat over months of service. The ESV6-ESV8-Q addresses that with a tin coating from the factory.
- cULus Listing: On any permitted commercial installation in the US or Canada, the AHJ will ask for listed components at every termination point. Having cULus on the label means you're not arguing with the inspector on rough-in day.
- 25-Pack / 1,000-Piece Carton: The 25-pack is the right field quantity — enough to cover a full camera or access control run without carrying dead weight. If you're stocking a shop or kitting a large project, the 1,000-piece carton keeps unit cost down without forcing over-commitment on a single SKU.
Deployment Considerations:
- Confirm your crimp tool die set is matched to the 8–6 AWG vinyl barrel before you pull connectors out of the bag — a mismatched die produces a cold crimp that passes visual inspection but fails under vibration or thermal cycling.
- The vinyl insulation is rated for general-purpose use; for direct-burial or continuous wet-location exposure, verify local code and consider a heat-shrink or gel-filled splice instead. The ESV6-ESV8-Q is not rated for those conditions based on available evidence.
This connector is the right call for security integration panel work, commercial lighting branch circuit extensions, and access control conduit runs where the wire gauge steps down between the panel and the device — particularly in retrofit jobs where the existing rough-in used 8 AWG and new devices terminate at 6 AWG.
