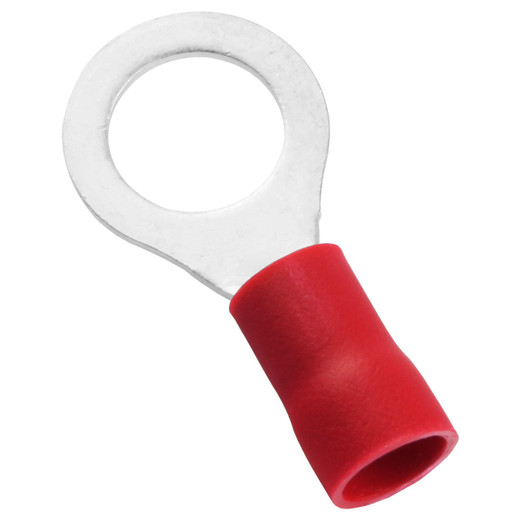

Panduit EV8-12R-Q StrongHold 8 AWG Ring Terminal
The Panduit EV8-12R-Q is a vinyl-insulated ring terminal engineered for 8 AWG wire and #12 (1/2") stud connections in commercial power, access control, and security system installations. Part of Panduit's StrongHold line, this terminal delivers UL- and CSA-listed performance for battery banks, UPS tie-ins, power distribution blocks, and grounding points where code compliance and long-term reliability matter. The funnel-entry barrel and rolled edges simplify wire insertion and reduce strand damage during crimping, while the zinc-plated copper construction resists corrosion in equipment rooms and outdoor enclosures.
Key Features
- 8 AWG wire capacity with #12 (1/2") stud hole for power-distribution and battery terminations
- Vinyl insulation rated for 600V applications, color-coded for quick wire-gauge identification
- Zinc-plated copper barrel and tongue for corrosion resistance in humid or outdoor environments
- UL Listed 587H (E52164) and CSA Certified (LR31212) for NEC and CEC compliance
- Funnel-entry design and rolled edges reduce strand cut-off during crimping
- 25-piece package quantity for mid-size projects; 2,500-piece cartons available for volume installations
- Direct cross-reference to TV8-12R competitor part for retrofit and spec-match scenarios
Security and access-control integrators rely on the EV8-12R-Q for terminating 8 AWG power feeders to control panels, magnetic lock power supplies, and battery backup systems. The 1/2" stud hole fits standard terminal blocks on Altronix, Securitron, and RBH power supplies, as well as battery lugs on 12V/24V SLA and LiFePO4 packs. The vinyl insulation withstands typical equipment-room temperatures and provides a positive grip surface during installation in tight enclosures. Unlike bare or heat-shrink terminals, the factory insulation eliminates the risk of accidental shorts when adjacent terminals are closely spaced on multi-circuit distribution blocks.
The zinc-plated finish addresses the long-term corrosion risk in basement mechanical rooms, rooftop equipment shelters, and coastal installations where humidity and salt air degrade unprotected copper. Panduit's plating process meets the thickness and adhesion standards required for UL and CSA recognition, ensuring that the terminal maintains low contact resistance over years of service. The 1.64" overall length and 0.79" width (20.1 mm) fit within standard wire-management channels and leave clearance for adjacent terminals on crowded buss bars. For integrators working to NEC Article 250 grounding requirements or CEC Section 10 bonding rules, the EV8-12R-Q provides a listed connection method that inspectors recognize and accept without question.
Each 25-piece package includes terminals individually inspected for burrs, insulation voids, and dimensional tolerances. The StrongHold line uses automated quality gates that reject any terminal with a crimp-barrel inside diameter outside the 8 AWG wire-size window, preventing the weak crimps and pullout failures common with generic offshore terminals. Integrators stocking the EV8-12R-Q gain a listed, spec-grade ring terminal that matches the reliability standard of the panels, locks, and power supplies it connects — no debugging callbacks for loose battery leads or corroded stud connections six months after commissioning.
