Type:

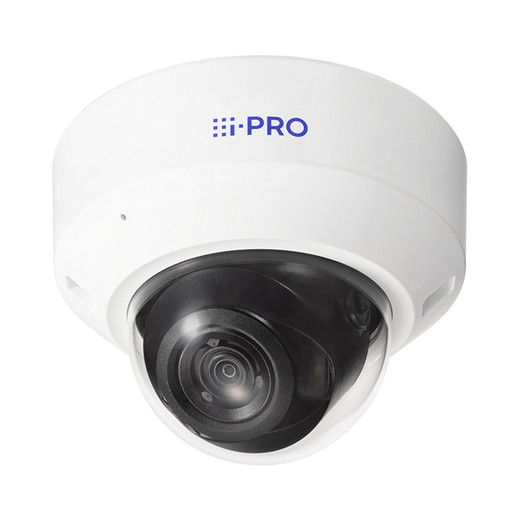

2MP Indoor IR Dome Camera
Features:
IR
Features:
Adjustable Angle
Frame Rate:
Variable
Sensor Type:
Approx. 1/2.8 type CMOS image sensor
Minimum Illumination:
Color: 0.1 lx, B&W: 0.04 lx
White Balance:
ATW1/ ATW2/ AWC
Maximum Shutter:
1/10000 s to 16/30 s
Intelligent Auto:
On / Off
Super Dynamic:
On / Off, the level can be set in the range of 0 to 31.
Dynamic Range:
Max.120 dB (Super Dynamic : On, Level: 31)
Back Light Compensation/High Light Compensation:
BLC/HLC/Off
Fog Compensation:
Fog Compensation 0-8
Maximum Gain (AGC:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off / On / Auto
IR LED Light:
40m (High), 30m (Medium)
Digital Noise Reduction:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On / Off, 4 areas available
Scene Change Detection(SCD:
On / Off, 1 areas available
Privacy Zone:
On / Off (up to 8 zones available)
VIQS:
On / Off (up to 8 zones available)
Image Rotation:
0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD:
On/Off, 20 char max
Optical Zoom:
2.5x optical zoom, motorized
Extra optical zoom:
2.5x - 3.8x (when resolution is 1280x720)
Focal Length:
2.9 mm – 7.3 mm{1/8inches-9/32inches}
Angular Field of View:
42-97° horizontal (16:9), 31-72° (4:3)
Maximum Aperture Ratio:
1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focus Range:
1 m {39-3/8 inches} – ∞
Detect (25ppm / 8ppf:
Wide: 34.0 m /111.5 ft, Tele: 100.0 m / 328.2 ft
Observe (62.5ppm / 19ppf:
Wide: 13.6 m / 44.6 ft, Tele: 40.0 m / 131.3 ft
Recognize (125ppm / 38ppf:
Wide: 6.8 m / 22.3 ft, Tele: 20.0 m / 65.6 ft
Identify (250ppm / 76ppf:
Wide: 3.4 m / 11.1 ft, Tele: 10.0 m / 32.8 ft
Adjusting Angle:
Pan ±180°, Tilt -30° to +85°, Yaw ±100°
Camera Control:
Brightness
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser:
Microsoft Edge, Firefox, Google Chrome *1
Network IF:
10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/H.264:
1920×1080, 1280×720, 640×360, 320×180
H.265/H.264:
H.265/H.264, 30fps max
JPEG:
[Image Quality]; 10 steps
Smart Coding:
GOP control: On/Off; Frame rate control: On/Off
Audio Compression:
G.726 32kbps, G.711 64kbps, AAC-LC 64-128kbps
Supported Protocol:
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,; DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP; IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP,DNS, DDNS,; NTP, SNMPv1/v2/v3, UP
No. of Simultaneous Users:
Up to 14 users (Depends on network conditions)
Secure:
HTTPS, IEEE 802.1X, Digest auth, Brute-force protection
SDXC/SDHC/SD Memory Card (Option) *3:
SDXC/SDHC/SD up to 512GB
Mobile Terminal Compatibility:
iPad, iPhone, AndroidTM terminals
ONVIF® Profile:
G / S / T
Alarm Source:
VMD alarm, SCD alarm, Command alarm
Alarm Actions:
Email, HTTP, TCP notification, SD recording
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Power Source and Power Consumption:
PoE (802.3af) or DC48V, 5.8W
Ambient Operating Temperature:
-10 to +50°C (0°C power on)
Ambient Operating Humidity:
10 to 90 % (no condensation)
Dimensions:
ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)}; Dome radius 40 mm {1-9/16 inches}
Mass (Approx:
Approx. 350 g {0.77 lbs}
Finish:
ABS resin/acrylic dome, white
Product Type:
Dome
Connectivity:
Wired
Night Vision:
IR
Power Type:
PoE
PoE Class:
2
Form Factor:
Dome
Compatibility:
ONVIF
Resolution:
2MP
Video Compression:
H.265, H.264
Audio Support:
Yes
IR Distance:
40m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
HTTPS Encryption:
Yes
Operating System:
Android
Lens Type:
Motorized Varifocal
Housing Color:
White
resolution:
2 MP
poe_power:
PoE (802.3af)
ir_lowlight:
IR
compression:
H.265; H.264
onvif:
Yes
audio:
Built-in mic
analytics:
VMD
lens_focal_length:
Varifocal (5x optical zoom)
mount_type:
Wall; Rack
Color:
/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
Camera:
Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)
Audio:
Built-in microphone
Operating_Temp:
-10°C to +50°C (14°F to 122°F)
Wattage:
5.8W
Length:
40 Meter
Compatible With:
indoor
PoE:
PoE
PoE_Power:
PoE 802.3af
WDR:
120 dB Super Dynamic
IR_Lowlight:
Built-in IR LED; 40m range; 0 lx (IR on, B/W)
Analytics:
VMD (4 areas); Scene Change Detection
Lens:
Varifocal 5x motorized zoom (2.9–7.3 mm)
Form_Factor:
Dome
Max_FPS:
30 fps
IR_Range:
40m (30IRE); 30m (50IRE)
Sensor_Size:
1/2.8"
Min_Illumination:
0.006 lx (B/W, 16/30s, IR on); 0.1 lx (color, 50IRE)
Certifications:
NDAA-compliant
VMS_Compatibility:
ONVIF Profile G/S/T
PoE_Wattage:
5.8W
Audio:
Audio input; Built-in mic
Operating_Temp:
-10 °C to +50 °C (14 °F to 122 °F)
Length:
40m
Compatible With:
spaces
Mount Style:
rack mount
PoE:
802.3af
WDR:
Super Dynamic 120 dB
IR_Lowlight:
IR LED; 40m @ 30IRE; 30m @ 50IRE
Analytics:
VMD (Video Motion Detection); Scene Change Detection
Lens:
Varifocal 2.9–7.3 mm (5x motorized zoom/focus)
IR_Range:
40m @ 30IRE; 30m @ 50IRE
Sensor_Size:
1/2.8" CMOS
Min_Illumination:
0.006 lx (B/W, IR on, 16/30s); 0.1 lx (Color, 50IRE)
Brand:
i-PRO
MPN:
WV-U21300-V2L
Power:
8W
