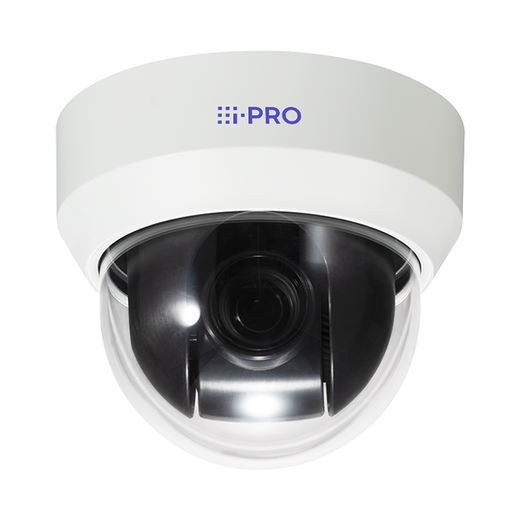

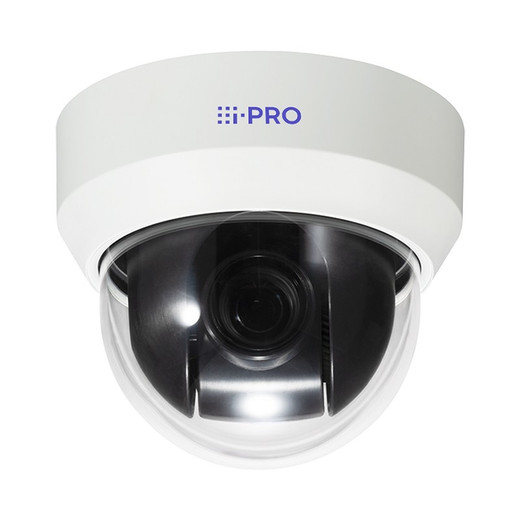

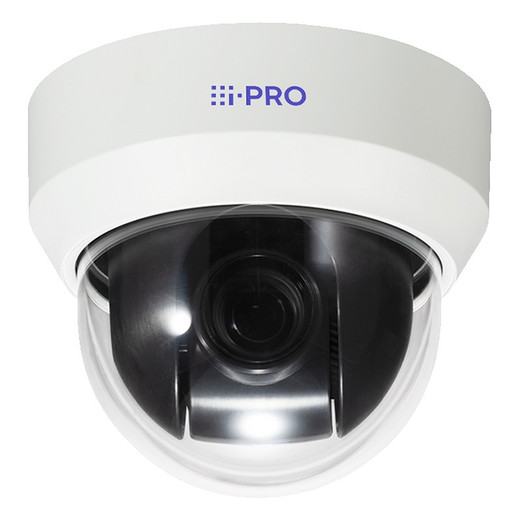

i-PRO WV-S65301-Z1 2MP Outdoor AI PTZ Dome Camera
The i-PRO WV-S65301-Z1 is a motorized PTZ (pan-tilt-zoom) dome camera designed for outdoor enterprise surveillance where field-of-view flexibility and intelligent video analysis matter. Built on a 1/2.8" CMOS sensor with 10× optical zoom, it delivers 2MP resolution (1920×1080) across a motorized 4.7–47mm lens range, meaning you adjust framing remotely without repositioning hardware. The ruggedized aluminum die-cast housing with polycarbonate dome achieves IP66 weather sealing (direct rain and dust jets won't penetrate) and IK10 vandal resistance (withstands intentional impact), with NEMA 4X certification for corrosive salt-air environments. Integrated AI-powered analytics enable on-camera facial recognition and behavioral event detection, reducing false alarms and bandwidth waste from redundant clips sent to the NVR.
Key Features
- 10× Optical Zoom with Motorized Pan-Tilt: The 4.7–47mm lens range lets operators zoom from wide perimeter coverage to facial detail without losing image quality — no digital zoom artifacts. Pan covers 360° endlessly; tilt adjusts -20° to +90°, so you cover vertical transitions from ground to roofline.
- Extreme Low-Light Sensitivity: Delivers color video at 0.011 lux and monochrome at 0.0004 lux with 144 dB dynamic range. Translation: parking lots, dock areas, and perimeter fencing remain visible at dusk and night without supplemental floodlights, reducing infrastructure cost and maintenance.
- AI-Powered Behavioral Analytics: Integrated Intelligent Auto AI engine detects facial features, crowd behavior, and anomalies on the edge device itself. Alerts fire only for genuine events, not shadows or wind-blown debris — a practical reduction in SOC review burden across 24/7 monitoring.
- H.265 Compression with H.264 and MJPEG Fallback: H.265 cuts bitrate roughly 40–50% versus H.264 on the same scene, meaning less NVR storage consumption and network congestion on multi-camera deployments. MJPEG fallback ensures compatibility with older VMS platforms that predate H.265 support.
- PoE+ Powered, No Separate Supply: Draws Class 0 power (under 13W typical) from IEEE 802.3at PoE+, eliminating need for wall-mount transformers. Single Ethernet cable delivers both power and video — simpler conduit runs and fewer failure points on pole or wall mounts.
- microSDXC Edge Recording up to 256 GB: Local storage on the camera itself handles short-term backup and motion-triggered clips if the network or NVR is temporarily unavailable. Useful for validating incidents before allocating centralized storage.
- Built-In IR with Automatic Day/Night Mode: 1.5m infrared illumination with automatic sensor switching ensures visibility transitions smoothly from daylight to darkness. Image stabilization compensates for vibration on lightweight mounts.
- Enterprise Security and Compliance: FIPS 140-2 Level 3 secure element, signed firmware, HTTPS encryption, and NDAA Section 889 compliance support regulated deployments in government contracting, utilities, and defense-adjacent facilities.
- ONVIF Profile Support: Standards-based API allows integration with any ONVIF-compliant VMS (Milestone, Genetec, Axis Camera Station, etc.), avoiding vendor lock-in and simplifying multi-brand surveillance systems.
- Two-Way Audio: Built-in microphone and speaker enable remote announcements or situational queries without separate intercom hardware.
- Compact Dome Form Factor: 165 mm diameter × 139 mm height, 1.6 kg total weight — discreet profile on bracket mounts without the bulk of larger box cameras or speed domes.
Integration and Compatibility
The WV-S65301-Z1 integrates with any ONVIF Profile S/T/G-compatible VMS platform via 10Base-T / 100Base-TX Ethernet. Android-based OS supports third-party ACAP (Application Development Platform) apps for custom analytics if standard AI features don't match your use case. Firmware is signed and validated at boot, preventing unauthorized code injection — a requirement for FIPS and NDAA environments. Audio I/O and microSD expansion support both archival workflows and real-time alerting scenarios common in critical infrastructure and campus security.
Typical Deployments
Perimeter fencing around utility substations or industrial yards, parking structure entries, transportation hubs (airport kerb, rail platform overpasses), and campus quad monitoring where motorized zoom lets a single camera cover areas that would otherwise require 2–3 fixed lenses. The 0.0004 lux monochrome capability is particularly valuable for unlit rural infrastructure where lighting retrofit is costly or prohibited. AI facial recognition on the edge supports access control verification and post-event forensics without streaming raw video off-site.
When to Choose a Different Model
If you need higher resolution for distant facial detail, consider a 4MP or 5MP variant in the i-PRO PTZ line. If the surveillance area is indoors or under permanent roof, a non-IP66 indoor PTZ will lower cost. If pan-tilt-zoom is not required and focal length is fixed, a stationary i-PRO IP dome camera will reduce power consumption and complexity.
What's in the Box
The WV-S65301-Z1 is sold as a camera head only. No mounting bracket, cable, or power supply is included — you provision these separately based on your installation environment (wall, pendant, or pole mount) and existing PoE infrastructure.
Frequently Asked Questions
Q: Is the WV-S65301-Z1 NDAA Section 889 compliant?
A: Yes. The camera meets NDAA Section 889 requirements for federal contracting and is signed firmware with FIPS 140-2 Level 3 secure element, supporting deployment in regulated government and critical infrastructure environments.
Q: What is the maximum IR illumination range?
A: The built-in IR provides approximately 1.5 meters of illumination range. This covers near-field detail at the camera mount point. For wider night perimeter coverage, external IR floodlights or higher-lux environments are recommended.
Q: Does the WV-S65301-Z1 work with Milestone XProtect or Genetec Security Center?
A: Yes. The camera is ONVIF Profile S/T/G compatible, meaning it integrates with any ONVIF-certified VMS including Milestone XProtect, Genetec Security Center, and Axis Camera Station. Integration is standard; no custom drivers are needed.
Q: What is the power consumption?
A: The WV-S65301-Z1 draws Class 0 PoE+ (under 13W typical), allowing it to operate on standard 802.3at PoE+ switches without dedicated power supplies or injectors. Check your switch's total power budget if deploying multiple cameras.
Q: Can I store video locally on the camera?
A: Yes. A microSDXC card slot supports up to 256 GB of on-camera storage for edge recording and backup. Useful for motion-triggered clips or temporary buffering if the NVR is unavailable.
Q: What compression formats does it support?
A: H.265 (primary), H.264, and MJPEG. H.265 reduces bitrate and storage roughly 40–50% versus H.264 on comparable scenes, making it ideal for long-term 24/7 recording. MJPEG fallback ensures compatibility with legacy VMS systems.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-S65301-Z1 sits in a practical middle ground for outdoor PTZ deployments. The 10× optical zoom with AI-driven facial recognition on the edge lets a single motorized camera replace 2–3 fixed turrets covering the same perimeter. The real differentiator is the 0.0004 lux monochrome performance combined with 144 dB dynamic range — that extreme sensitivity to light means your operators don't default to full-brightness fixed floodlighting, which is energy-intensive and creates blind spots from glare.
Technical Highlights:
- 10× Motorized Zoom (4.7–47mm) with Pan/Tilt: Remote field-of-view adjustment eliminates manual refocusing trips to the pole or bracket. Pan 360° continuously; tilt -20° to +90° covers from ground-level detail to overhead infrastructure in a single mount point.
- H.265 Compression: 40–50% bitrate reduction vs. H.264 translates to real storage savings on 24/7 multi-camera recorders. On a 500-camera deployment, that's measurable NVR capacity and network trunk bandwidth.
- 0.0004 Lux Monochrome + 1.5m IR: Parking structures, dock yards, and dark perimeter zones stay visible without external floods. Reduces operational overhead for lighting maintenance and energy billing.
- AI Behavioral Analytics On-Camera: Facial and crowd detection run locally, not streamed raw to a central analytics server. Fewer false alerts, lower bandwidth waste, faster incident response.
Deployment Considerations:
- IR illumination is 1.5m effective range — adequate for immediate zoom-in detail but not full-perimeter distance. Pair with external LED flood if you need 30m+ night visibility across wide grounds.
- 10× optical zoom is motorized but not fast — expect 3–5 seconds from wide to tele. If you need rapid tracking or response to moving threats, a higher-end 30x+ speed dome may be necessary.
- PoE+ power draw is light, but confirm your switch has Class 4 or higher power budget per port if stacking multiple PTZ cameras on the same infrastructure.
Position this camera in utility perimeter fencing, transportation hub overpasses, or campus quad coverage where motorized flexibility and low-light capability reduce the need for multiple fixed lenses or external lighting retrofits. The NDAA compliance and signed firmware make it defensible in regulated environments.
