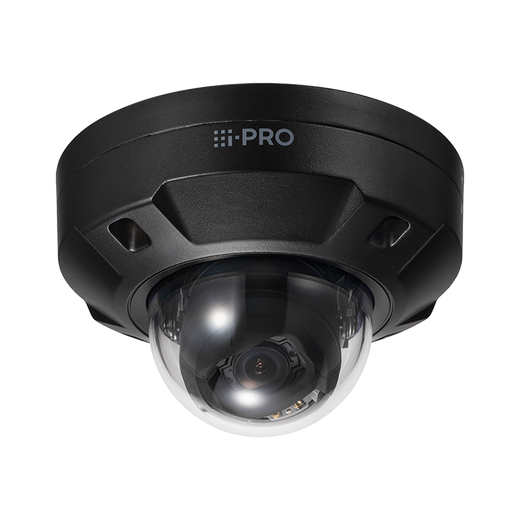

i-PRO WV-S25700-V2LN1 4K Outdoor Vandal-Resistant Dome Camera

i-PRO WV-S25700-V2LN1 4K Outdoor Vandal-Resistant Dome Camera

The i-PRO WV-S25700-V2LN1 is a 4K outdoor surveillance dome engineered for high-security deployments in hostile environments. Built on i-PRO's S-series platform, it combines 4K UHD imaging, integrated facial recognition AI, IK10 vandal protection, and enterprise-grade encryption to deliver comprehensive situational awareness for critical infrastructure, transportation hubs, campus perimeters, and outdoor access points. This is a systems-integration workhorse: designed to operate standalone or as part of a larger network video recorder infrastructure.

Key Features

• 4K UHD Resolution (3840 x 2160): A 1/1.8-inch CMOS sensor captures full-resolution 4K at standard frame rates. This translates to sharper forensic review—facial detail, license plates, and identity markers remain readable even when zooming into archived footage. For outdoor deployments covering large areas (parking lots, terminal entrances, perimeter fencing), the extra resolution means you can identify individuals at meaningful distances without sacrificing coverage area.
• Integrated Facial Recognition AI: On-board processor executes facial recognition and supports multiple AI applications simultaneously without offloading to an external server. Real benefit: reduced network bandwidth overhead, lower latency for real-time threat detection, and no reliance on a centralized analytics pipeline. Useful when you need decision-speed alerting or when bandwidth to a central VMS is constrained.
• IK10 Vandal-Resistant Dome: Polycarbonate dome with aluminum die-cast body and stainless steel hardware. IK10 rating means the camera survives a 5kg steel ball dropped from 1.25 meters—relevant for high-traffic outdoor areas, neighborhoods with security concerns, or installations where casual impact is a risk. The aluminum and stainless construction also resists corrosion, extending service life in salt-spray or chemically aggressive environments.
• IP66 and NEMA 4X Environmental Protection: Dust-tight and able to withstand direct water jets. Not rated for full submersion (that requires IP67), but IP66 handles rain, washdown spray, and airborne dust without compromising the sensor or electronics. Deploy this on coastal properties, in agricultural settings, or industrial yards without worrying about moisture ingress or salt corrosion.
• H.265 Compression with H.264 and MJPEG Fallback: H.265 cuts storage and bandwidth requirements roughly 40–60% compared to H.264, depending on scene complexity. On a 24/7 outdoor deployment with multiple 4K cameras, this translates to real savings in NVR storage capacity and network switch utilization. Falls back to H.264 or MJPEG for compatibility with legacy systems or low-bandwidth failover scenarios.
• 70-Meter IR Illumination (850nm): Integrated LEDs extend night vision to approximately 230 feet. Day/Night mode switches automatically based on ambient light. Sufficient for perimeter fencing, parking lot coverage, and outdoor access points. Beyond 70 meters, expect reduced contrast and detail; for longer ranges, consider a supplementary external lighting solution or a higher-powered IR variant from the i-PRO catalog.
• 2.0x Motorized Varifocal Lens (4.3–8.6mm): Motorized zoom allows field-of-view adjustment from approximately 110° to 55° without losing resolution or repositioning the camera after installation. Useful when coverage requirements shift or when you need to dial in framing during commissioning. No additional lens purchase required.
• PoE Power (802.3af Class 0, under 13W): Single cable installation—no separate 12V supply needed. Draws under 13W, so it won't strain a standard 802.3af PoE switch (which delivers 15.4W per port). Reduces installation labor, simplifies wiring, and eliminates a separate power infrastructure concern. Standard managed PoE switches support this without special provisioning.
• Two-Way Audio: Built-in microphone and speaker enable real-time communication. Useful for access control zones, parking areas, or perimeter challenges where you need to deter an intruder or coordinate with personnel without dispatching security staff on-site.
• HTTPS Encryption and Signed Firmware: Enterprise-grade security prevents tampering and eavesdropping on camera streams. Signed firmware ensures that only authorized updates can run on the device. ONVIF compliance enables integration with any third-party IP camera management system without proprietary software lock-in.
• microSD Card Slot: Local edge storage up to microSD capacity supports offline clip export and redundant recording in case of network failure. Useful for remote installations where centralized NVR storage is limited or when you need a quick forensic export without pulling recorded segments from a large archive.

Integration and Compatibility

The WV-S25700-V2LN1 integrates with any ONVIF-compliant video management system (VMS)—Milestone XProtect, Genetec Security Center, Axis Camera Station, or custom solutions. Supports standard video codecs (H.265, H.264, MJPEG) and works with most enterprise NVR platforms without proprietary middleware. PoE power simplifies switch provisioning: calculate total wattage across all cameras on your infrastructure (this unit is under 13W), and ensure your PoE switch has sufficient headroom. For a 24-port managed PoE switch with 90W total budget, you can typically support 6–8 of these cameras plus legacy analog-to-IP converters or access control devices.

Two-way audio requires a compatible VMS client or a standalone audio intercom module. Verify your system supports audio relay before commissioning. microSD card slot works with standard Class 10 or faster cards; we recommend testing your card batch in a lab unit before bulk deployment to avoid firmware corruption on low-performance media.

When to Choose a Different Model

If you need longer IR range (beyond 70 meters), consider a higher-powered IR variant in the i-PRO S-series lineup or explore an external illuminator paired with this camera. If you require 180° or 360° panoramic coverage, a multi-sensor or PTZ variant would be more efficient. If you need lower resolution or a simpler feature set to cut costs, i-PRO offers non-vandal-rated outdoor domes at lower megapixel counts, though they sacrifice forensic detail and durability in harsh environments.

Deployment Scenarios

Transit and Logistics: WV-S25700-V2LN1 units paired with facial recognition AI enable real-time matching against watchlists at terminal entrances, parking areas, and loading docks. The 4K resolution supports ID verification; integrated edge AI reduces false alarms compared to generic object detection.

Coastal or Industrial Property: IP66 + NEMA 4X + stainless hardware handle salt spray, humidity, and dust without degradation. Aluminum die-cast body resists corrosion where standard galvanized mounts would fail within 12–18 months.

High-Risk Urban Environments: IK10 vandal rating and two-way audio enable you to challenge intruders or vandals in real-time. The hardened dome and stainless fasteners deter casual impact; edge AI can flag repeated suspicious behavior patterns.

Frequently Asked Questions

Q: What is the maximum IR range on the WV-S25700-V2LN1?

A: The integrated 850nm LEDs deliver effective night vision to approximately 70 meters (230 feet). Beyond that distance, expect reduced contrast and identification capability. For longer-range IR coverage, evaluate an external IR illuminator or a higher-powered IR variant in the i-PRO catalog.

Q: Does the WV-S25700-V2LN1 support ONVIF?

A: Yes. Full ONVIF compliance enables integration with any standard VMS (Milestone, Genetec, etc.) without proprietary middleware or vendor lock-in.

Q: How much power does the WV-S25700-V2LN1 draw?

A: Under 13W via 802.3af PoE Class 0. It will not strain a standard 15.4W per-port PoE switch. No separate power supply needed.

Q: Is the WV-S25700-V2LN1 suitable for coastal or salt-spray environments?

A: Yes. IP66 rating (dust-tight, water-jet resistant) plus stainless steel and aluminum construction handle salt spray and humidity without corrosion. Avoid full submersion (that requires IP67).

Q: Can the lens be adjusted after installation?

A: Yes. The 4.3–8.6mm motorized varifocal lens allows remote zoom adjustment from approximately 110° to 55° field-of-view without physical repositioning or lens replacement.

Q: What compression formats are supported?

A: H.265 (primary), H.264, and MJPEG. H.265 cuts storage bandwidth by roughly 40–60% compared to H.264 depending on scene complexity—meaningful for 24/7 multi-camera deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S25700-V2LN1 is a solid fit for outdoor critical-infrastructure surveillance where you need a balance between forensic image quality, edge intelligence, and environmental durability. The 4K sensor paired with facial recognition AI handles real-time identification without forwarding raw video to a central analytics server—a practical advantage when bandwidth is constrained or when you need sub-second alerting. The IK10 rating and stainless hardware are not marketing gestures; they translate directly into extended Mean Time Between Failures (MTBF) in outdoor deployments where impact and corrosion are real operational concerns.

Technical Highlights:

• H.265 Codec with 4K Payload: 40–60% bandwidth reduction versus H.264 on the same sensor. On a system with 12–16 cameras recording 24/7, this easily justifies the upgrade from older H.264-only NVRs. Real storage savings compound quickly when you're running continuous retention policies.
• 70-Meter IR Range at 850nm: Adequate for perimeter fencing and parking lots, but not for long-distance surveillance (e.g., a 500-meter rural fence line). If you need longer range, you'll need an external illuminator or a supplementary thermal camera in your design. The 850nm wavelength is invisible to the human eye but visible to cameras—standard practice for covert outdoor surveillance.
• PoE Class 0 (<13W): This is a low-power design. A single 90W PoE switch can support 6–8 of these units plus margin for other devices. No separate 12V infrastructure required. Simplifies cable runs and eliminates a potential failure point (dedicated power supplies fail; Ethernet is ubiquitous).
• Motorized 2.0x Zoom (4.3–8.6mm): Allows you to fine-tune coverage remotely after installation. Useful when initial mounting doesn't quite match the surveyed camera plan. This flexibility saves a site visit and re-aim later.

Deployment Considerations:

• IP66 is water-jet resistant, not submersion-rated. If the installation is at risk of flooding or extended underwater exposure, you need IP67 or IP68. Verify local drainage and water-table data before approving the site.
• Facial recognition AI offloads compute to the camera itself. Verify that your VMS client and network can handle real-time faceset uploads and comparison queries without bottlenecking the camera's streaming output. Some legacy ONVIF stacks don't fully support vendor-specific AI metadata payloads.
• microSD edge storage is convenient for clip export, but it's not a replacement for NVR redundancy. Don't rely on a single microSD card as your long-term archive—treat it as a local failsafe during network outages only.

The WV-S25700-V2LN1 is purpose-built for outdoor transit hubs, utility perimeters, and campus-wide deployments where you need 4K detail, edge AI, and hardware that survives vandalism and salt spray without premature degradation. Pair it with a managed PoE switch and a ONVIF-compliant VMS, and you have a modular, future-proof surveillance unit that doesn't lock you into proprietary ecosystem dependencies.
