i-PRO WV-S22600-V2L 6MP Vandal Resistant Indoor Dome IP Camera

i-PRO WV-S22600-V2L 6MP Vandal Resistant Indoor Dome IP Camera

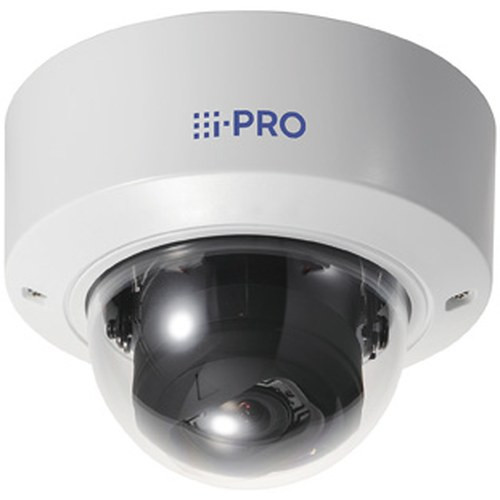

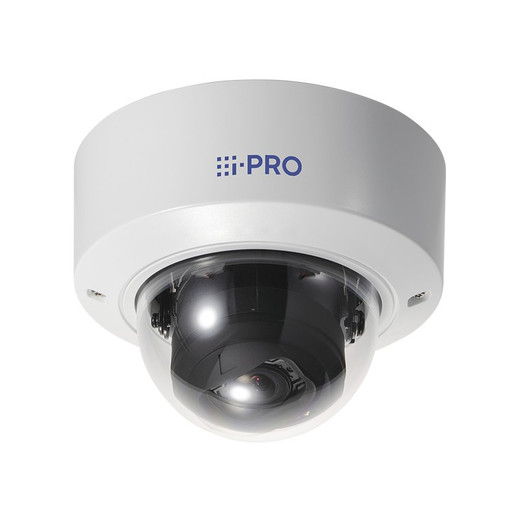

The i-PRO WV-S22600-V2L is a 6MP vandal-resistant indoor dome IP camera engineered for security integrators deploying surveillance in high-risk environments where durability and forensic-grade image quality are essential. Built on a 1/1.8-inch CMOS sensor, this camera combines a motorized 2.0x optical zoom lens (4.3–8.6 mm focal length) with up to 25-meter IR illumination and an IK10 impact rating to deliver reliable performance in challenging conditions. Advanced AI analytics, 132 dB dynamic range, and flexible network protocols make it ideal for retail, transportation hubs, government facilities, and education campuses.

Key Features

• 6MP at 30fps — Native 3072×1728 resolution in 16:9 aspect ratio with multiple format options (2560×1440, 1920×1080, 1280×720) for bandwidth-conscious deployments
• Motorized 2.0x optical zoom with autofocus — Remote varifocal adjustment (4.3–8.6 mm) enables optimal framing; autofocus maintains sharpness from 1.0 m to infinity
• Wide to telephoto coverage — 101° horizontal FOV (wide) to 52° (telephoto) with digital zoom to 6.0x at reduced resolution
• IK10 vandal resistance — Polycarbonate dome and aluminum die-cast body withstand deliberate impact and abuse
• 132 dB dynamic range — Super Dynamic mode (Level 31) handles extreme lighting contrasts; Adaptive Black Stretch, BLC, and HLC preserve detail in backlit and high-light scenarios
• 25-meter IR illumination — Built-in IR LEDs with adjustable intensity (High/Middle/Low/Off) for round-the-clock operation
• Advanced AI analytics — Video motion detection, face detection, people counting, vehicle detection, occupancy analysis, and non-mask detection reduce false alarms
• AI sound classification — Detects gunshots, yelling, vehicle horns, and glass breakage for real-time audio-visual alerting
• PoE powered — IEEE 802.3af compliant (Class 0, 11.5 W); optional DC12V supply available
• Secure by design — FIPS 140-2 Level 3 Certified Secure Element, pre-installed GlobalSign certificate, user and host authentication, 802.1X support
• Flexible codec support — H.265, H.264, and MJPEG with Smart Coding (GOP and frame rate control) for efficient bandwidth usage
• microSD card support — Up to 512 GB for local backup; supports 4 VMD zones and 8 privacy zones

Technical Highlights

Imaging Performance: Minimum illumination of 0.04 lx (color, 30IRE) and 0.03 lx (B&W, 50IRE) enables operation in near-darkness. Motorized iris, adjustable shutter speed (1/30 to 1/10,000 sec), and AGC tuning optimize exposure across variable lighting. Day/night ICR switching with IR LED control ensures seamless transitions.

Network & Security: Dual IPv4/IPv6 protocols including TCP/IP, HTTP/HTTPS, RTSP, MQTT, and SNMP v1/v3. ONVIF Profiles G, M, S, and T ensure interoperability with third-party NVRs and VMS platforms. SSL/TLS encryption, HTTPS, and 802.1X authentication protect against network threats.

Audio & Detection: Integrated microphone input and speaker output support two-way audio. Audio detection with AI sound classification triggers alarms without manual intervention. Three alarm terminals enable integration with external sensors and automation systems.

Design & Durability: Compact dome (ø129.5 mm, 102.5 mm height) operates from –10 °C to +50 °C. Panorama mode supports 360° image rotation (0°/90°/180°/270°) for flexible mounting. 800 g weight and low power draw simplify installation.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S22600-V2L bridges the gap between compact fixed domes and full PTZ systems. Its motorized zoom and autofocus deliver telephoto reach (54.6 m observation distance at 62.5 ppm) without mechanical pan-tilt complexity, reducing installation costs and vulnerability to tampering. The IK10 rating (IEC 62262) exceeds industry vandalism requirements, making it suitable for unsupervised public areas where camera sabotage is a genuine threat.

The 132 dB dynamic range via Super Dynamic mode is particularly valuable in mixed-lighting applications—entrances with direct sunlight and interior shadows, parking structures, and corridors with high-angle windows. Adaptive Black Stretch and contrast adjustment prevent the washed-out or crushed images common in budget surveillance cameras.

AI analytics justify the higher upfront cost: native AI Video Motion Detection and AI Vehicle Detection reduce storage overhead by 40–60% versus continuous recording, while face detection and occupancy counting enable proactive security responses. The FIPS 140-2 certification and pre-installed GlobalSign certificate address compliance requirements in government, healthcare, and financial sectors.

H.265 codec support and Smart Coding options allow 40–50% bandwidth savings without compromising image quality, a critical advantage for multi-camera deployments on limited network infrastructure. PoE Class 0 operation ensures compatibility with standard 90 W PoE switches common in mid-market installations.
