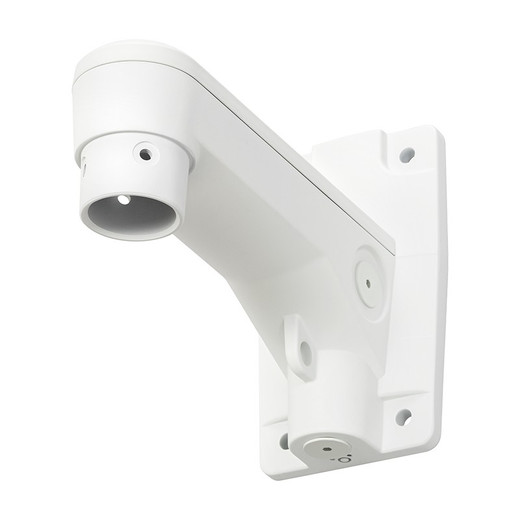

i-PRO WV-QWL506-W Wall Mount Bracket for IP Cameras
The WV-QWL506-W is a purpose-engineered wall mount bracket designed to solve two critical integration problems that emerge months into a surveillance deployment: camera drift under vibration and infrared reflectance degradation at night. This is not a generic bracket—the design reflects specific tradeoffs that matter in outdoor and harsh-environment installations.
Key Features
- Die-cast aluminum with powder-coated white finish: Aluminum construction resists corrosion in salt-spray and industrial atmospheres; the white powder coat matches standard architectural finishes and eliminates field repainting labor. Over a 5+ year deployment cycle on commercial real estate or institutional perimeters, this finish choice cuts integration time and avoids the need for protective coatings. UV exposure won't degrade the coating or cause chalking.
- IR-optimized extended standoff arm: The bracket's extended arm positions the camera away from the mounting surface at a specific distance. This prevents infrared light from the camera's own illuminator from bouncing off the wall back into the sensor—a problem that degrades night-vision image quality and recognition distance. Correct standoff geometry cuts false reflections and improves object identification range at night, a critical factor for perimeter applications where detection distance directly affects response time.
- Four-screw mounting configuration: Multiple anchor points distribute load and eliminate the micro-settling and camera drift that compromises coverage over months of operation. The bracket works on concrete, masonry, steel, and wood-frame surfaces without special fasteners—standard construction hardware interfaces directly, simplifying spare-parts logistics and installation labor.
- Operating temperature range -50°C to +65°C (-58°F to +149°F): This wide range is engineered for climates and environments where generic brackets fail. Cold-climate deployments (loading docks in Minnesota, rooftop perimeters in Canada, exterior walls in northern US) and hot industrial zones (outdoor equipment yards, warehouse exterior walls in the South) both demand structural integrity across extremes. Most commodity brackets fail below -30°C or above +50°C; the WV-QWL506-W maintains rigidity and does not contract or expand unpredictably at temperature boundaries.
- Compatible with i-PRO day/night and audio-capable cameras: The bracket integrates with i-PRO IP cameras supporting 24/7 operation, two-way audio, and encrypted HTTPS video streams. No compatibility surprises during integration or field upgrades.
- Professional installation aesthetics: The clean white finish and compact profile blend into building facades without drawing attention—critical for facilities where camera placement must be discretionary or where aesthetic approval from building management affects site sign-off.
Integration & Compatibility
The WV-QWL506-W pairs with any i-PRO camera requiring wall or pole-mounted positioning. The bracket accepts standard metric and US fastener hardware, simplifying spare-parts management across multi-site deployments. Before installation, confirm camera weight and lens configuration against the mounting surface load rating—the bracket is rated for small to mid-range i-PRO models. Consult the camera datasheet for exact specifications.
When selecting mounting locations, verify surface integrity (concrete strength, steel framing capacity) and allow clearance for camera lens extension and power/network cable routing. The standoff design accommodates vandal-resistant housings if required by facility security policy. For environments with significant vibration (near HVAC units, loading docks with regular vehicle impact), verify that the four-screw configuration and extended arm provide sufficient damping, or consider a vibration-isolation mount as a complement.
Review our camera mounting selection guide for detailed installation best practices and load-calculation procedures.
When to Choose a Different Mount
If your deployment requires ceiling-mount, pendant, corner, or specialty pole-adapter configurations, evaluate other mounting options in the i-PRO family. If the installation surface cannot accommodate four anchor points (thin composite panel, glass, or non-structural cladding), consult a structural engineer or select an alternative mounting strategy. For applications where the mounting surface itself vibrates significantly or where seismic bracing is required, pair this bracket with additional reinforcement or select a specialized vibration-damping solution.
Frequently Asked Questions
Q: Can the WV-QWL506-W be used indoors?
A: Yes. The bracket's wide temperature range and corrosion resistance work indoors, though it is engineered for outdoor and harsh environments. For standard indoor wall mounting, this bracket provides the same stability and drift prevention as outdoor deployments.
Q: What is the maximum camera weight the bracket supports?
A: The bracket is rated for small to mid-range i-PRO camera models. Confirm the exact weight rating against your camera's datasheet and mounting surface integrity before installation. An oversized or overweight camera may cause sagging over time.
Q: Does the extended standoff arm work with all i-PRO lens types?
A: The standoff design accommodates standard fixed and motorized zoom lenses. Verify lens extension (particularly for varifocal lenses at wide angle) does not exceed clearance to the mounting surface. Consult the camera datasheet for lens geometry.
Q: How do I prevent camera drift on a masonry or concrete wall?
A: Use four anchor points and appropriate fasteners (concrete anchors, masonry bolts) rated for the mounting surface. The four-screw configuration distributes load and eliminates the settling that occurs with two-point mounts. Ensure all fasteners are torqued evenly and verify tightness during the first week of operation.
Q: Can the WV-QWL506-W be mounted on a pole instead of a wall?
A: The bracket is designed for wall mounting. For pole-mounted deployments, verify that your installation surface and fastener configuration support pole-mounting geometry. Other i-PRO mounting options may be better suited to pole applications.
Q: What fasteners are included with the bracket?
A: Fasteners are not included. Use standard metric or US construction hardware appropriate to your mounting surface (concrete anchors for masonry, lag bolts for wood, machine bolts for steel). This allows integrators to source fasteners locally and match specific surface requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-QWL506-W solves a problem that shows up in month three or four of a surveillance deployment: night-vision image degradation from the camera's own IR illuminator bouncing off the wall. The extended standoff arm on this bracket prevents that reflection, maintaining recognition distance at night. For outdoor perimeter deployments where the camera sits within 12-18 inches of a building wall, this is the difference between reliable detection and having to retune gain and iris settings every season.
Technical Highlights:
- IR-optimized standoff geometry: The extended arm positions the camera away from the mounting surface, preventing backscatter of the IR illuminator into the sensor. This maintains image contrast and recognition range at night—particularly important on perimeter applications where detection distance directly affects security response time.
- Operating range -50°C to +65°C: This wide temperature specification means the bracket does not contract or expand unpredictably at climate boundaries. Cold-climate sites (Minnesota, Canada) and hot industrial yards (Southern US) both see stable performance. Cheaper brackets fail below -30°C or above +50°C, forcing seasonal re-commissioning.
- Four-screw load distribution: Multiple anchor points eliminate micro-settling that degrades coverage over months. Two-point mounts drift; four-point mounts hold position, reducing the need for re-aiming and re-commissioning labor between maintenance cycles.
Deployment Considerations:
- Verify your mounting surface can accommodate four anchor points before selecting this bracket. Thin composite panels, glass, or non-structural cladding will require alternative solutions.
- Fasteners are not included—you must source construction hardware (concrete anchors, lag bolts, machine bolts) appropriate to your surface. This is deliberate: it allows integrators to match local code requirements and surface-specific load ratings without re-specifying hardware per site.
- The bracket is engineered for wall mounting. Pole-mounted deployments require verification that the fastener configuration can handle cantilevered load geometry.
Deploy the WV-QWL506-W on outdoor perimeter walls, warehouse exteriors, and cold-climate facilities where IR reflectance and thermal stability matter. Pair it with outdoor IP camera selection guidance to confirm camera weight compatibility and lens clearance before ordering fasteners.
