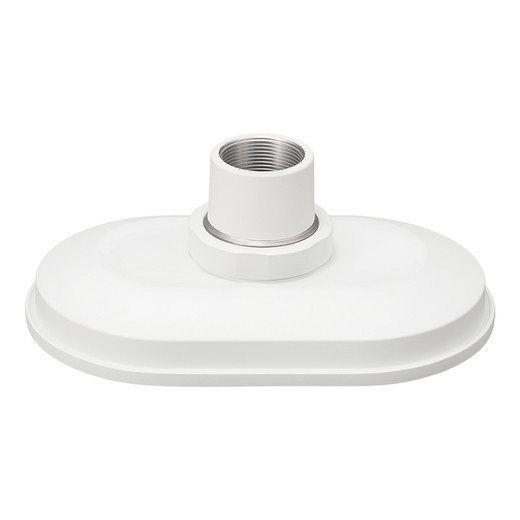

i-PRO WV-QSR507F1-W Wall Mount Bracket 1.5 NPS
Overview
The i-PRO WV-QSR507F1-W is a professional-grade wall mount bracket engineered for fixed surveillance installations using i-PRO IP cameras and compatible third-party equipment. Built to ANSI standards with a 1.5" NPS (National Pipe Standard) female threaded connection, this bracket delivers the structural integrity required for demanding commercial and industrial deployments. The white finish integrates cleanly with interior and exterior building materials without aesthetic compromise.
Key Features
- 1.5" NPS Female Thread Connection: Standardized ANSI pipe thread interface ensures compatibility with a broad range of i-PRO camera housings and third-party accessories engineered to the same specification. No adapter or custom fabrication needed — direct threaded engagement guarantees mechanical alignment and repeatable installation.
- Wall-Mount Configuration: Designed for fixed positioning on building exteriors, interior structural walls, or architectural overhangs. Reduces installation footprint compared to pole or pedestal mounts, ideal when ceiling or wall real estate is premium.
- Professional-Grade Construction: ANSI-compliant fabrication ensures load-bearing capacity suitable for institutional and commercial security systems. Rated for sustained outdoor environmental exposure without corrosion creep or structural degradation under typical weather cycles.
- White Powder-Coat Finish: UV-stable coating resists fading and maintains appearance across seasons. Blends with institutional architecture (office buildings, retail, warehouses) and minimizes visual obtrusiveness in perimeter surveillance deployments.
- Straightforward Installation: Threaded connection eliminates bracket-specific fasteners or alignment complexity. Wall anchors or direct drilling into masonry/steel are the only prerequisites — no specialized tools or calibration required.
Integration & Compatibility
The WV-QSR507F1-W pairs with any outdoor IP camera or surveillance accessory featuring a matching 1.5" NPS male thread. i-PRO compact housings and modular camera enclosures commonly use this standard, making this bracket a core component for standardized multi-camera deployments. Verify your camera's connection specification before purchase — some compact or compact-dome models may use different thread sizes (1.25" or 2").
This mount does not include integrated cable management, power distribution, or cable-entry provisions. Route network and power lines independently along the wall surface or through existing conduit infrastructure. For installations requiring weatherproof cable entry, pair this bracket with separate i-PRO junction boxes or third-party conduit fittings.
Deployment Context
Deploy the WV-QSR507F1-W when you need fixed, high-angle surveillance over entrance ways, loading docks, perimeter boundaries, or interior corridors. Wall mounting works well for retail environments (overhead aisles), office buildings (reception areas), and industrial facilities (shipping areas) where the camera field of view remains stable and doesn't require pan-tilt coverage. Outdoor use requires the host camera to carry its own environmental rating (IP66 minimum) — this bracket itself is structural support only.
Frequently Asked Questions
Q: Does the WV-QSR507F1-W work with all i-PRO cameras?
A: No. Compatibility depends on the camera's connection thread. The WV-QSR507F1-W accommodates 1.5" NPS male threads only. Verify your camera model's thread specification in its installation guide before ordering. Compact or specialty housings may use 1.25" or 2" threads, which would require different bracket models.
Q: Is the bracket suitable for outdoor installations?
A: The bracket is structurally rated for outdoor environmental exposure and will not corrode or degrade under weather cycles. However, your camera must carry its own environmental certifications (IP66 or higher for rain/dust resistance). This bracket provides mounting structure only, not environmental sealing for the camera itself.
Q: What wall surface should I install this on?
A: Mount on concrete, masonry, or steel structural surfaces using appropriate anchors for your wall type (concrete expansion anchors, masonry toggles, or lag bolts into steel). Do not install on drywall alone — drywall cannot support sustained camera weight and vibration. Consult a structural specialist if you're uncertain about wall composition or load-bearing capacity.
Q: Do I need additional cable management hardware?
A: The WV-QSR507F1-W is structural mounting only. You must route network (PoE or Ethernet) and auxiliary power cables separately along the wall surface, through existing conduit, or via cable trays. Consider pairing this bracket with junction boxes or conduit fittings for weatherproof cable entry in outdoor deployments.
Q: What finish options are available?
A: The WV-QSR507F1-W is manufactured in white powder coat only. If you require a different color (gray, black, or unpainted aluminum), contact the i-PRO product team or check for alternate model variants in the professional bracket line.
Q: Is installation tooling included?
A: The bracket itself requires only a wrench or hex key to tighten the threaded connection once mounted. Wall fastening hardware (bolts, anchors, washers) is not included — source these based on your wall material and local building codes. Consult the product datasheet for recommended fastener specifications.
When to Choose a Different Model
The WV-QSR507F1-W is optimized for standard wall installations with 1.5" NPS cameras. If your camera uses a different thread size (1.25" or 2"), you'll need an alternate bracket from the i-PRO mounting accessory line. For ceiling-mount or pendant-hung installations, explore i-PRO's ceiling bracket and hanging kit variants. For installations requiring tool-free quick-release capability or multiple angular adjustments, consider bracket models with integrated pan-tilt or gimbaled bases — though these add complexity and cost.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-QSR507F1-W is a workhorse accessory for integrators standardizing on i-PRO housings with 1.5" NPS connections. The ANSI female thread is the right choice if you're building a repeatable wall-mount system across multiple locations — no adapters, no surprises on site. What makes this bracket practical is its simplicity: you mount it once, thread the camera housing on, and you're done. No extra fasteners, no alignment fussing.
Technical Highlights:
- 1.5" NPS ANSI Female Thread: Direct mechanical interface with any compatible i-PRO camera housing eliminates adapter-induced play or alignment drift. Repeatable across dozens of installations without site-specific calibration.
- White Powder-Coat Finish: UV-stable and corrosion-resistant. Won't fade or pit over 3–5 years of outdoor exposure in temperate climates. Matches typical institutional building colors (concrete, stucco, white trim) without requiring paint or custom finishes.
- Wall-Mount Geometry: Designed for shallow standoff from wall surface. Reduces sight lines to the mounting hardware and works well in tight architectural niches or where pole/pedestal space is unavailable.
Deployment Considerations:
- Verify the host camera's thread size before order. A 1.25" or 2" camera will not fit — no workaround short of sourcing the correct bracket model.
- Wall anchoring is your responsibility. Drywall alone will fail under vibration and camera weight. Use concrete, masonry, or steel substrates with appropriate mechanical fasteners rated for sustained shear and tension loads.
- Cable routing is separate. This bracket has no integrated conduit, cable tray, or weatherproof entry — plan your network and power runs independently. In outdoor deployments, use proper junction boxes and conduit fittings to prevent water ingress around cable entry points.
The WV-QSR507F1-W shines in retail, warehouse, and office environments where you're installing 3–10 fixed cameras with standardized thread connections and clean aesthetic requirements. It's not a universal bracket — but if your camera lineup matches the spec, it's reliable and straightforward to scale across a multi-building deployment.
