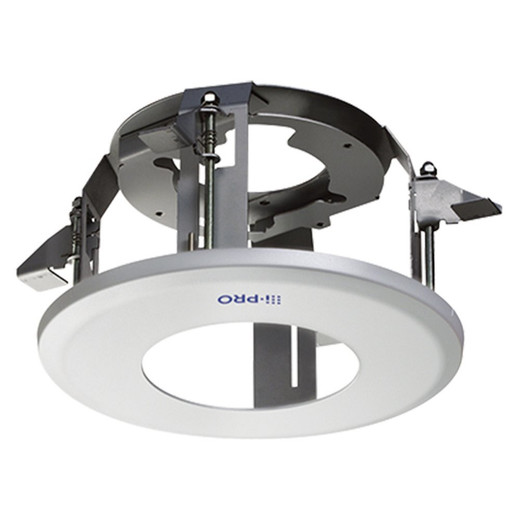

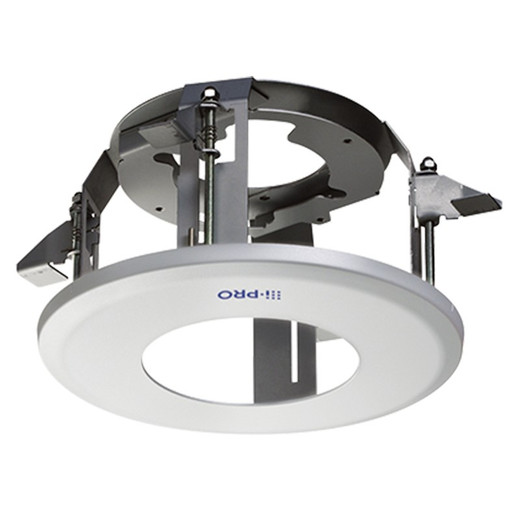

i-PRO WV-QEM500-W Embedded Ceiling Mount Bracket
The i-PRO WV-QEM500-W is a white embedded ceiling mount bracket engineered for flush installation into standard ceiling cavities. This accessory delivers a clean, integrated mounting solution for i-PRO IP cameras in indoor surveillance deployments where concealed aesthetics and structural discretion are critical to facility design.
Key Features
- Embedded ceiling mount design: The WV-QEM500-W mounts directly into ceiling cavities, eliminating surface-mounted hardware and visible fasteners — ideal for retail showrooms, corporate offices, and healthcare facilities where visible security infrastructure may detract from the customer or patient experience.
- White finish: Matches standard drop-ceiling materials and drywall, ensuring the bracket and camera blend seamlessly into the built environment rather than drawing attention. Reduces the visual footprint compared to surface-mount or pendant solutions.
- Purpose-built i-PRO compatibility: Designed specifically for i-PRO camera form factors and mounting interfaces, ensuring mechanical fit and alignment without adapters or workarounds.
- Supports secure indoor mounting: Provides stable, rigid support for cameras deployed in temperature-controlled indoor environments (offices, retail, hospitality, education). Not rated for outdoor or harsh environmental exposure.
- Engineered for standard ceiling cavity dimensions: Fits within typical suspended ceiling grid spacing and cavity depths, minimizing installation complexity and avoiding the need for custom framing or reinforcement in most modern commercial buildings.
When to Choose This Bracket
Select the WV-QEM500-W if your deployment requires concealed ceiling mounting with minimal visual impact. This bracket is most cost-effective and practical for new construction or renovation projects where ceilings are already open or scheduled for modification. Existing drop-ceiling installations benefit from this approach because the bracket fits within the grid and cavity system already in place.
Avoid this bracket if cameras need to mount on walls, in outdoor or semi-outdoor areas (parking structures, loading docks, exterior soffit), or if your ceiling system uses non-standard joinery or is inaccessible after closure. For outdoor IP cameras, verify environmental ratings on both bracket and camera separately — embedded ceiling mounts do not protect against rain or temperature extremes.
Integration with i-PRO Systems
The WV-QEM500-W is compatible with i-PRO's modular camera portfolio. Confirm your specific camera model's mounting footprint and weight before purchase. Most i-PRO dome and compact turret models support this interface; larger PTZ or specialty form factors may require different brackets. Consult your camera's installation manual or contact the manufacturer for compatibility confirmation.
Installation Considerations
Embedded mounting requires access to the ceiling cavity during installation — plan bracket mounting before drywall closure or drop-ceiling tile installation. Once cabled (PoE or coax runs must be run before the bracket is secured), the bracket seats flush into the cavity. Cable management through the ceiling plenum follows standard commercial practices: maintain separation from HVAC ducts, electrical conduit, and fire-rated barriers per local building code.
Alternative Mounting Approaches
If embedded ceiling mounting is not feasible, consider surface-mount or pendant brackets for the same camera. Wall mounts are appropriate for foyer or hallway surveillance where ceiling access is limited. For applications requiring heavy cameras or frequent repositioning, articulating arms or gimbal mounts may offer more flexibility than fixed embedded designs.
Frequently Asked Questions
Q: Will the WV-QEM500-W work with any i-PRO camera?
A: The bracket is designed for i-PRO cameras with compatible mounting interfaces. Compact dome and turret models typically fit; larger or specialty form factors may not. Verify the camera's installation manual or contact i-PRO technical support for confirmation before ordering.
Q: Can I install the WV-QEM500-W in a plenum or fire-rated ceiling space?
A: The bracket itself has no fireproofing rating. Installation in fire-rated plenums must comply with local building code and may require additional sealing or approved cable routing. Consult your facility's fire safety officer or building contractor before installation.
Q: What is the maximum cable run length from the bracket to my PoE switch?
A: The bracket itself places no limit on cable length. Standard Ethernet (Cat5e or better) supports PoE up to 328 feet (100 meters) as per IEEE 802.3. Power loss depends on your specific camera's power draw — verify the camera's PoE wattage in its datasheet and ensure your switch has available power budget for all connected devices.
Q: Is the WV-QEM500-W suitable for outdoor or damp environments?
A: No. This bracket is designed for dry indoor ceilings only. The white finish and materials are not sealed or treated for moisture, UV exposure, or temperature extremes. For outdoor mounting, specify an outdoor-rated bracket rated IP67 or higher.
Q: Does the bracket include mounting hardware?
A: Refer to the product documentation for a complete package contents list. Typical inclusions are limited to the bracket itself and standard fasteners for cavity installation. Additional hardware (cable clips, conduit, elbows) may be ordered separately.
Q: Can I retrofit the WV-QEM500-W into an already-closed ceiling?
A: Not easily. The bracket requires ceiling cavity access for mounting. If your ceiling is closed, you must cut or remove tiles and drywall around the installation point, then patch and finish afterward. For retrofit projects in occupied facilities, surface-mount or pendant alternatives are less disruptive.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The i-PRO WV-QEM500-W is a straightforward embedded ceiling bracket — no motors, no optics, no intelligence. What it does well is get a camera out of sight while keeping installation simple. If your facility design demands concealed cameras and your ceiling is still accessible during build-out, this bracket earns its place in the bill of materials.
Technical Highlights:
- Embedded cavity mounting: Sits flush within standard drop-ceiling grids (typically 2-foot or 1.5-foot spans). Zero protrusion below the ceiling plane means no visual clutter and no snag points for facility maintenance staff.
- White finish: Blends into suspended ceilings and drywall soffits across most commercial facilities. Avoids the contrast problem of black brackets against light ceilings — a detail that matters in high-visibility retail or hospitality spaces where perception of "Big Brother" monitoring can affect customer comfort.
- i-PRO mechanical compatibility: Designed specifically for i-PRO's camera interface, eliminating the need for third-party adapters or improvised solutions. That simplicity reduces field assembly errors and warranty claims.
Deployment Considerations:
- Timing is critical: This bracket must be mounted before drywall or ceiling tiles close in the space. Retrofitting into an occupied building with finished ceilings is costly and disruptive — plan ceiling work during new construction or major HVAC/electrical renovation phases.
- Cavity depth and grid pitch: Confirm your ceiling system's dimensions (cavity depth, grid spacing) match the bracket's footprint before order. Non-standard ceiling systems (hard-lid, concrete coffers, legacy drop systems) may not accommodate this bracket without custom framing.
- Cabling runs: All camera cables (PoE Ethernet, coax for hybrid setups) must be routed through the plenum during ceiling-open phase. Plan conduit, cable trays, and separation from HVAC ductwork and electrical in advance. Post-closure cable additions are not practical.
- Indoor-only rating: This bracket has no environmental protection beyond the standard materials. If your facility has unconditioned crawlspaces, attics with high temperature swings, or any moisture exposure above the ceiling, the bracket will not protect the camera. Specify camera environmental ratings separately.
The WV-QEM500-W is the right call for new-construction corporate campuses, retail remodels where ceilings are being refreshed anyway, and education facilities planning a multi-year security refresh. It's not practical for retrofit-into-occupied-space projects or facilities with challenging ceiling architectures. Pair this bracket with an i-PRO compact dome or turret camera, run Cat6 PoE from a nearby switch during construction, and you have a clean, professional concealed deployment that will serve 5–7 years without field maintenance.
