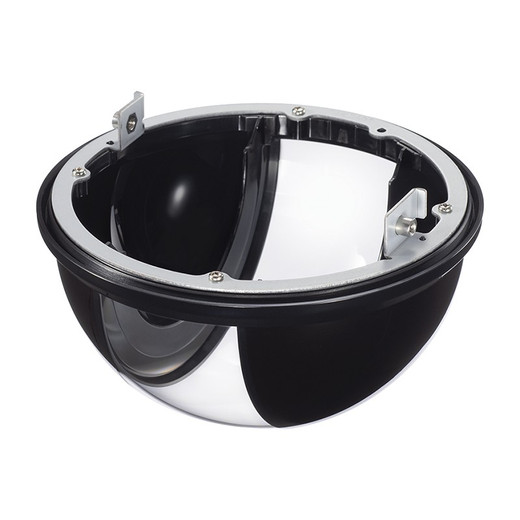

i-PRO WV-QDC508CN Clear Dome Cover with ClearSight Coating
Overview
The i-PRO WV-QDC508CN is a replacement clear dome cover engineered as an OEM accessory for the i-PRO S66XX and X66XX series fixed dome cameras. This is not a universal replacement; it's precision-molded to match the exact optical and mechanical geometry of these specific models, ensuring no image degradation at the lens-dome interface. The WV-QDC508CN addresses two of the most persistent problems in outdoor surveillance: glare (which causes video washout in bright sunlight or reflective indoor environments) and moisture accumulation (which creates blurring, ghosting, and color shifts during rain or high-humidity conditions). The dome's proprietary ClearSight dual-function coating tackles both problems simultaneously—anti-reflective properties reduce surface glare, while hydrophobic treatment causes water to bead and roll away rather than sheet across the optical surface. In high-moisture environments (coastal sites, tropical climates, post-rain conditions), this difference often determines whether footage remains usable during critical hours.
Key Features
- ClearSight Dual-Function Coating (Anti-Reflective + Hydrophobic): The anti-reflective layer eliminates the bright reflections that occur when external light hits a transparent dome, particularly problematic during sunrise/sunset transitions or in high-gloss indoor environments such as glass-walled facilities or retail spaces. The hydrophobic treatment prevents water from pooling or streaming across the dome surface—water beads into small droplets and rolls away due to surface tension. This directly preserves image clarity during and immediately after rain events, when most critical incidents occur. Without this coating, video becomes unusable within minutes of moisture accumulation.
- Optical-Grade Polycarbonate Resin Construction: PC resin transmits light across the full visible and near-infrared spectrum without degradation, so thermal imaging and night-vision performance of the underlying camera is not compromised by the dome itself. Polycarbonate is also inherently more impact-resistant than acrylic, withstanding hail, flying debris, and vibration from nearby machinery (conveyor systems, warehouse equipment, HVAC units) without cracking or crazing over time.
- Precision Geometry for S66XX and X66XX Fit (167mm Diameter): The dome's 167mm diameter, 77.5mm radius, and 107mm height are not arbitrary dimensions—they're engineered to match the spring clips, cable routing, and lens assembly alignment of these camera models. Using a non-OEM or generic dome introduces light leaks, mechanical stress on the camera housing, or misalignment that degrades image quality. The WV-QDC508CN eliminates guesswork and rework during installation, reducing commissioning time.
- Extreme Temperature Operating Range: -50°C to +60°C (-58°F to +140°F): A 110°C operational span covers arctic installations (mining operations, research stations, high-altitude sites), desert deployments (Middle East, North Africa, Southwest US), and tropical climates (Southeast Asia, Caribbean) without dome brittleness, seal failure, or chemical degradation. Many budget domes become brittle below -30°C or degrade chemically above +50°C; the WV-QDC508CN maintains structural integrity and optical clarity across the full range. This is critical in 24/7 outdoor installations where daily temperature swings of 30–50°C are common.
- Ceiling and Wall Mounting Support: The dome's geometry and the underlying i-PRO outdoor IP cameras ball mount allow both ceiling-mount (typical for covered canopies, building soffits, or parking structures) and wall-mount (typical for building facades, fence posts, or pole-mount fixtures). This flexibility reduces site survey constraints and enables retrofit into existing structures without re-engineering the mount assembly.
Integration & Compatibility
The WV-QDC508CN is a direct replacement for the i-PRO S66XX and X66XX series fixed dome cameras only. Compatibility is model-specific; verify your camera model before ordering. The dome is a passive optical component—it introduces no latency, does not consume power (it is not PoE-powered), and requires no configuration or firmware updates. Installation is straightforward: loosen the existing spring clips on the camera housing, remove the old dome, slide the new WV-QDC508CN dome onto the camera body, and re-tighten the clips. Basic hex wrench tools are sufficient; no specialized equipment is required. If your deployment involves camera dome protection in challenging weather, high-glare environments, or coastal/tropical sites, dome material and coating selection directly impact video quality and operational uptime.
Frequently Asked Questions
Q: Will the WV-QDC508CN fit my i-PRO camera?
A: The WV-QDC508CN is engineered specifically for i-PRO S66XX and X66XX series fixed dome cameras. Confirm your camera model before ordering. It will not fit other i-PRO models or third-party cameras.
Q: Does the ClearSight coating reduce the camera's image quality or color accuracy?
A: No. The anti-reflective and hydrophobic coatings are applied to the dome surface and do not affect the camera's sensor performance, color reproduction, or dynamic range. The coating improves video usability by reducing glare and moisture artifacts, not by altering the underlying image.
Q: Can I use the WV-QDC508CN indoors?
A: Yes. While designed for outdoor environments, the dome performs equally well indoors. It is particularly useful in high-gloss indoor environments (glass-walled facilities, retail spaces, warehouses with reflective surfaces) where glare from lighting or windows can wash out video.
Q: What is the operating temperature range?
A: The WV-QDC508CN operates from -50°C to +60°C (-58°F to +140°F). This range supports arctic, desert, and tropical deployments without dome degradation or seal failure.
Q: How do I clean the dome if water or dirt accumulates?
A: Use a soft, lint-free cloth and mild soap and water. Avoid abrasive materials or solvents, which can damage the ClearSight coating. The hydrophobic treatment allows water to bead and roll away, reducing manual cleaning frequency in normal weather conditions.
Q: Is the dome impact-resistant?
A: Polycarbonate is significantly more impact-resistant than acrylic or glass. It withstands hail, flying debris, and vibration from nearby machinery. However, it is not unbreakable—extreme impacts (rocks, intentional damage) can still cause damage. In high-vandalism zones, consider an additional protective cage or shroud.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-QDC508CN (often searched as WV QDC508CN) solves a real problem that generic dome replacements don't: the precision fit. I've seen integrators waste hours trying to force a non-OEM dome onto an S66XX or X66XX camera only to discover misalignment, light leaks, or mechanical stress on the lens assembly. The WV-QDC508CN's 167mm geometry is engineered to match the camera's spring clips and cable routing exactly—no guesswork, no rework.
Technical Highlights:
- ClearSight Anti-Reflective & Hydrophobic Coating: The dual-function design addresses two failure modes simultaneously. Anti-reflective properties eliminate glare washout (critical during sunrise/sunset or in high-gloss environments), while hydrophobic treatment prevents water sheeting—water beads and rolls away rather than pooling on the lens surface. In tropical or coastal deployments, this coating difference is the difference between usable and unusable footage during rain events.
- Optical-Grade Polycarbonate (Full IR Transmission): The material transmits across visible and near-infrared spectrum, so thermal imaging and low-light performance of the underlying camera are not degraded. PC is also far more impact-resistant than acrylic—relevant if your site has hail risk or proximity to machinery vibration.
- Extreme Temperature Tolerance (-50°C to +60°C / -58°F to +140°F): A 110°C operational span is rare for dome covers. This matters in arctic installations (mining, research), deserts (Middle East, Southwest US), and tropical climates where daily temperature swings exceed 30°C. Most budget domes become brittle below -30°C or degrade above +50°C; the WV-QDC508CN maintains structural integrity and optical clarity across the full range.
Deployment Considerations:
- Model specificity is non-negotiable. Verify your camera is S66XX or X66XX before ordering. There is no universal fit; forcing the wrong dome creates problems during installation and degrades image quality afterward.
- The hydrophobic coating reduces but does not eliminate manual cleaning in high-dust or high-pollen environments. In agricultural or industrial sites with airborne particulate matter, plan for periodic dome maintenance regardless of coating.
The WV-QDC508CN is the right choice for outdoor fixed dome deployments where glare or moisture are known issues—coastal surveillance, warehouse perimeter monitoring in tropical regions, or high-gloss retail and office environments. It's an OEM accessory, which means it's engineered to the same standard as the camera itself. Don't cheap out on dome replacement in a demanding environment; a $300–400 replacement dome is cheap insurance against footage loss during the moments that matter most.
