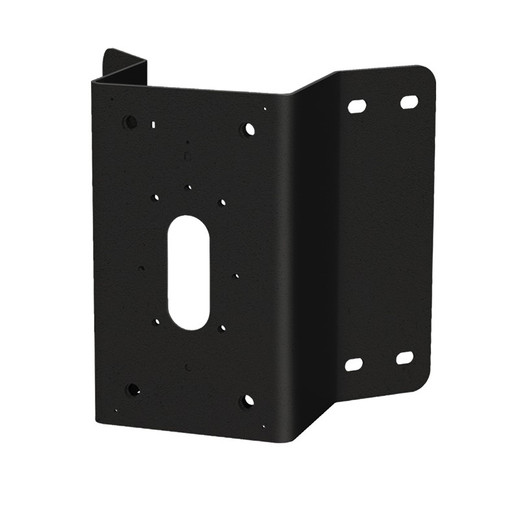

i-PRO WV-QCN500-B Corner Mount Bracket
Overview
The WV-QCN500-B is a corner mount bracket designed to install i-PRO dome surveillance cameras at building corners and external wall junctions. This bracket positions a single camera to cover the intersection of two surfaces — eliminating the need for multiple wall or ceiling mounts at L-shaped hallways, stairwell corners, or exterior building edges. The 90-degree dual-surface design anchors to both walls simultaneously, distributing camera weight across both mounting planes rather than relying on a single fastening point. This matters in wind-exposed locations and environments where tamper resistance is a requirement.
Compatibility
The WV-QCN500-B is compatible with i-PRO dome camera models that support standard dome mount brackets. For the current list of mountable i-PRO camera models, refer to the technical information section at i-pro.com/global/en/surveillance. Verify your specific camera model against the compatibility documentation before ordering — mount plate interfaces vary across camera families.
Installation Notes
The bracket measures 230 mm (L) × 246 mm (W) × 155 mm (H) and includes a safety wire fixing bracket for additional pull-out resistance. Installation requires M10 hexagon screws (5 pcs., 30 mm length) for primary fastening, M6 hexagon screws (2 pcs., 16 mm length) for secondary attachment, and M4 hexagon screws (5 pcs., 20 mm length) for bracket assembly. You will need an 8 mm, 5 mm, or 3 mm hexagon wrench depending on which screw size is used at your corner location. One spare is provided for each screw type. The bracket operates across –50 °C to +60 °C (–58 °F to 140 °F), supporting both indoor and outdoor corner installations. Mounting surface material and structural load capacity should be verified before installation — concrete, brick, and metal substrates all behave differently under fastener pull-out loads.
What's in the Box
- 1x WV-QCN500 corner mount bracket
- 1x Safety wire fixing bracket
- 5x M10 × 30 mm hexagon screws
- 2x M6 × 16 mm hexagon screws
- 5x M4 × 20 mm hexagon screws
- 1x Installation instructions (83.5 mm × 46 mm)
