Type:

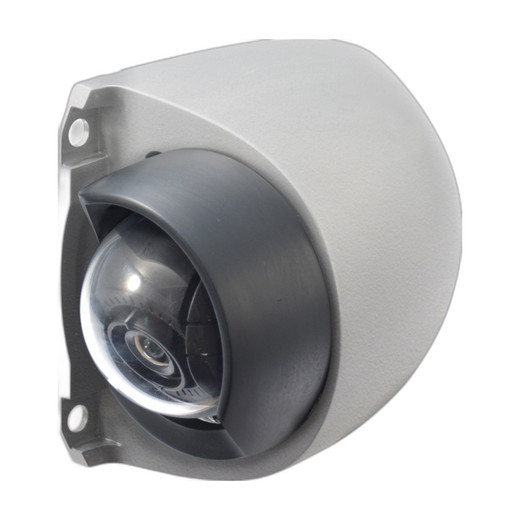

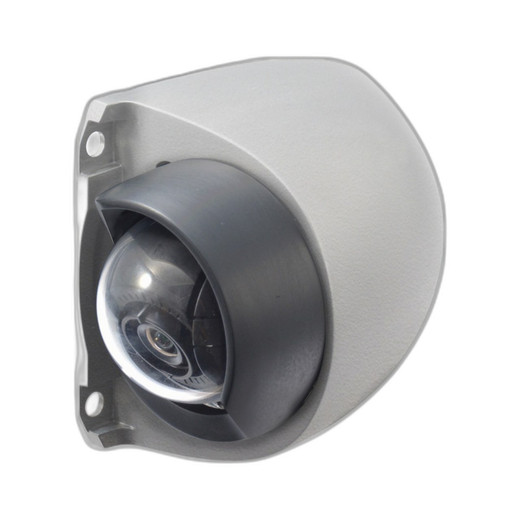

2MP Rugged Mobile Dome Camera
Frame Rate:
30fps
Model:
WV-SBV131M
Resolution:
2MP (1920×1080)
Vibration Resistance:
EN50155, MIL-STD-810G
Weather Resistance:
IP66, NEMA-4X, IP6K9K
Vandal Rating:
IK10
Railway Application Compatibility:
Railway certified (EN50155-T3, EN50121)
Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP66
Night Vision:
IR
Power Type:
PoE
PoE Class:
2
Form Factor:
Dome
Video Compression:
H.264
Focal Length:
1.95mm
IR Distance:
0.5m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
Outdoor Ready:
Yes
HTTPS Encryption:
Yes
Operating System:
Windows
Housing Color:
White
resolution:
2 MP
ip_rating:
IP66
ik_rating:
IK10
poe_power:
PoE (802.3af)
ir_lowlight:
Day/Night
compression:
H.264
analytics:
VMD
Camera:
Title (OSD) Up to 20 characters (alphanumeric characters, marks), On / O
Operating_Temp:
−40°C to +60°C (−40°F to +140°F)
Dimensions:
100 mm {3-15/16 inches} (W), 80 mm {3-5/32 inches} (H),
Length:
0.5m
Compatible With:
demanding
PoE:
PoE
Speed:
810G
IP_Rating:
IP66 / IP6K9K
PoE_Power:
PoE (802.3af Class 2)
WDR:
WDR
IR_Lowlight:
Day/Night (Electrical); 0.1 lx (Color), 0.06 lx (B/W)
ONVIF:
Yes
Analytics:
VMD (Video Motion Detection)
Lens:
1.95 mm fixed
Mount_Type:
Dome (vehicle/trackside mount)
Form_Factor:
Dome
Max_FPS:
30 fps
IR_Range:
0.5 m
Sensor_Size:
1/3 type MOS
Min_Illumination:
0.1 lx (Color), 0.06 lx (B/W) at F2.2
Storage:
microSD (external)
Certifications:
EN50155-T3, MIL-STD-810G, NDAA Compliant
Cybersecurity:
HTTPS encryption
VMS_Compatibility:
ONVIF Profile S
PoE_Wattage:
13W (maximum)
Operating_Temp:
−40°C to +60°C (−40°F to 140°F)
Wattage:
13W
Length:
0.5 m
Compatible With:
transport
IP_Rating:
IP6K9K
PoE_Power:
PoE 802.3af Class 2
IR_Lowlight:
Day/Night (Electrical); 0.1 lux Color / 0.06 lux B/W @ F2.2
Analytics:
Video Motion Detection (VMD); 4 areas; Privacy zones (8); VIQS (8 locations)
Lens:
1.95mm fixed, manual focus
Min_Illumination:
0.1 lux (Color, F2.2); 0.06 lux (B/W, F2.2); 0.007 lux (Color, extended shutter); 0.004 lux (B/W, extended shutter)
Certifications:
EN50155-T3; MIL-STD-810G; NDAA Compliant; IP6K9K
VMS_Compatibility:
ONVIF; Milestone; Axis Camera Station; legacy DVR/NVR
PoE_Wattage:
13W max
Brand:
i-PRO
MPN:
WV-SBV131M
Power:
13W
