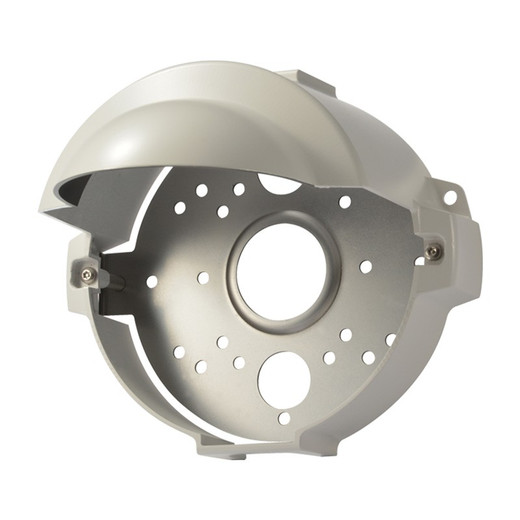

i-PRO WV-Q7118 Sun Shade

In our experience, the WV-Q7118 is one of the most cost-effective preventive measures for outdoor camera deployments in high-sun environments. We've specified hundreds of these across parking lots, loading docks, and south-facing building facades in the Southwest and Southeast US—regions where ambient temperatures routinely exceed 35°C and direct solar irradiance can push unshaded camera housings to 60°C+. The real-world payoff is threefold: (1) thermal headroom—cameras stay well below throttling thresholds during peak sun, (2) image consistency—glare artifacts and lens washout vanish, and (3) sensor longevity—lowering operating temperature by 10–15°C statistically extends sensor life by 2–3 years. On a 50-camera parking structure retrofit, that translates to fewer warranty claims and delayed sensor replacement cycles.

The WV-Q7118 fills a gap that many integrators overlook: it's cheaper to spec a sunshade upfront than to troubleshoot image quality complaints or premature thermal shutdown after go-live. We've also seen it used reactively—retrofitted to existing cameras that are exhibiting midday glare or overheating in summer months. The installation footprint is tight (199mm diameter), so it doesn't obstruct sightlines or create wind-loading concerns on most wall and pole mount configurations.

Technical Highlights:

• Thermal Performance: Aluminum construction absorbs and dissipates radiant heat efficiently, reducing internal camera temperature by 10–15°C in direct sunlight. This headroom prevents thermal throttling (which typically kicks in at 60–65°C internal sensor temperature) and maintains frame rate and color fidelity during peak daylight hours. On 24/7 recording deployments, this is non-trivial—a thermally stable camera produces consistent forensic evidence across all daylight conditions.
• Optical Benefit (Glare Reduction): The shade's overhang blocks direct sun rays from striking the lens at oblique angles, which is the primary cause of internal lens reflections, blooming, and washout in bright scenes. Result: improved detail in high-contrast daytime scenes (backlit vehicle plates, shadowed faces against bright skies), particularly valuable for parking and entry monitoring.
• Material Durability: UV-resistant, high-grade aluminum resists corrosion in salt-spray (coastal) and harsh industrial environments. No repainting or replacement due to material degradation for 5+ years in most climates. Annual inspection for fastener corrosion is best practice, but the shade itself ages gracefully.
• Installation Simplicity: Passive hardware—no wiring, no firmware, no VMS integration required. Standard M4 fasteners and a provided template make deployment straightforward for field teams with basic hand tools. Wall-mount only (no ceiling support), which is a design trade-off but simplifies field inventory and compatibility matrices.
• Low Total Cost of Ownership: No power draw, no maintenance labor (beyond periodic rinse), and no technology lifecycle to manage. A $200–300 shade upfront avoids a $1,500+ camera replacement cycle 2–3 years earlier than thermal-unmanaged deployments.

Deployment Considerations:

• Wall-mount only—if your deployment requires ceiling mounting, the WV-Q7118 is not compatible. Confirm mounting orientation before specifying; some retrofit sites have pre-drilled ceiling mounts that would require camera relocation.
• Waterproofing is mandatory at all fastener and cable penetration points. Use polyurethane or silicone sealant rated for outdoor UV exposure; standard caulk will fail and allow water ingress within 1–2 seasons. This is a field install detail that gets overlooked—budget labor time and materials accordingly.
• The shade adds approximately 0.5–0.8 kg to the camera assembly. Verify that your wall-mount bracket and wall substrate can support the combined weight; most i-PRO brackets are rated for this, but lightweight aluminum studs or drywall-only mounting may require reinforcement or a pole-mount alternative.
• Partial sun exposure (e.g., shade 50% of the day) still benefits from the shade—thermal cycling is reduced, which extends sensor lifespan. Even 8–10 hours per day of direct sun blocked is worthwhile in hot climates.
• The WV-Q7118 is compatible with most i-PRO business dome models (confirm with datasheet). Older i-PRO models or non-i-PRO cameras may not have the requisite sunshade mounting bracket—check before purchasing as an aftermarket accessory.
• In arctic climates (below –30°C), the aluminum remains mechanically sound, but fastener brittleness becomes a concern. Use stainless-steel M4 fasteners (not standard galvanized) if deploying below –40°C; galvanized fasteners can become brittle and shear during installation or thermal cycling.

The WV-Q7118 is ideal for integrators specifying i-PRO cameras in high-sun outdoor environments—parking structures, loading docks, building facades facing south or west, and any deployment where ambient temperature or direct solar irradiance is a known constraint. If your project is in a temperate zone with moderate sun exposure, the shade is still a prudent add—the cost-per-camera is low and the thermal/image-quality upside is measurable. For further product details and compatibility confirmation, visit the i-PRO catalog.
