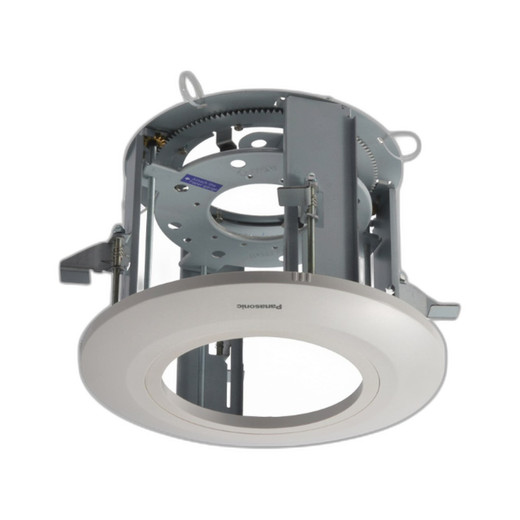

i-PRO WV-Q126A Embedded Ceiling Mount Bracket
Overview
The WV-Q126A is an embedded ceiling mount bracket engineered for i-PRO surveillance cameras requiring a low-profile, flush-ceiling installation. This bracket solves the common integration problem in commercial interiors where visible mounting hardware conflicts with design standards — retail ceilings, corporate offices, hospitality spaces — situations where you need full surveillance coverage without the hardware dominating the visual field. The bracket positions the camera directly into the ceiling plane, hiding the mounting chassis behind a decorative cover assembly.
Compatibility
Designed specifically for i-PRO camera models. Installation compatibility depends on the camera body diameter and mounting interface. Verify your specific camera model against i-PRO documentation before ordering; the bracket is not a universal ceiling mount. Contact your integrator or i-PRO pre-sales engineering if you need confirmation that your camera series mates with the WV-Q126A.
Installation Notes
Mounting requires access above the ceiling cavity — vertical space clearance is essential to seat the embedded chassis properly. Installation involves aligning the mounting chassis with the ceiling opening, securing the bracket frame, then affixing the decorative cover assembly with the provided fasteners. The decorative cover must be rotated clockwise (viewed from below) to engage the mounting marks and tightened to the specified torque of 0.68 N·m (0.50 lbf·ft). Do not over-torque; use a calibrated torque wrench to meet the specification. The bracket includes mounting hardware; verify that your ceiling construction (drywall, drop-ceiling tile, or other substrate) can bear the weight and allow secure anchoring. For metal or concrete ceilings, additional fasteners may be required.
What's in the Box
- Embedded mounting chassis assembly
- Decorative cover (main)
- Decorative cover (sub)
- Mounting fasteners and alignment template
- Installation guide (multilingual)
