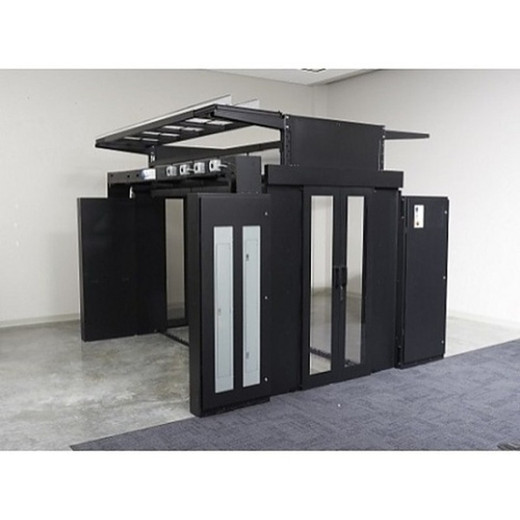

APC by Schneider Electric Hyperpod Roof - 6FT Aisle Simple Roof Panel 600MM - FS-RF-2005-U

APC by Schneider Electric FS-RF-2005-U Hyperpod 6FT Aisle Containment Roof Panel, 600MM

Overview

The APC by Schneider Electric FS-RF-2005-U is a 600mm-wide simple roof panel designed for the Hyperpod aisle containment system, spanning approximately 6 feet (2056mm) in depth. Aisle containment is one of the most cost-effective measures you can deploy in a hot-aisle/cold-aisle data center layout — it prevents conditioned air from mixing with hot exhaust before it reaches your equipment intakes, which directly reduces the load on your cooling infrastructure. The FS-RF-2005-U provides the overhead enclosure segment that seals the top of the contained aisle, working in conjunction with the Hyperpod frame and end-cap assemblies to complete that thermal barrier.

At 15mm thick and finished in black, this panel is a structural closure component — not an active device. Its value is purely in completing the containment envelope: an unsealed roof section is a thermal leak that undermines the entire containment investment.

Key Features

• 600mm Width, 2056mm Depth: Sized to cover a standard 600mm-wide rack bay footprint across a 6-foot aisle span. Matching panel width to your rack row width is critical — a mismatch leaves gaps that allow hot and cold air to intermix, negating containment efficiency gains.
• 15mm Panel Thickness: Low-profile enough to fit within tight overhead clearances common in retrofitted data halls while still providing a continuous, rigid surface with no flex that could create gaps at seams.
• Black Finish: Matches standard APC Hyperpod frame and NetShelter rack aesthetics — relevant in co-location or customer-facing data centers where visual consistency across the containment system matters.
• UL, cUL, and CE Certified: Meets North American (UL and cUL) and European (CE) safety standards. For facilities that require third-party certification on all installed components — common in financial, healthcare, and government data centers — this panel clears those gates without an exemption request.
• 1-Year Manufacturer Warranty: Standard APC warranty coverage applies from date of purchase, providing recourse for manufacturing defects on what is a long-lifecycle passive component.
• Designed for Hyperpod Simple Roof Configuration: The "simple roof" designation means this panel is the flat-panel variant — no integrated cable cutouts or lighting provisions — keeping installation straightforward where overhead infrastructure penetrations are not required in the containment zone.

Integration & Compatibility

The FS-RF-2005-U (often searched as FS RF 2005 U) is engineered as a component of APC's Hyperpod aisle containment system. Compatibility is specific to the Hyperpod frame family — do not assume this panel fits third-party containment rail systems without verifying dimensional compatibility with those systems' roof track specifications. The 600mm width targets the standard 600mm rack-row footprint; if your row uses 750mm wide racks, you will need the corresponding wider panel variant instead.

For a complete aisle containment installation, this roof panel pairs with Hyperpod vertical posts, horizontal rails, and aisle end-cap assemblies. Plan your panel count based on the linear depth of your contained aisle divided by the 2056mm panel depth — partial-bay coverage at aisle ends typically requires a cut panel or a filler kit, which should be confirmed against APC's Hyperpod configurator before ordering.

When integrating into an existing data center cooling layout, coordinate the containment envelope design with your CRAC/CRAH unit placement and airflow modeling. Roof panels alone do not deliver efficiency gains if the aisle end seals or door assemblies are incomplete — the containment system only performs when every segment of the envelope is closed.

Frequently Asked Questions

Q: What aisle width does the FS-RF-2005-U cover?

A: The FS-RF-2005-U is 600mm wide and 2056mm (approximately 6 feet) deep, designed to cover a single 600mm rack-row bay along a standard aisle span.

Q: What certifications does the FS-RF-2005-U carry?

A: The FS-RF-2005-U is certified to UL, cUL, and CE standards, covering North American and European safety requirements.

Q: What is the warranty on the FS-RF-2005-U?

A: APC provides a 1-year manufacturer warranty on the FS-RF-2005-U.

Q: Is this panel compatible with non-APC containment frame systems?

A: The FS-RF-2005-U is designed specifically for the APC Hyperpod aisle containment system. Compatibility with third-party containment frame systems is not verified by the manufacturer and should be confirmed against dimensional specifications before ordering.

Q: How many panels do I need for my aisle?

A: Each FS-RF-2005-U panel covers approximately 2056mm of aisle depth. Divide your total aisle depth by 2056mm to determine the panel count. Account for partial bays at aisle ends, which may require a filler or cut panel — verify with APC's Hyperpod configurator for your specific layout.

Eden Phillips

The FS-RF-2005-U is the roof closure panel for the APC Hyperpod simple containment system — 600mm wide, 2056mm deep, 15mm thick, and exactly as unglamorous as it sounds. What it does is seal the top of your contained aisle, and that seal is the whole job. I have seen containment retrofits where the frame and end caps were installed correctly but roof panels were back-ordered and temporarily skipped — the cooling efficiency numbers did not move until every panel was in place. That 15mm sheet is doing real thermal work.

Technical Highlights:

• 600mm x 2056mm footprint: Matches a standard 600mm rack-row bay across a 6-foot aisle depth — one panel per bay, count your bays before you order. Under-ordering by one panel leaves an open section that bleeds conditioned air directly into the hot side.
• UL, cUL, CE certification: Clears the third-party safety certification requirements common in financial services, healthcare, and government data halls without requiring a component exemption from your facilities team.
• 1-year manufacturer warranty: Passive structural component with a straightforward warranty — for a part expected to outlast multiple generations of active equipment, the key is confirming you have the right quantity on hand at installation so you are not re-opening a warranty claim on a damaged panel found months later.

Deployment Considerations:

• Count panels precisely before ordering: aisle depth divided by 2056mm, rounded up, then verify whether your aisle end condition needs a partial filler. The Hyperpod configurator is the right tool for this — do not guess on quantities for a containment build.
• The 'simple roof' designation means no integrated cable cutouts. If your aisle has overhead cable runs that need to penetrate the containment roof, you need the appropriate Hyperpod cable cutout panel variant rather than this one — installing this panel and field-cutting it voids the clean seal and may affect certification compliance.

Deploy the FS-RF-2005-U in a 600mm-row hot-aisle containment build in any data center environment where third-party safety certification on all installed components is a facilities requirement — co-location, financial services, or healthcare data halls where the certifications list is reviewed at commissioning.
