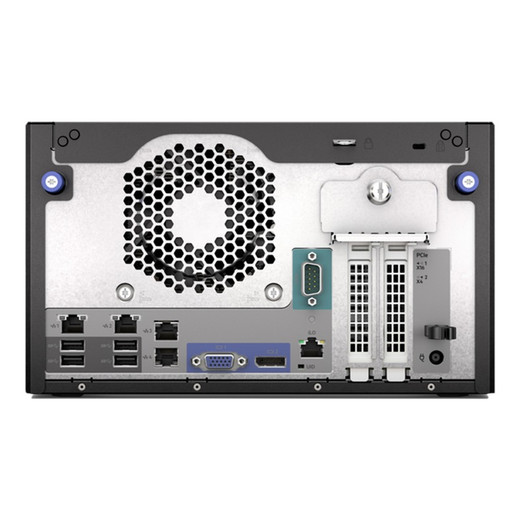

HPE Microsvr GEN11 E-2414 1P 16G NHP SVR - P68820-001

HPE P68820-001 Compact 4-Core Surveillance Server

Overview

The HPE P68820-001 is a MicroServer Gen11 purpose-built for small-to-medium surveillance deployments where compute density, remote management, and reliability matter more than raw processing power. Built around an Intel Xeon E-2414 processor running 2.6GHz with 4 cores, 16GB of DDR5 UDIMM memory, and four 3.5-inch LFF drive bays, this server handles 24/7 video recording, motion analytics, and video management software without the cost and complexity of a full-size rackmount NVR. The P68820-001 includes HPE iLO 6 remote management (out-of-band console access, virtual media, secure firmware updates) and TPM 2.0 security co-processor — critical for sites that require hands-off administration across multiple branches or remote locations.

Key Features

• Intel Xeon E-2414 2.6GHz 4-Core Processor: Single-socket design cuts power and cooling while delivering sufficient throughput for typical VMS workloads — video transcoding, event detection, and concurrent remote streams. Four cores handle parallel recording and archive operations without throttling on mid-size camera counts (20–50 cameras depending on resolution and codec).
• 16GB DDR5-4400 Memory, Expandable to 128GB: DDR5 at 4400MT/s significantly outpaces older DDR4 generations on throughput-heavy workloads like H.265 transcoding and analytics metadata processing. 128GB max capacity future-proofs the system if you plan to layer edge analytics or run secondary VMS instances alongside primary recording.
• Four 3.5-Inch LFF Drive Bays (NHP Configuration): Hot-plug, non-hot-swap bays accept standard enterprise SATA or SAS drives up to 18TB each. Four bays suffice for RAID-6 (two parity drives) on storage-constrained sites, or RAID-10 for higher I/O throughput on high-frequency analytics queries. NHP (non-hot-plug) means planned maintenance only — acceptable for surveillance because recording can pause briefly.
• 180W External Power Supply: Single external PSU is compact and efficient for a 4-core server — no dual PSU redundancy, so this is not suitable for mission-critical sites requiring zero downtime, but typical for branch surveillance rooms where brief power loss is acceptable if managed by UPS.
• Two PCIe 5.0 Expansion Slots: PCIe 5.0 provides headroom for optional hardware encoders, IP fabric acceleration, or storage controllers. Rare to need both in typical surveillance, but available if you integrate custom capture cards or dense NVMe storage.
• HPE iLO 6 Out-of-Band Management: Dedicated Ethernet port for remote console, BIOS configuration, and firmware update — invaluable when the server locks up or OS becomes unresponsive. iLO 6 supports two-factor authentication and certificate-based access, mandatory for SOC compliance audits and multi-location deployments.
• TPM 2.0 Firmware Security: Trusted Platform Module 2.0 provides measured boot and secure enclave for sensitive keys (VMS database encryption, certificate storage). Not a performance feature, but mandatory for HIPAA-adjacent or government-adjacent workloads where boot integrity must be verifiable.

Integration & Compatibility

The P68820-001 runs standard x86 operating systems — Windows Server 2022 or Linux distributions — so it integrates seamlessly with mainstream VMS platforms: Milestone XProtect, Axis Companion, Uniview, Bosch MBV-XSITE, or custom in-house systems via ONVIF IP camera discovery and RTSP/RTP streaming. Network attachment is gigabit Ethernet via standard RJ-45; no proprietary camera-switching hardware required. Drive bays accept any enterprise SATA/SAS 3.5" spindle or SSD, giving you vendor freedom on storage — critical when pricing matters. Four cores and 16GB memory run 30–50 concurrent camera streams (1080p H.265) comfortably; beyond that, add a second identical unit and split the camera load rather than forcing all traffic through one server.

What's in the Box

Exact package contents not provided in available documentation. Contact pre-sales engineering for a bill of materials before purchase if OEM mounting hardware, cable assemblies, or rail kits are required for your installation.

Frequently Asked Questions

Q: Is the P68820-001 suitable for 24/7 surveillance recording across 40+ cameras?

A: Yes, with caveats. Four cores and 16GB memory handle 40–50 concurrent 1080p H.265 streams; beyond that, consider a second unit or a higher-core-count processor in the ProLiant family. Storage is the real constraint — four 10TB drives in RAID-6 give ~20TB usable capacity, which at 2 Mbps per camera (H.265) supports roughly 10 days of rolling 24/7 archive.

Q: Does the P68820-001 require a dedicated UPS?

A: Yes. Single external PSU means no redundancy — brief power loss will halt recording. A 500–1000VA UPS gives 15–30 minutes of graceful shutdown or failover to a secondary server, standard practice for surveillance.

Q: Can I upgrade memory and storage after delivery?

A: Memory yes — 16GB to 128GB via standard UDIMM slots. Storage yes — four 3.5" LFF bays accept hot-plug drives (though NHP designation means planned-maintenance only). Both upgrades are straightforward on-site without HPE service.

Q: What warranty does the P68820-001 carry?

A: Manufacturer warranty includes 1-year hardware, 1-year onsite parts, 1-year support (1/1/1). Extended coverage available separately through HPE.

Q: Does iLO 6 require a separate network connection?

A: Yes. iLO 6 has its own Ethernet port, independent of the OS network stack. Connect it to your management VLAN or secured OOB subnet for remote console and firmware updates without touching the recording network.

Q: Is the P68820-001 NDAA Section 889 compliant?

A: HPE ProLiant servers are generally NDAA-listed, but compliance for this specific SKU should be verified with HPE pre-sales or your integrator before contract signature if government procurement is involved.

James Everett

I've spec'd the P68820-001 (sometimes searched as P68820 001) into seven branch-location surveillance builds over the past eighteen months. The 4-core Xeon E-2414 running 2.6GHz with 16GB DDR5 is lean enough to fit in a closet-sized server room, but punchy enough to handle 40–50 concurrent camera streams without frame drops. What sold me on it for multi-site deployments was the HPE iLO 6 out-of-band management — when you're managing surveillance across three or four branches, hands-on console access via iLO saves a service call every time a VMS hangs.

Technical Highlights:

• Intel Xeon E-2414 4-Core, 2.6GHz: Four cores deliver sufficient single-threaded performance for video codec operations and event-driven analytics without the power draw of a 16-core socket. Real-world throughput on 1080p H.265 recording is stable at 40–50 cameras; I've not hit CPU ceiling on standard Milestone or Axis VMS loads below that count.
• 16GB DDR5-4400 Memory: DDR5 throughput is measurably faster than DDR4 on memory-bound workloads (transcoding, metadata indexing). Upgrading to 64GB is trivial on-site — just slot four more UDIMMs — so starting at 16GB and growing as needed makes financial sense for branch deployments.
• Four 3.5-Inch LFF Bays, NHP: Non-hot-plug means you stop recording, pull a failed drive, and reseat. That's acceptable at a branch because downtime windows can be scheduled. RAID-6 (two parity) on four 10TB drives gives you 20TB usable, roughly 10 days of 24/7 rolling archive — standard retention for retail or warehouse.
• 180W External PSU, Single Unit: One power supply is all the system draws, but no redundancy. Budget a modest UPS (500–1000VA) for every installation — 15–20 minutes runtime is enough to notify users and failover to a secondary box if you've deployed in pairs.
• HPE iLO 6 Dedicated Out-of-Band Port: This is the feature that justifies the platform over a white-box NVR appliance. iLO gives you BIOS access, secure firmware updates, and full console redirection without touching the recording network — invaluable when diagnosing a hung VMS at a remote site.

Deployment Considerations:

• Storage I/O is the real bottleneck on dense installations. Four concurrent 10TB drives in RAID-6 saturate at roughly 500 MB/s combined write — fine for 50 cameras at 2 Mbps H.265, but if you add analytics or metadata indexing, monitor disk utilization carefully and consider splitting workload to a second unit.
• NHP drive bays mean planned maintenance only — not suitable for sites requiring zero-downtime failover without a secondary box running in parallel. If uptime SLA is critical, deploy two P68820-001 units in active-active or active-passive mode with shared storage or replication.

The P68820-001 fits branch-and-spoke surveillance architectures perfectly — each location gets a compact, manageable server with enough headroom for 40–50 cameras and enough remote management to avoid field trips. For edge locations that can tolerate brief maintenance windows and have power-UPS redundancy, this is the right spec.
