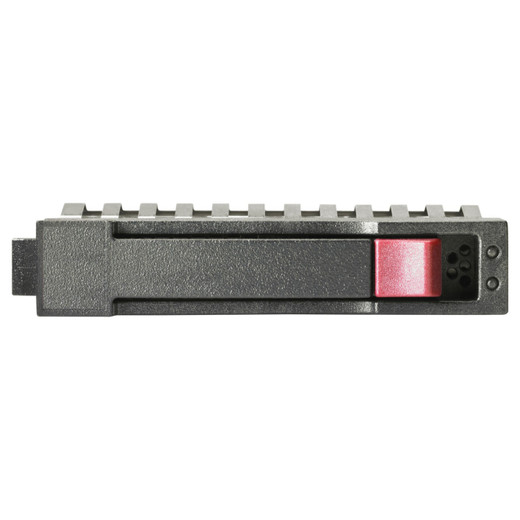

HPE 1TB 6G SATA 7.2K LFF MDL LP HDD - 861686-B21

HPE 861686-B21 1TB 6G SATA 7.2K LFF Midline Hard Drive

Overview

The HPE 861686-B21 is a 1TB Large Form Factor (LFF) SATA hard drive spinning at 7,200 RPM, positioned in HPE's Midline (MDL) tier for workloads that demand cost-effective bulk storage without the premium of enterprise SAS. The Low Profile (LP) designation signals physical compatibility with HPE's hot-plug LFF drive bays found across the ProLiant and Apollo server lines. If you're expanding storage in an HPE rack environment and need a straightforward, high-capacity spinning disk at a workable price per terabyte, the 861686-B21 is the drive to evaluate — particularly for secondary storage tiers, backup targets, and high-capacity surveillance recording repositories where sequential write throughput matters more than random IOPS.

Key Features

• 1TB Capacity: A full terabyte per bay gives you meaningful density in LFF configurations. For surveillance deployments recording at moderate bitrates, 1TB per drive translates to several days of continuous footage per spindle before cycling — useful as a baseline when sizing retention across a multi-drive array.
• 7,200 RPM Spindle Speed: The 7.2K rotation rate delivers better sequential throughput than 5,400 RPM nearline alternatives. For write-heavy workloads like continuous NVR recording or log aggregation, this matters: sustained write speeds stay more consistent under load, reducing the risk of dropped frames or write-buffer saturation during peak ingestion.
• 6Gb/s SATA Interface: The 6G SATA III connection keeps the drive compatible with any SATA II or SATA III backplane — backward compatible by design. In practice, the interface is not the bottleneck on a spinning disk at this capacity; the mechanical platter speed determines real-world throughput, so the 6G ceiling is headroom you won't saturate.
• Large Form Factor (LFF) — 3.5-inch: LFF bays are standard in HPE's higher-density storage configurations. Compared to SFF (2.5-inch) variants, LFF drives at this capacity tier are typically more cost-efficient per terabyte, making them the right call when you're filling a server with bulk storage rather than chasing a small footprint.
• Midline (MDL) Drive Class: MDL positions this drive between the cost-optimized entry tier and full enterprise SAS. It's engineered for environments with moderate duty cycles — not 24/7 at full random I/O, but well-suited to surveillance recording, backup repositories, and content archives where sequential access dominates. If your workload is OLTP or heavy random I/O, look at HPE's enterprise SAS line instead.
• Low Profile (LP) Form Factor: The LP designation confirms physical compatibility with HPE's hot-plug LFF carriers and drive bays in ProLiant rack and tower servers. This avoids the fitment issues that can arise when mixing drive profiles across generations of HPE hardware.

Integration and Compatibility

The 861686-B21 (often searched as 861686 B21) is an HPE-branded drive designed to integrate with HPE's SmartArray controllers and hot-plug LFF drive bays. HPE-sourced drives carry firmware tuned for HPE's storage stack, which means the drive will register correctly in HPE's Smart Storage Administrator and surface accurate health telemetry through iLO — behavior you won't reliably get from a white-label equivalent. For surveillance integrators deploying HPE ProLiant servers as NVR back-ends or archive nodes, the native HPE tooling integration simplifies health monitoring across a large drive population. Verify bay count and backplane revision against your specific ProLiant model before ordering — LFF bay configurations vary across the DL360, DL380, DL560, and ML series.

This drive is sourced factory-new through commercial channels. Genuine HPE drives carry the manufacturer warranty applicable to the part; confirm warranty terms with the reseller at time of purchase, as MDL drives carry different coverage periods than HPE's enterprise SAS line.

Frequently Asked Questions

Q: What interface does the HPE 861686-B21 use?

A: The 861686-B21 uses a 6Gb/s SATA (SATA III) interface, backward compatible with SATA II backplanes found in older HPE ProLiant generations.

Q: What is the spindle speed of the 861686-B21?

A: The drive spins at 7,200 RPM (7.2K), which provides better sequential throughput than 5,400 RPM nearline alternatives — relevant for write-heavy applications like surveillance recording.

Q: Is the 861686-B21 a 3.5-inch or 2.5-inch drive?

A: It is a Large Form Factor (LFF) drive, meaning 3.5-inch. Confirm your server chassis has LFF hot-plug bays before ordering; HPE also offers SFF (2.5-inch) variants in the same capacity tier.

Q: What workloads is the MDL (Midline) drive class suited for?

A: MDL drives target moderate duty-cycle workloads: surveillance video recording, backup repositories, content archives, and secondary storage tiers. For high-random-I/O workloads (OLTP, virtualization scratch), HPE's enterprise SAS drives are the appropriate alternative.

Q: Will the 861686-B21 work with HPE SmartArray controllers?

A: As an HPE-branded drive, it is designed for HPE's SmartArray controller ecosystem and will report health data correctly through iLO and HPE Smart Storage Administrator. Third-party or white-label drives may not surface the same telemetry in HPE's management stack.

James Everett

When I spec storage for HPE ProLiant-based NVR or archive builds, the 861686-B21 comes up regularly as the cost-per-terabyte anchor in LFF configurations. The 7,200 RPM spindle is what matters here — not the interface headroom of 6G SATA, which a mechanical drive at this capacity will never saturate, but the sustained write consistency you get from 7.2K versus a 5,400 RPM nearline alternative when you're writing continuous camera streams across multiple channels.

Technical Highlights:

• 7,200 RPM / 6G SATA: The 7.2K spindle keeps sequential write throughput consistent under sustained load — the practical requirement for multi-channel surveillance recording where you can't afford write-buffer saturation causing dropped frames.
• LFF (3.5-inch) Form Factor: LFF bays dominate HPE's higher-density ProLiant configurations (DL380 Gen9/Gen10 in LFF config = up to 12 bays). Filling those bays with 1TB LFF drives at MDL pricing is the standard approach for bulk archive tiers where you're not chasing IOPS.
• MDL Drive Class: Midline positioning means this drive is rated for the duty cycles typical of surveillance and backup workloads — predominantly sequential, moderate random I/O — without the cost premium of HPE's enterprise SAS line that you'd only justify on OLTP or high-virtualization scratch.

Deployment Considerations:

• Confirm LFF hot-plug bay compatibility against your exact ProLiant model and generation before ordering — HPE's LFF bay count and backplane revision vary meaningfully across DL360, DL380, DL560, and ML lines, and the wrong carrier profile means the drive won't seat correctly.
• MDL drives carry a different warranty and duty-cycle rating than HPE's enterprise SAS portfolio — if your recording environment runs sustained 24/7 random I/O rather than predominantly sequential writes, the MDL tier is undersized for that workload and you should move up to HPE's enterprise SAS line.

The 861686-B21 is the right call for HPE ProLiant deployments used as surveillance NVR back-ends or tiered archive nodes — specifically where you need LFF density, sequential-write consistency from a 7.2K spindle, and native HPE management integration without paying enterprise SAS pricing for a workload that doesn't demand it.
