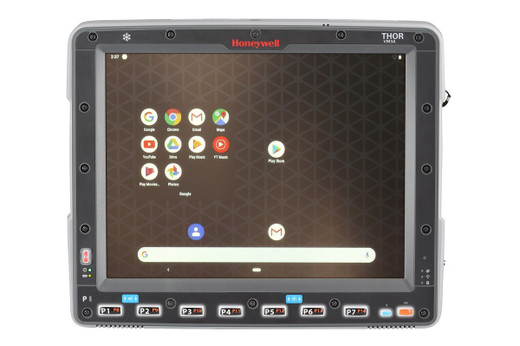

Honeywell Thor VM3A Vehicle-Mount Computer

Honeywell Thor VM3A Vehicle-Mount Computer

The Honeywell Thor VM3A (VM3A-L0N-1A4B20E) is a rugged, full-size vehicle-mounted computer designed for demanding warehouse, distribution, and fleet operations. Built on the Honeywell Mobility Edge platform, this device delivers reliable performance in challenging mobile environments with enterprise-grade durability and connectivity.

Key Features

• 12.1-inch XGA capacitive touchscreen (1024 x 768) with full multi-touch support
• Qualcomm Snapdragon 660 octa-core 2.2 GHz processor with 4 GB RAM
• 32 GB eMMC storage, expandable to 512 GB via microSD
• IP66 rated—fully sealed against dust and high-pressure water jets
• Wi-Fi 5 (802.11 a/b/g/n/ac) 2x2 MIMO with Bluetooth 5.0 and NFC
• Single Micro SIM slot for optional WWAN connectivity
• Android ML (non-GMS) with upgrade path to Android 13
• Quick-mount smart dock with field-replaceable front panel
• Operates -20°C to 50°C; rated for MIL-STD-810G shock and vibration

Technical Highlights

The VM3A's 12.1-inch capacitive display provides intuitive gesture-based navigation and responsive touch input for gloved or bare-hand operation. Its industrial-grade build exceeds MIL-STD-810F composite vibration standards and SAE-J1455 shock testing, ensuring reliability across warehouse and vehicle fleet deployments.

Connectivity is comprehensive: Wi-Fi 5 with internal antennas and two external antenna ports deliver extended range across large facilities. Bluetooth 5.0 enables pairing with scanners, headsets, and other peripherals, while the Ethernet RJ45 and USB ports on the dock provide wired options when needed. The 10-60V DC isolated dock power supply includes UPS battery backup for continuous operation during vehicle power transitions.

Running Android ML with an upgrade path to Android 13, the VM3A offers extended lifecycle OS support and access to the Honeywell Mobility Edge ecosystem. A 1-year Device Client Pack (DCP-SFT1) license is included. The unit ships without scan engine or camera, allowing organizations to integrate their preferred external scanning and imaging peripherals via USB 2.0 or Bluetooth.

Applications

Ideal for mobile warehouse operations, delivery fleet management, inventory tracking, and field service operations where operators require a full-size touchscreen interface with industrial durability and reliable connectivity in unpredictable environments.
