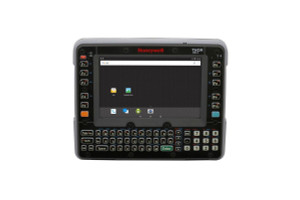

Honeywell VM1A-L0N-1A1A20F RB Enterprise Mobile Computer

Honeywell VM1A-L0N-1A1A20F RB Enterprise Rugged Mobile Computer

The Honeywell VM1A-L0N-1A1A20F RB is a vehicle-mounted enterprise mobile computer purpose-built for warehouse, manufacturing, field service, and logistics deployments where durability and processing power cannot be separated. This is not a consumer tablet repurposed for industry — it is a sealed, mission-critical computing platform designed to operate continuously in environments where water spray, dust, temperature extremes, and mechanical shock are the norm rather than the exception.

Key Features

• IP66 sealed construction: Dust and water ingress protection means the device survives washdown environments, outdoor rain, and muddy field conditions without housing degradation or port failure. This is mandatory for vehicles operating in agricultural, logistics, or wet manufacturing settings — skip this if you need full submersion (IP67 or higher).
• Qualcomm Snapdragon 660 Octa-Core 2.2 GHz processor: Eight cores balanced for efficient multitasking without excessive power drain — handles real-time barcode scanning, WMS application polling, GPS mapping, and voice communication simultaneously without lag. This generation processor avoids the battery penalty of cutting-edge silicon while delivering reliable performance for 8-to-10 hour shifts.
• 8-inch WXGA display (1280 x 800): Screen real estate strikes the critical balance for vehicle-mounted use — large enough to display picking lists, route maps, and label scans without excessive glare reflections, but compact enough to fit mounting brackets on delivery vehicles, forklifts, or service trucks. WXGA resolution delivers adequate clarity for barcode scanning from standard working distances (6–12 inches).
• Day/night vision capability: Integrated low-light imaging allows the device to function indoors in dim warehouse environments and outdoors in dawn/dusk operations without external illumination. Critical for early-morning delivery routes and nightshift warehouse picking where headlamp-mounted cameras or flashlights are impractical.
• 6000 mAh Li-Ion battery: Rated for full-shift operation, eliminating mid-day charging breaks on active delivery or warehouse routes. Actual runtime depends on display brightness and connectivity load, but a 6000 mAh capacity in this power envelope typically sustains 8–10 hours of moderate-to-heavy use.
• WiFi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.2: WiFi 6 adoption ensures forward compatibility with modern enterprise network infrastructure and delivers better throughput in congested warehouse RF environments compared to older WiFi 5 standards. Bluetooth 5.2 extends pairing range and stability when connecting to printers, mobile label scanners, or vehicle dock systems.
• Optional 5G connectivity: For organizations deploying vehicles beyond WiFi coverage (cross-country routes, rural service areas, remote job sites), 5G uplink maintains real-time WMS and CRM synchronization without waiting for WiFi clusters at distribution centers.
• Android operating system: Leverages a mature ecosystem of enterprise scanning, WMS, inventory, and field service applications. Organizations can port existing Android-based warehouse workflows or select from a deep catalog of third-party mobile logistics software without rewriting code.
• microSD storage expansion: Adds local caching capacity for offline route data, mapping, or asset libraries — useful for vehicles operating in areas with intermittent connectivity.
• Vehicle-mount optimized design at 2.1 kg: Weight and form factor engineered for dashboard or windshield mounting brackets without creating blind spots or imbalance. 2.1 kg is heavy enough to resist vibration and road shock but light enough to avoid physical strain during mounting/removal cycles.

Enterprise Deployment Scenarios

The VM1A-L0N-1A1A20F RB is deployed in warehouse picking operations where order pickers navigate long aisles using GPS-guided routes and real-time inventory sync, in delivery logistics where drivers confirm addresses, capture signatures, and update status at each stop, and in field service operations where technicians access repair documentation, parts inventory, and customer history from the vehicle before entering a site. Manufacturing plants use vehicle-mounted units on production floor material handling carts to track component traceability and quality checkpoints during line operations.

Integration & Connectivity

The VM1A-L0N-1A1A20F RB integrates with enterprise WMS platforms (SAP, Oracle NetWeave, Manhattan Associates) and field service management systems via standard Android APIs and HTTPS REST communication. WiFi 6 and optional 5G ensure connectivity in high-density warehouse RF environments and cross-territory logistics operations. Bluetooth 5.2 pairs with peripheral barcode scanners, thermal printers, and asset-tracking accessories. The device supports mobile device management (MDM) platforms including Samsung Knox, Honeywell Equinox, and third-party EMM providers for fleet provisioning and remote policy deployment.

Frequently Asked Questions

Q: Is the VM1A-L0N-1A1A20F RB suitable for outdoor all-day operation without a vehicle mount?

A: The device is engineered for vehicle-mounted use, where it remains mounted to a dashboard or window bracket. Handheld outdoor operation across full shifts will drain the 6000 mAh battery faster due to sustained display brightness and cellular load. If your deployment requires handheld outdoor mobility for extended periods, confirm battery endurance with your application profile before committing to a fleet purchase.

Q: Does the day/night vision mode require external lighting setup?

A: Day/night vision is integrated into the display and image processing — no external camera module or lighting rig is required. The feature allows the device to render screen content and capture barcode images in dim or nighttime conditions, but it does not replace headlamps or flashlights for illuminating physical surroundings during actual warehouse or field work.

Q: Can I use the VM1A-L0N-1A1A20F RB with existing Honeywell mobile computer mounting hardware?

A: Confirm mounting compatibility with your specific bracket or cradle. The VM1A uses industry-standard vehicle mount connector profiles, but bracket slot and weight ratings vary across accessory product lines. Consult the mounting hardware documentation for weight and form-factor clearance before ordering.

Q: What is the warranty coverage on the VM1A-L0N-1A1A20F RB?

A: Standard warranty terms are available from the equipment vendor or authorized reseller. Confirm coverage scope (parts, labor, accidental damage, battery replacement cycles) when placing an order, as terms vary by channel and region.

Q: Does optional 5G require a separate modem or SIM card?

A: The VM1A-L0N-1A1A20F RB supports optional 5G connectivity when configured at time of order. 5G capability requires carrier SIM provisioning and active service plan — coordinate with your mobile carrier for fleet deployment logistics and cost modeling.

Q: How does the Snapdragon 660 handle intensive real-time scanning and WMS synchronization simultaneously?

A: The octa-core architecture distributes barcode processing, screen rendering, and network I/O across independent cores, preventing single-threaded bottlenecks. For sustained high-volume scanning (100+ items per hour), test your specific WMS client application with the device to confirm performance meets your operational cadence.

Marty Allison

The Honeywell VM1A-L0N-1A1A20F RB represents a mature, proven segment in Honeywell's mobile computing lineup — the vehicle-mounted rugged tablet. IP66 sealing combined with day/night vision capability signals that this device is purpose-engineered for environments where washing, dust, and variable lighting are operational realities, not edge cases. The Snapdragon 660 octa-core processor is neither cutting-edge nor obsolete; it occupies a deliberate sweet spot that balances processing throughput, power efficiency, and thermal stability — critical when a device spends 10 hours bolted to a sun-exposed dashboard.

Technical Highlights:

• Snapdragon 660 Octa-Core 2.2 GHz: Distributes barcode scanning, WMS polling, and real-time GPS mapping across independent processor cores without creating thermal or battery-drain bottlenecks. Older quad-core architectures would force sequential task switching, introducing latency during high-volume picking or multi-route optimization scenarios.
• 6000 mAh battery with vehicle-mount form factor: The capacity is sized for 8–10 hour logistics and warehouse shifts, but actual endurance depends critically on display brightness setting and cellular/WiFi duty cycle. In high-brightness direct-sun scenarios, expect 6–8 hours; in climate-controlled warehouse settings, 10+ hours is achievable. GPS and real-time cloud sync will consume more power than local-only barcode scanning.
• WiFi 6 and optional 5G: WiFi 6 delivers measurable throughput improvements in crowded warehouse RF environments where dozens of other wireless devices (access points, mobile devices, IoT sensors) operate simultaneously. Optional 5G addresses the critical gap for cross-territory logistics where vehicles operate beyond WiFi range for extended periods — this is not a marketing bullet, it is a genuine connectivity requirement for national fleet operations.
• 8-inch WXGA display (1280 x 800): This resolution and size combination is deliberately tuned for vehicle-mounted barcode scanning at working distances of 6–12 inches. It is larger than handheld units (which typically top out at 5 inches), providing better visibility in sunlight, but smaller than full-size tablets (10 inches+), which overheat faster in vehicle enclosures and demand more mounting real estate.

Deployment Considerations:

• Vehicle mounting infrastructure: The VM1A is engineered for dashboard or windshield brackets — confirm that your fleet vehicles have compatible mounting hardware or budget for bracket sourcing, installation labor, and cable routing (USB power, optional barcode scanner tethering) before deploying across 50+ units. A poorly planned mounting installation can create safety blind spots or cable strain that fails within weeks.
• Battery management in hot-climate operations: While the device is IP66-sealed, sustained ambient temperatures above 45°C (113°F) will degrade lithium-ion battery cycle life and reduce peak output capacity. Organizations operating in desert logistics, southern agricultural routes, or unshaded parking lots should monitor thermal conditions and consider periodic battery replacement in warranty terms.
• WMS application testing is non-negotiable: The Snapdragon 660 is capable, but your specific WMS client (SAP, Oracle, Manhattan, Zebra, Impinj, or custom-built Android applications) must be validated against the VM1A's processor and RAM configuration. Conduct pilot testing with 10–20 devices before fleet-wide rollout — a poorly optimized WMS client can saturate processor cores and create the illusion that hardware is undersized when the issue is software tuning.

The VM1A-L0N-1A1A20F RB is the right choice for logistics, warehouse, and field service operations where vehicles are the primary work platform and connectivity must bridge WiFi-rich warehouses with outdoor areas beyond network reach. It is not the choice for mobile technicians who work primarily on foot or for handheld scanning-only deployments where an 8-inch screen and 2.1 kg weight would be burdensome. Confirm fleet-wide connectivity strategy (WiFi infrastructure, optional 5G carrier terms, SIM provisioning) and application compatibility before committing to volume orders.
