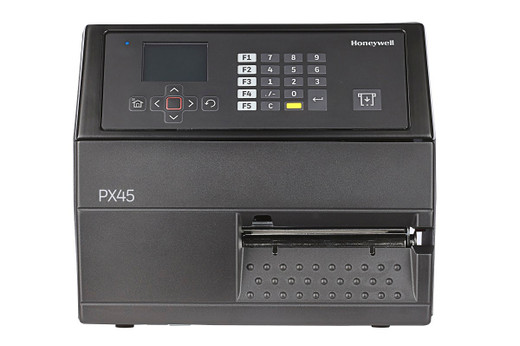

Honeywell PX45A00000020200 Industrial Thermal Label Printer

Honeywell PX45A00000020200 Industrial Thermal Label Printer

The Honeywell PX45A00000020200 is a production-grade thermal label printer engineered for warehouse, manufacturing, and logistics operations where print speed and barcode scan reliability directly impact throughput. This model delivers 203 DPI thermal transfer output at 300 mm/s (12 ips), the industry standard for high-volume GS1-128, Code 128, and 2D matrix code printing. The integrated rewinder with label taken sensor automates label dispensing, eliminating manual stack management and enabling unattended production runs.

Key Features

• Print Speed & Resolution: 300 mm/s at 203 DPI produces scan-ready barcodes with crisp edges across your entire supply chain — no fuzzy or misread codes that trigger reprint cycles and operational delays.
• Maximum Print Width: 112 mm (4.4 in) in direct thermal mode or 110 mm (4.3 in) in thermal transfer mode, accommodating standard 4x6 shipping labels, product tags, and compliance stickers without size-related job rejection.
• Rewinder with Label Taken Sensor: Automatically detects when each label exits the printer and advances the next one into position. Reduces operator attention, cuts label waste from misfeeds, and allows overnight or weekend production runs without supervision.
• Memory Architecture: 256 MB SDRAM and 512 MB Flash handle complex label templates with dynamic data merging (barcodes, sequential numbering, graphics) without throughput degradation — critical for pharmaceutical, food-and-beverage, and automotive supply chains where each label carries conditional or time-sensitive information.
• Multi-Emulation Support: Native ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL language emulation means zero reprinting or driver reconfiguration when consolidating legacy Zebra, Datamax, or Sato printer installations. One device handles multiple fleet-wide label formats.
• Connectivity Options: Dual Ethernet (10/100 Mbps) and USB 2.0 (Device and Host) ports enable direct integration with warehouse management systems, inventory platforms, and enterprise resource planning tools. RS-232 serial connection supports legacy WMS environments without gateway hardware.
• Industrial Environment Tolerance: Operating range of 5 to 40°C (41 to 104°F) and humidity tolerance of 10–90% non-condensing confirm design for dock-level, production-floor deployment — not confined to climate-controlled offices. Extended storage capability (-20 to 70°C) simplifies inventory rotation and seasonal equipment moves.
• Compact Footprint with Heft: Measures 275 × 482 × 238 mm (10.8 × 19.0 × 9.4 in) and weighs 12.6 kg (27.8 lbs). Small enough for a pallet station, solid enough to withstand repeated label roll changes and vibration from nearby dock equipment without calibration drift.
• Color LCD Operator Display: Intuitive interface for job selection, supply monitoring, and error diagnostics — reduces training burden and speeds troubleshooting when print quality issues arise.
• Global Power Support: Dual power cord configuration (US and EU standards) eliminates regional power supply complexity for organizations operating across multiple countries or planning international equipment transfers.

Integration & Deployment Considerations

The PX45A00000020200 integrates directly into existing label ecosystems without requiring print server middleware. Native emulation support means your current label templates (ZPL II format files, for example) work immediately upon network connection. Ethernet connectivity allows centralized printer management and queued label jobs across multiple workstations or production zones. The rewinder mechanism is particularly valuable in high-volume environments: a single operator station can feed blank roll stock and run unattended shifts, with the label taken sensor preventing paper jams and overrun stacks that trigger costly reprints.

Direct thermal mode (no ribbon consumption) is lower-cost but suitable only for temporary or short-shelf labels (shipping, picking tickets); thermal transfer mode preserves label legibility for permanent product identification, regulatory compliance, and traceability labels where barcode readability is audited months or years later.

Frequently Asked Questions

Q: What is the difference between direct thermal and thermal transfer mode on the PX45A00000020200?

A: Direct thermal uses heat to activate dark pigment in the label media itself — faster, lower operating cost, but labels fade under UV exposure or heat within weeks. Thermal transfer prints onto labels via an inked ribbon, producing permanent, fade-resistant barcodes suitable for regulatory traceability and long-shelf-life compliance labels. Choose direct thermal for transient shipping labels or picking tickets; thermal transfer for product IDs, pharmaceutical tracking, or any label that must remain scannable beyond 90 days.

Q: Can the PX45A00000020200 work with my existing Zebra or Datamax label templates?

A: Yes. The printer supports ZPL II (Zebra) natively, along with ZSim2, Direct Protocol, Fingerprint, and IPL emulations. If your labels are in ZPL II format, they will print without modification. If they use proprietary Datamax or Sato syntax, you may need to convert them, but the multi-emulation architecture is designed specifically to avoid fleet-wide reprinting during consolidation.

Q: What happens if I try to print a label wider than the PX45A00000020200 supports?

A: The printer will reject or truncate the job, resulting in incomplete barcodes and failed label rejects. Verify your label template width (max 110 mm in thermal transfer mode, 112 mm in direct thermal) before commissioning. Most standard 4×6 shipping labels fit comfortably.

Q: Does the rewinder come standard on the PX45A00000020200?

A: The model PX45A00000020200 is factory-configured with the rewinder and label taken sensor. If you require a peel-and-present configuration instead, you will need a different SKU variant. Confirm your label dispensing requirement (rewinder vs. peel-and-present) before purchase.

Q: What are the minimum cooling requirements between long print runs?

A: The PX45A00000020200 is rated for continuous 300 mm/s operation within the stated 5–40°C ambient range. In production environments, allow brief idle time (5–10 minutes per hour) to avoid thermal head stress, especially in ambient temperatures above 35°C. Thermal head lifespan is directly affected by duty cycle and ambient heat.

Q: Can I use the PX45A00000020200 without a network connection?

A: Yes. The printer supports USB 2.0 Device and Host connections, as well as RS-232 serial. You can operate it directly from a single workstation or legacy serial system. Ethernet is optional and useful for centralized management across multiple label stations, but not required for single-printer deployments.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PX45A00000020200 represents Honeywell's commitment to production-scale labeling without over-specification or enterprise software bloat. The 203 DPI / 300 mm/s combination is the proven standard for barcode printing in logistics — sufficient for GS1-128, Code 128, and Data Matrix 2D codes that your carriers, retailers, and regulatory bodies expect. The rewinder with label taken sensor eliminates the operator workload of manual label stack management, and enables unattended production shifts — valuable in 24/7 warehouse environments where labor overhead directly compresses margins.

Technical Highlights:

• Memory Configuration (256 MB SDRAM / 512 MB Flash): Handles template complexity common in pharmaceutical, food-and-beverage, and automotive supply chains where dynamic data merging (lot numbers, expiration dates, barcodes, graphics) is non-negotiable. No throughput loss under load.
• Multi-Emulation Support (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): Organizations consolidating legacy Zebra, Datamax, or Sato printer fleets can migrate to a single device model without reprinting templates or reconfiguring drivers. Eliminates capital waste and integration rework.
• Industrial Temperature Tolerance (5–40°C operating, -20 to 70°C storage): Confirms dock-level, production-floor deployment, not office-only. Humidity tolerance of 10–90% non-condensing handles warehouse condensation swings without calibration drift.

Deployment Considerations:

• Direct thermal mode (112 mm max width) is lower-cost but suitable only for temporary labels; thermal transfer (110 mm max width) is required for permanent product IDs and regulatory traceability where barcode legibility is audited months or years later.
• The rewinder is standard on this SKU (PX45A00000020200). If you need peel-and-present or cutter functionality instead, verify the correct variant before order — SKU changes are easier pre-purchase than post-deployment.
• Ambient temperature above 35°C reduces thermal head lifespan. Plan brief idle cycles (5–10 min per hour) during peak production in hot dock environments.

For operations requiring high-speed label throughput (50–200 labels per minute) without specialized networking infrastructure or multiple-printer load balancing, the PX45A00000020200 delivers measurable ROI through reduced label waste, faster dock operations, and minimal integration overhead. It is particularly valuable in smaller-to-mid-size shipping operations and manufacturing facilities where a single station must handle 500–2000 labels per shift.
