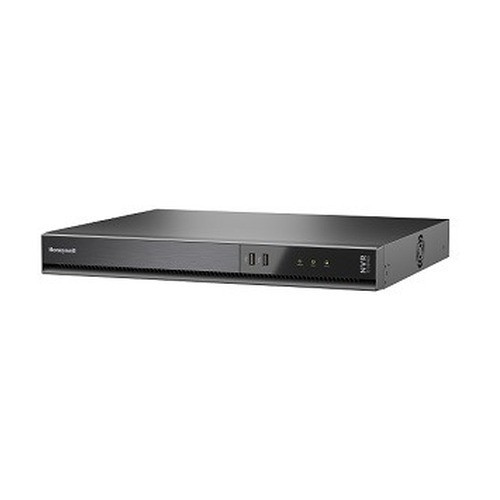

Honeywell HN35320893NR 32-Channel 4K NVR with 8-Bay RAID Storage
Overview
The Honeywell HN35320893NR is a 32-channel, 4K-capable network video recorder built for mid-to-large commercial deployments where storage depth, image fidelity, and drive redundancy are non-negotiable. With eight SATA bays supporting up to 32TB of total capacity and onboard RAID, this unit is sized for environments that need weeks of continuous retention across dozens of cameras — think multi-building campuses, large retail footprints, or municipal facilities. It ships without PoE switching built in, which is the right call when your camera infrastructure already runs through a managed PoE switch layer and you don't want NVR-integrated PoE creating a single point of failure for both recording and power. Explore the broader Honeywell video surveillance line if you're evaluating the full 35 Series family.
Key Features
- 32-Channel Capacity: Handles up to 32 IP cameras simultaneously — enough headroom for a full-building deployment without daisy-chaining multiple recorders or managing split retention pools across units.
- 4K Recording Support: Native 4K ingestion means you're not downsampling from your high-resolution cameras at the recorder level. That matters when footage is pulled for forensic review — what the camera captured is what gets recorded.
- 8 SATA Bays / 32TB Max: Eight drive bays with a 32TB ceiling gives you room to scale storage as retention requirements grow. Pair with high-capacity surveillance-rated drives (CMR, not SMR) to hit that ceiling reliably under 24/7 write loads.
- RAID Support: Onboard RAID protects against single-drive failure without losing recorded footage — a practical requirement for any deployment where evidence continuity has legal or compliance implications. Confirm the RAID modes supported (RAID 1, 5, 6, or 10) with your integrator before drive selection.
- Non-PoE Architecture: The absence of integrated PoE is a feature in enterprise designs, not a limitation. Your camera power infrastructure stays independent from your recording infrastructure — a failed NVR doesn't black out cameras, and your PoE switch budget isn't constrained by recorder port count.
Integration & Compatibility
As part of Honeywell's 35 Series network video recorder platform, the HN35320893NR is designed to operate within Honeywell's broader IP video ecosystem. For multi-site deployments or VMS-centric architectures, verify ONVIF profile support and confirm compatibility with your chosen video management software prior to commissioning. Non-PoE deployment means you'll need a separate PoE switch layer sized to your camera count and wattage budget — plan that infrastructure in parallel with NVR procurement.
Frequently Asked Questions
Q: Does the HN35320893NR include PoE ports for connecting cameras directly?
A: No. The HN35320893NR is a non-PoE recorder. Cameras must be powered through a separate PoE switch or local power supplies. This is standard in enterprise designs where camera power and recording infrastructure are kept independent.
Q: What is the maximum storage capacity of the HN35320893NR?
A: The unit supports up to 32TB across its 8 SATA bays. Actual usable capacity depends on RAID configuration selected — RAID 5 or 6 will reduce net usable storage compared to JBOD or RAID 1 setups.
Q: How many cameras can the HN35320893NR record simultaneously?
A: The HN35320893NR supports up to 32 IP camera channels simultaneously, supporting 4K resolution input.
Q: What RAID modes does the HN35320893NR support?
A: The product is specified with RAID capability across its 8 SATA bays. Confirm supported RAID levels (RAID 1, 5, 6, 10) directly with Honeywell technical resources or your integrator, as specific mode support is not detailed in currently available documentation.
Q: Is the HN35320893NR compatible with third-party IP cameras?
A: Compatibility with third-party cameras depends on ONVIF profile support and codec compatibility. Verify with Honeywell's compatibility matrix before mixing camera brands in the same deployment.
The spec I keep coming back to on the HN35320893NR is the 8-bay, 32TB ceiling combined with RAID — that combination is what separates a recorder built for genuine enterprise retention from one that's just marketed at enterprise. At 4K continuous across 32 channels, storage burns fast, and having both the capacity headroom and drive redundancy baked in means you're not choosing between retention depth and fault tolerance.
Technical Highlights:
- 32TB / 8 SATA Bays: Enough physical capacity to run meaningful retention windows at 4K across a full 32-channel load — without immediately maxing out on day one. Scale drive capacity as your retention policy demands.
- RAID Architecture: Drive redundancy at the recorder level is essential when footage has evidentiary value. A single failed drive in a non-RAID recorder can mean unrecoverable gaps in your timeline — RAID eliminates that exposure.
- Non-PoE Design: In a 32-camera deployment, integrated PoE would mean 32 active PoE ports on the recorder itself — a thermal, power-budget, and single-point-of-failure concern. Keeping PoE on a dedicated switch layer is the cleaner enterprise architecture.
Deployment Considerations:
- Plan your PoE switch infrastructure in parallel — 32 cameras at 4K will likely include a mix of wattages (standard PoE at 15.4W through PoE+ at 30W). Size your switch PoE budget accordingly before the recorder arrives on site.
- Drive selection matters: use CMR (conventional magnetic recording) surveillance-rated drives, not SMR drives, in RAID arrays with continuous 24/7 write loads. SMR drives are not suited for this workload and can cause RAID rebuild failures.
This recorder is the right fit for a 20-to-32-camera campus or facility deployment where the integrator is already running a managed PoE switch layer, retention policy runs 30 days or longer at full resolution, and drive-level redundancy is a compliance or legal requirement — not just a nice-to-have.
