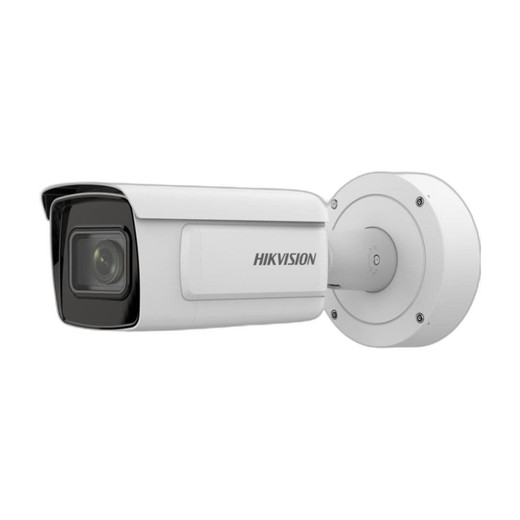

Hikvision iDS-2CD7A86G0-IZHSY 8MP DeepinView AI IR Bullet Camera
The Hikvision iDS-2CD7A86G0-IZHSY is a professional-grade 8MP outdoor bullet camera engineered for advanced surveillance applications requiring AI-driven intelligence and exceptional imaging performance. Built on Hikvision's DeepinView platform, this camera combines high-resolution 8MP imaging with sophisticated AI analytics, delivering precise object detection, classification, and tracking capabilities. The 1/1.8" progressive scan CMOS sensor captures 3840×2160 resolution at up to 30fps, ensuring detailed video footage suitable for critical identification tasks in enterprise security deployments.
Key Features
- 8MP 3840×2160 resolution at 30fps for superior image clarity
- Advanced AI analytics: simultaneous detection of humans, faces, and vehicles
- 120 dB Wide Dynamic Range (WDR) for balanced exposure in challenging lighting
- Dual varifocal lens options (2.8-12mm and 8-32mm) with motorized P-iris for flexible coverage
- Up to 218m detection range and 100m IR illumination with smart supplemental lighting
- IP67-rated aluminum alloy construction with IK10 vandal resistance
- PoE+ (IEEE 802.3at Class 4) powered for simplified installation
- Up to 1TB microSD storage with ANR and NAS support
- 20-channel simultaneous live view capability
Advanced Imaging Technology
The camera features intelligent 120 dB WDR processing combined with 3D DNR, BLC, and HLC algorithms to maintain image quality across extreme lighting conditions. With minimum illumination of 0.0002 Lux in black & white mode and 0 Lux with IR, the camera delivers reliable surveillance 24/7. The 850nm IR wavelength provides up to 100m supplemental lighting with smart intensity control, automatically adjusting output based on scene conditions.
AI Analytics & Detection
Multi-target detection identifies humans, vehicles, and faces simultaneously, with support for up to 120 face detections and 40 face captures per frame. Perimeter protection features include line crossing, intrusion, region entrance/exit, and queue management across 8 configurable zones. People counting capabilities provide real-time flow analytics, while heat mapping visualizes visitor patterns over time. Hard hat detection supports safety compliance monitoring with up to 30 simultaneous targets.
Connectivity & Storage
Gigabit Ethernet with comprehensive protocol support (HTTP/HTTPS, RTSP, FTP, SFTP, IPv4/IPv6) enables seamless NVR integration and cloud connectivity via Hik-Connect and Hik-Central platforms. H.265+/H.265/H.264+ encoding options optimize bandwidth efficiency. The camera supports up to 32 user accounts with role-based access control, 802.1X authentication, HTTPS encryption, and IP filtering for enterprise security requirements.
Ideal Applications
- Large outdoor perimeters and facility monitoring
- Critical infrastructure protection requiring long-range detection
- Retail analytics and people counting
- Traffic monitoring and vehicle detection
- Port and logistics facility surveillance
- Enterprise campuses with high-security requirements
Eden Phillips
The iDS-2CD7A86G0-IZHSY represents a comprehensive solution for organizations requiring AI-enhanced outdoor surveillance without custom integrations. The dual varifocal lens design accommodates both wide-area monitoring (112.3° FOV) and long-range identification (14.9° FOV), providing flexibility across diverse deployment scenarios. The 218m detection range with the 8-32mm lens outperforms many competing 8MP systems, making this camera suitable for sprawling outdoor environments.
Hikvision's multi-model AI approach supports detection, classification, and mixed models, allowing post-deployment algorithm updates without hardware replacement. The 120 dB WDR specification combined with smart IR supplementation addresses the persistent challenge of backlit and low-light surveillance. Integration of people counting, queue management, and heat mapping at the camera level reduces server-side processing overhead, making this platform cost-effective for large-scale deployments.
NEMA 4X anti-corrosion protection ensures extended lifespan in harsh coastal or industrial environments. PoE+ power delivery within IEEE Class 4 limits simplifies infrastructure design while maintaining full feature utilization.
Product Documentation
Specifications
Features:
AI
Frame Rate:
High
Sensor Type:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:
1 s to 1/100,000 s
Day & Night:
IR cut filter;Blue glass module to reduce ghost phenomenon
Aperture:
2.8 to 12 mm: F1.2 to F2.5;8 to 32 mm: F1.7 to F1.73
Iris Type:
P-iris
Focal Length & FOV:
2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3°;8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°
Focus:
Auto,Semi-auto,Manual
DORI:
Wide: 2.8 to 12 mm: D (Detect): 87 m, O (Observe): 34.5 m, R (Recognize): 17.4 m, I (Identify): 8.7 m;8 to 32 mm: D (Detect): 218 m, O (Observe): 86.5 m, R (Recognize): 43.6 m, I (Identify): 21.8 m;Tele: 2.8 to 12 mm: D (Detect): 216 m, O (Observe):
Supplement Light Type:
IR
Supplement Light Range:
2.8 to 12 mm: 50 m;8 to 32 mm: 100 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Model Specification:
Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model)
Main Stream:
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720);60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
Sub-Stream:
50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream:
50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream:
50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression:
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline Profile,Main Profile,High Profile
H.265 Type:
Main Profile
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
4 fixed regions for each stream
Target Cropping:
Yes
Bit Rate Control:
CBR,VBR
Audio Bit Rate:
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression:
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Type:
Mono sound
Environment Noise Filtering:
Yes
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View:
Up to 20 channels
API:
Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host:
Up to 32 users;3 user levels: administrator, operator, and user
Security:
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter
Network Storage:
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client:
iVMS-4200,Hik-Connect,Hik-Central
Web Browser:
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch:
Yes
Image Settings:
Saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch:
Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR:
120 dB
Image Enhancement:
BLC,HLC,3D DNR,Defog
SNR:
≥ 52 dB
Privacy Mask:
8 programmable polygon privacy masks
Image Stabilization:
EIS
Picture Overlay:
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Video Outputs:
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface:
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage:
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio Support:
With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm:
2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485:
With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key:
Yes
Power Output:
With -Y: 12 VDC, max. 100 mA
Basic Event:
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibrat
Smart Event:
scene change detection,audio exception detection,defocus detection
Linkage:
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Multi-Target-Type Detection:
Supports simultaneous detection and capture of human body, face, and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor v
Face Capture:
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with backg
Face Comparison:
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption
Perimeter Protection:
Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle);Support combined event alarm triggering
People Counting:
Supports Multi-Dimension People Counting, Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.), Supports real-time uploading and uploading by statistic cycle, Supports
Queue Management:
Supports up to 8 detection regions, and independent arming schedule and linkage method;Supports 2 detection modes: regional people queuing-up, waiting time detection;Generates reports to compare the efficiency of different queuing-ups and display the
Heat Map:
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Hard Hat Detection:
Detects up to 30 human targets simultaneously;Supports up to 4 shield regions
Metadata:
Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Regional People Counting:
Supports up to 8 detection regions, and independent arming schedule and linkage method;Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection;Supports parameter settings: alarm tim
On/Off Duty Detection:
Supports up to 8 detection regions, and independent arming schedule and linkage method;Supports 2 detection modes: absence detection, on/off duty detection;Supports parameter settings: person on duty, absence duration
Power Type:
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
Material:
Aluminum alloy body
Dimension:
Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7\");With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"
Package Dimension:
405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
Weight:
Approx. 1950 g (4.2 lb.)
With Package Weight:
Approx. 3070 g (6.7 lb.)
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition
General Function:
Heartbeat, mirror, password protection, one-key reset
Heater:
Yes
Device Management:
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
EMC:
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety:
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment Rating:
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection:
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection:
-Y: NEMA 4X (NEMA 250-2018)
Automotive And Railway:
EN50121-4
Other:
PVC FREE
CC:
Common Criteria, Assurance Level: EAL2 + ALC_FLR.2
Product Type:
Bullet
Connectivity:
Wired
IP Rating:
IP67
Night Vision:
IR
PoE Class:
4
Form Factor:
Bullet
Vandal Rating:
IK10
Max Channels:
20
Resolution:
8MP
Day/Night:
Yes
Analytics:
People Counting
Storage Support:
microSD
Outdoor Ready:
Yes
HTTPS Encryption:
Yes
WDR:
WDR
Lens Type:
Varifocal
Image Sensor Size:
1/1.8"
Horizontal Fov:
112.3°
Vertical Fov:
58°
Wide Dynamic Range:
WDR
