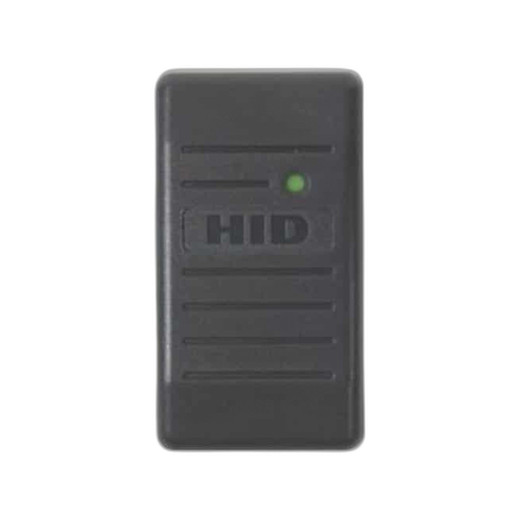

HID 6005BGB00 ProxPoint Plus 125 kHz Proximity Reader
The HID 6005BGB00 is a compact 125 kHz proximity reader engineered for mullion-mount installations where space constraints demand a mini form factor. This wired reader outputs 26-bit Wiegand data, which means it integrates directly with any standard access control panel supporting legacy proximity credentials—no translation hardware or firmware updates required. The gray housing blends into glass or metal mullions typical of commercial entrance deployments, making it an aesthetic fit alongside transparent doors and frameless storefront glazing.
Key Features
- 125 kHz Proximity Technology: Works with standard HID proximity cards and fobs already deployed across most enterprise facilities. No migration to modern credentials required if your existing card inventory is still serviceable.
- 26-bit Wiegand Output: Direct integration with access control panels supporting SIA Wiegand protocol—eliminates the need for converter modules or serial translation, reducing complexity and potential failure points in your wiring runs.
- Mini Mullion Form Factor: Designed to mount on door mullions (the vertical frame elements) with minimal protrusion. Fits retrofit scenarios where space between glass and frame is under 2 inches, a common constraint in existing storefronts and interior partitions.
- Gray Housing: Discrete color matches architectural metalwork and blends into typical commercial entrance aesthetics. Less noticeable than bright red or stainless finishes on high-visibility installations.
- Wired Connectivity: Powered and controlled via pigtail connector to your access control panel—no batteries, no wireless pairing, no cloud dependency. Suitable for locations with existing conduit runs or where wireless interference or latency is a concern.
- Field-Proven Compatibility: HID proximity readers are installed in millions of enterprise locations. This model integrates into retrofit and new-build scenarios where legacy 125 kHz technology meets both architectural requirements and budget constraints.
Integration & Compatibility
The 6005BGB00 integrates with any access control panel supporting standard SIA 26-bit Wiegand input. Common platforms include Salto, Kaba, Allegion, and many mid-market proprietary systems. Wiegand is a mature, battle-tested protocol—no integration risk or driver delays. The pigtail connector simplifies field termination to reader terminals; typical installation involves running shielded twisted pair through existing conduit or new cable trays to your control panel's reader port.
For deployments migrating from older hardwired readers, the 6005BGB00 fits retrofit scenarios where panel-side Wiegand ports remain available and card stock compatibility is not an issue. If your organization plans to transition to mobile credentialing or modern encrypted card formats, evaluate whether the 125 kHz legacy technology still aligns with your multi-year roadmap—this reader does not support newer formats like iClass or DESFire.
Deployment Scenarios
This reader excels in retrofit commercial entrances, warehouse receiving doors, and interior access points where door hardware constraints favor a compact reader. It is equally suitable for new construction where architect specifications call for discrete, mullion-mounted readers and the facility already operates 125 kHz proximity infrastructure.
When to Choose a Different Model
If your access control panel does not support Wiegand input (some older systems use clock-and-data or proprietary serial protocols), or if your credential roadmap includes modern encryption standards (iClass, MIFARE, DESFire), consider a higher-capability reader in the HID proximity and smart card reader family that supports dual-technology operation or modern card formats.
Frequently Asked Questions
Q: Does the 6005BGB00 work with existing HID proximity cards?
A: Yes. It reads standard HID 125 kHz proximity credentials (cards and fobs) already in use across most enterprise facilities. No card re-issuance required.
Q: Can I retrofit this reader onto an existing mullion-mount bracket?
A: The compact form factor is designed for mullion mounting. Compatibility with existing brackets depends on the original hardware; field measurement and template fitting are recommended before procurement.
Q: What is the maximum Wiegand cable run length?
A: Standard Wiegand implementations support runs up to 100 feet under typical conditions; longer runs may require shielded twisted pair and proper grounding. Consult your access control panel documentation for specific limits.
Q: Does the 6005BGB00 require separate power?
A: Power is supplied via the pigtail connector from your access control panel's reader port. No separate power supply or battery is required.
Q: Is the 6005BGB00 weather-resistant?
A: This model is designed for indoor mullion mounting. For outdoor or high-moisture environments, consult HID's weather-sealed proximity reader variants in the same product family.
Q: Can I use this reader with modern access control software?
A: Yes, provided your software platform supports Wiegand input at the controller level. ONVIF integration is not applicable to this wired proximity reader; integration occurs at the panel's reader port, not the network layer.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HID 6005BGB00 is a straightforward wired proximity reader—no firmware updates, no wireless headaches, no network integration. What you're buying is mature, proven 125 kHz technology in a form factor small enough to fit retrofit mullion mounts without gutting your door hardware. If your panel supports 26-bit Wiegand (and most do), this reader will commission in under an hour and integrate with credential stocks already issued across your facility.
Technical Highlights:
- 26-bit Wiegand Output: Direct panel integration means no translation modules, no serial converters, and no protocol mismatches. Wiegand is a 40-year-old standard—integration risk is minimal compared to newer proprietary formats.
- 125 kHz Card Compatibility: Works with HID proximity credentials in the field now. No forced card migration, no re-enrollment labor, no interim dual-credential overhead.
- Mini Mullion Form Factor: Fits door frames where space between glass and frame is tight. Retrofit scenarios that rule out larger readers become viable—an asset in storefronts and leased commercial spaces where structural modification is off-limits.
Deployment Considerations:
- Wiegand cable runs are limited to roughly 100 feet; longer runs require shielded twisted pair and proper termination. Measure your conduit runs before procurement if you're retrofitting a large campus.
- This reader is 125 kHz only. If your organization is phasing in modern encrypted credentials (iClass, MIFARE, DESFire), this reader will not support that transition—plan accordingly, or specify a dual-tech reader instead.
Position the 6005BGB00 in retrofit access control refreshes where you need mullion-mount form factor, Wiegand simplicity, and no appetite for network integration complexity. It is not a choice for new deployments committing to modern credential standards or for outdoor/high-moisture entrances.
