HES ZA-32/62CL Adjustable Z-Bracket for M32 and M62 Locks
The ZA-32/62CL is an adjustable Z-bracket designed to mount HES M32 and M62 series electromagnetic locks across retrofit and new-construction access control deployments. Rather than forcing a one-size-fits-all mounting geometry, this bracket accommodates the frame irregularities and tolerance variations you encounter in real buildings—eliminating costly rework and callbacks.
Key Features
- Adjustable mounting geometry: Compensates for non-standard door frame configurations without requiring frame modification. This directly cuts labor time on retrofit projects where existing door frames don't match specification dimensions.
- Clear anodized aluminum construction: Provides corrosion resistance in climate-controlled indoor environments (offices, hallways, stairwells). Not rated for exterior or high-humidity applications—use stainless steel brackets for those scenarios.
- Compatible with M32 and M62 series locks: Works with both HES electromagnetic lock families, giving you flexibility across multiple door sizes and fail-secure/fail-safe configurations in the same facility.
- Reduces installation complexity: The adjustable design minimizes field-fit labor and eliminates the need for custom brackets or frame drilling on multi-tenant properties and buildings with non-standard construction. Meaningful cost savings on large roll-outs.
- Supports hollow metal, wood, and composite door frames: Broad frame compatibility means one bracket SKU covers most commercial access control installations without material-specific variants.
Integration & Compatibility

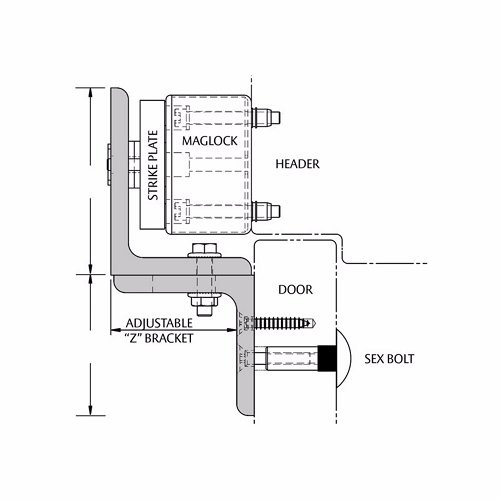

The ZA-32/62CL mounts to HES M32 and M62 electromagnetic locks only. Confirm your lock model before ordering. The bracket's Z-form factor provides flexible positioning to match existing frame dimensions, making it particularly valuable in retrofit scenarios where frame widths or depths deviate from standard specifications. It integrates into any access control system that uses HES M-series locks—no software or controller compatibility issues to manage.
When to Choose a Different Bracket
If you're deploying locks in high-corrosion environments (coastal, chemical, or exterior-exposed areas), consider HES stainless steel bracket variants instead. If your frames are already modified or custom-built, a fixed-geometry bracket may suffice and will cost less. For very heavy-duty applications or specialized door types, consult HES technical documentation on alternative mounting options.
Typical Deployment Scenarios
Use the ZA-32/62CL for office building retrofits where door frame tolerances vary between floors, educational institution access control upgrades, healthcare facility lock installation, and multi-tenant properties where frame modifications are not feasible or cost-prohibitive. The adjustable design pays for itself on projects with 10 or more doors where frame dimensions are inconsistent.
Frequently Asked Questions
Q: Does the ZA-32/62CL work with HES M32 and M62 locks only?
A: Yes. The bracket is designed specifically for M32 and M62 series locks. Confirm your lock model before ordering. It will not fit other HES lock families or third-party electromagnetic locks.
Q: Can I use this bracket outdoors?
A: Not recommended. The clear anodized finish is rated for corrosion resistance in climate-controlled indoor environments only. For exterior doors or high-humidity areas, use HES stainless steel bracket options.
Q: What door frame materials does the ZA-32/62CL support?
A: Hollow metal, wood, and composite door frames. Verify your frame type and fastening substrate before installation.
Q: How much adjustment range does the bracket provide?
A: The Z-bracket form factor allows flexible positioning to compensate for non-standard frame configurations and surface irregularities. Exact adjustment limits depend on your specific frame dimensions; consult the installation guide or HES technical support for your application.
Q: Will this bracket reduce installation labor on retrofit projects?
A: Yes. By accommodating frame irregularities without requiring rework or custom drilling, the adjustable design minimizes field-fit labor—a real cost saver on multi-door retrofit projects.
Q: Do I need to order separate brackets for M32 and M62 locks?
A: No. The ZA-32/62CL works with both M32 and M62 series locks, reducing SKU complexity on mixed deployments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ZA-32/62CL (often searched as ZA 32/62CL) is a practical solution for integrators managing retrofit access control projects where door frames deviate from specification. The adjustable Z-bracket geometry directly addresses a real installation pain point: mismatched frame dimensions that force field modification, custom drilling, or bracket rework. On a 20-door retrofit across multiple floors or buildings, this bracket pays for itself in labor savings alone.
Technical Highlights:
- Clear anodized aluminum finish: Delivers corrosion resistance for climate-controlled indoor environments. Not suitable for exterior or high-humidity zones—a key limitation to communicate to end users planning facility-wide deployments.
- Adjustable form factor: Compensates for frame irregularities, non-standard door widths, and surface inconsistencies without requiring frame modification or custom fabrication. Real time-saver on multi-tenant or older buildings where frame dimensions vary.
- M32 and M62 compatibility: Single bracket SKU covers both HES electromagnetic lock families, reducing parts inventory and installation complexity on mixed-lock deployments.
Deployment Considerations:
- Indoor-only: The clear anodized finish limits this bracket to climate-controlled environments. Specify stainless steel variants for exterior or high-moisture applications to avoid corrosion callbacks.
- Frame material verification is essential: Confirm hollow metal, wood, or composite substrate before installation to ensure fastening integrity.
- Adjustment limits vary by frame geometry: Have the installation manual or HES technical spec available on site to validate that your specific frame dimensions fall within the bracket's adjustment range.
Deploy the ZA-32/62CL on commercial retrofit projects where frame tolerance variations create installation friction, or on new construction in buildings with non-standard door dimensions. The labor savings on 10+ door deployments justify the bracket cost and reduce callback risk from field-fitted locks.
