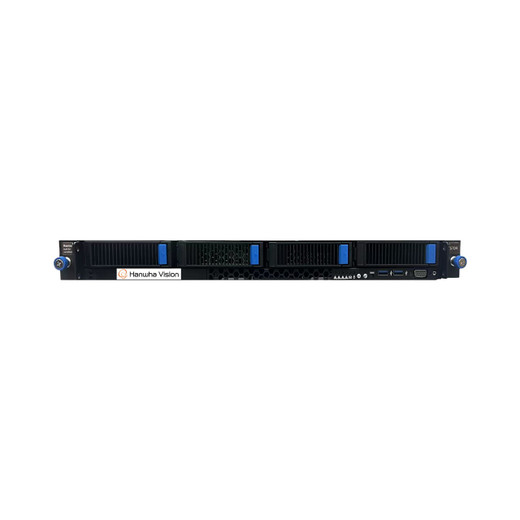

Hanwha WRR-P-E201S Wave Recording Server

Hanwha WRR-P-E201S Wave Recording Server

The Hanwha WRR-P-E201S is a powerful 1U rack-mount network video recording server engineered for enterprise-scale video surveillance deployments. Built on Windows Server 2022 Standard and powered by Intel Xeon E-2356G processing, this recorder delivers high-bandwidth video capture and reliable long-term storage in a compact, space-efficient form factor. With support for up to 80TB raw storage and 470 Mbps recording bandwidth, the WRR-P-E201S is designed for organizations requiring robust, scalable video management infrastructure.

Key Features

• Wave VMS platform with 4 x Wave Professional Licenses included
• Up to 470 Mbps recording bandwidth for multi-stream, high-resolution deployments
• Up to 80TB raw storage capacity (approximately 54TB usable with RAID 5 formatting)
• 4 x 3.5" front hot-swappable drive bays for flexible expansion and maintenance
• Dual 480GB SSD OS drives in RAID 1 configuration for system reliability
• Intel Xeon E-2356G processor with 16GB DDR4 RAM
• Windows Server 2022 Standard operating system (also supports Windows 10 IoT Enterprise LTSC 2021 or Ubuntu 22.04 LTS)
• Flexible RAID support: RAID 0, 1, 5, 6, and 10 (RAID 5 default)
• Redundant 450W 80 Plus Platinum power supplies for continuous operation
• Dual gigabit network interfaces (2 x GbE RJ45 standard; optional 10GbE upgrade available)
• Sliding rail kit with cable management arm included
• Keyboard and mouse included
• HDMI and VGA video outputs for local monitoring

Technical Specifications

Storage & Performance: The server supports up to 80TB raw storage with configurable RAID levels, enabling both maximum capacity and redundancy options. Default RAID 5 configuration provides a balance of performance and data protection. Hot-swappable drive bays allow maintenance without downtime. The 470 Mbps recording bandwidth accommodates multi-camera, multi-stream environments with bandwidth to spare.

Network & Connectivity: Dual gigabit network interfaces are standard; optional 10GbE configuration available for high-speed data transfer and camera connections. Serial port, dual USB 3.2 ports (front and rear), IPMI support, and dual video outputs (HDMI and VGA) provide comprehensive integration and management capabilities.

Power & Thermal: Redundant 450W Platinum-rated power supplies ensure availability and operational efficiency. Maximum heat dissipation of 1,725 BTU/hr supports standard data center cooling. Operating temperature range of 50°F to 95°F suits typical enterprise environments.

Form Factor: Compact 1U rack-mount chassis (17.5" × 17.3" × 1.7") with integrated sliding rail kit and cable management arm simplifies deployment in standard server racks.

Karl Wilson

The WRR-P-E201S targets enterprise security operations requiring centralized, high-capacity video recording with professional management. The combination of Windows Server 2022 Standard, Intel Xeon processing, and Wave VMS licensing delivers a turnkey solution for organizations migrating from legacy systems or scaling existing Hanwha deployments. The redundant power, SSD OS drives in RAID 1, and flexible RAID support underscore reliability—critical for facilities where surveillance cannot afford downtime.

The optional 10GbE upgrade path provides future-proofing for high-bandwidth camera architectures. Storage flexibility (up to 80TB) accommodates medium to large multi-site operations without additional external NAS investment. For organizations standardizing on Hanwha Wave ecosystem, the included 4 Professional Licenses reduce licensing costs at deployment.
