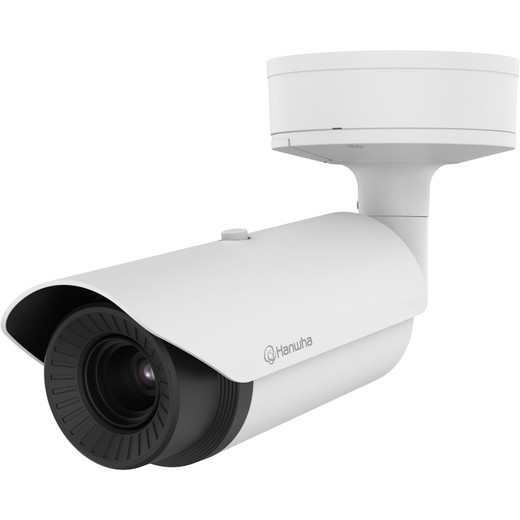

Hanwha TNO-L4030TR Thermal Radiometric Bullet Camera

Hanwha TNO-L4030TR Thermal Radiometric Bullet IP Camera

The Hanwha TNO-L4030TR is a professional-grade thermal radiometric bullet IP camera engineered for precision temperature monitoring and advanced security applications. Built around an uncooled micro bolometer imaging device with thermal sensitivity below 50mK, this camera delivers accurate radiometric temperature detection across a -20°C to 130°C range with ±5°C accuracy (≤100°C) and ±20% accuracy (>100°C). Ideal for industrial process monitoring, electrical infrastructure inspections, predictive maintenance, and critical asset surveillance where thermal anomalies demand real-time detection and documentation.

Key Features

• Radiometric thermal imaging with temperature accuracy ±5°C (≤100°C) and ±20% (>100°C)
• VGA resolution up to 640x480 with H.265, H.264, and MJPEG compression support
• 13mm fixed focal lens with F1.0 aperture and 48.6° horizontal field of view
• 6 quadrangle ROI zones plus whole field-of-view temperature monitoring capability
• Temperature detection range: -20°C to 130°C with spot temperature reading
• Advanced analytics: temperature detection, motion detection, loitering, tampering, enter/exit, virtual line, and audio detection
• 8 directional motion detection zones with 24 polygonal privacy masking options
• Digital image stabilization with built-in gyro sensor
• 8 color palettes: Whitehot, Blackhot, Rainbow, Iron, Sepia, Red, and Custom with hybrid palette support
• IP66, IK10, and NEMA4X certifications for harsh outdoor environments
• 256GB microSD edge storage with NAS and event-triggered recording
• Multiple power input options: PoE (IEEE 802.3af Class 3), 24VAC, or 12VDC with maximum 10W consumption
• ONVIF Profile S/G/T and Wisenet open platform compatibility
• 1 alarm input and 2 alarm outputs with email, FTP, and MQTT notification support

Technical Highlights

This radiometric thermal camera operates at maximum 8fps across multiple resolutions (640x480, 640x360, 320x240) with intelligent bitrate control via H.264/H.265 CBR or VBR modes and WiseStream II smart codec technology. The built-in 1GB RAM and 256MB flash support up to 10 simultaneous streaming profiles with unicast and multicast capability for up to 20 users. Network security is enforced through HTTPS/SSL authentication, IP filtering, 802.1X EAP-TLS/LEAP support, and comprehensive protocol support including RTSP, MQTT, SNMP, and UPnP. The camera operates reliably in extreme temperatures from -40°C to +60°C with less than 90% RH tolerance, making it suitable for outdoor industrial deployments. Hybrid color palettes and custom thermal visualization options enable operators to optimize detection in diverse environmental conditions.

Applications

• Electrical infrastructure and panel monitoring for overheating detection
• Industrial process temperature surveillance and quality assurance
• Predictive maintenance and equipment diagnostics
• Building envelope thermal audits and energy efficiency assessments
• Fire detection and perimeter security in critical infrastructure
• Research and scientific temperature measurement applications

Karl Wilson

The TNO-L4030TR combines radiometric thermal imaging with robust IP surveillance capabilities, addressing the intersection of temperature-critical monitoring and security infrastructure. The ±5°C accuracy and 50mK thermal sensitivity provide quantifiable temperature data suitable for compliance-driven industrial environments. The 13mm fixed focal lens and 48.6° horizontal FOV deliver moderate coverage ideal for close-range thermal inspections of equipment racks, electrical panels, and HVAC systems.

Support for both 6 ROI zones and whole-frame temperature detection enables operators to monitor both specific hotspots and overall thermal patterns simultaneously. The integration of motion, audio, tampering, and temperature analytics into a single platform reduces system complexity while edge storage via microSD supports extended autonomous operation in environments with intermittent network connectivity. IP66/IK10 ratings and -40°C to +60°C operating range ensure durability in harsh industrial settings, while ONVIF and Wisenet open platform compatibility facilitate integration into existing security ecosystems.
