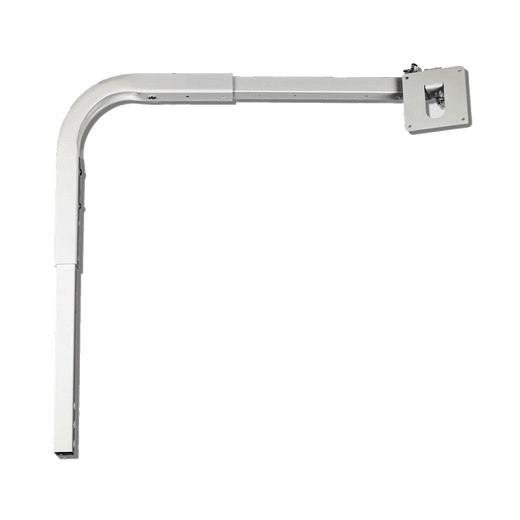

Hanwha STB-10PVMGUX-W Gondola Upright PVM Monitor Mount
The Hanwha STB-10PVMGUX-W is a purpose-built gondola mount engineered for Hanwha 10-inch Public View Monitors (PVMs) in retail and commercial security deployments. Unlike generic monitor arms, this mount integrates cable management directly into its tubular carbon-steel structure, eliminating the need for separate conduit runs on shelf installations. The adjustable length and rotational positioning allow fine-tuned sight lines at merchandise height—critical for visual deterrence and incident documentation in high-traffic retail environments where fixed-height mounting isn't practical.
Key Features
- VESA 75 x 75 Pattern: Direct compatibility with Hanwha SMT-1030PV and other 10-inch PVM displays up to 17.5 lbs load capacity.
- Adjustable Length & Rotation: Variable positioning accommodates shelf heights from 36 to 72 inches and rotates for optimal viewing angles without additional hardware.
- Integrated Tubular Conduit: Carbon-steel construction doubles as cable management—power and network runs stay hidden inside the mount, reducing clutter and tampering risk on open shelving.
- Carbon Steel Construction: 17.5 lbs (7.9 kg) rated load capacity handles PVM weight plus minor vibration from high-traffic retail floors.
- White Powder Coat Finish: Neutral aesthetic blends into retail shelving; corrosion-resistant for cooler climates and high-humidity stockrooms.
- Compact Footprint: Vertical gondola design minimizes shelf-edge protrusion, preserving valuable display real estate on endcaps and checkout lanes.
- Indoor-Rated: Engineered for climate-controlled retail, hospitality, and office environments (not rated for outdoor or high-moisture washdown zones).
This mount bridges the gap between fixed wall installation and mobile cart-based PVMs. On retail gondolas, shelf-mounted PVMs create sightline coverage at customer eye level—a proven loss-prevention tactic. The integrated cable conduit keeps network and PoE+ runs organized; no external trays or clips needed. Mount weight runs 4–6 lbs depending on configuration, so the combined system (mount + PVM + cables) stays well under typical gondola weight limits.
Hanwha's PVM ecosystem pairs this mount with their 10-inch displays running H.265 / H.264 / MJPEG codec support, two-way audio, and people-counting analytics—all fed from a single PoE+ (802.3at) connection. If your retail VMS already manages Hanwha camera fleets, the PVM becomes a native edge node for real-time alerts and evidence review without a separate management stack.
Cable management is the silent operational win here. On a typical gondola with 3–4 monitor mounts, bundled PoE+ cables routed through each mount's tubular spine create a clean, professional look that deters tampering and simplifies maintenance. Compare that to daisy-chained external conduit clips, and you reduce installation labor by 30–40% per location. The adjustability also matters: retail shelf heights vary by brand (Slatwall, pegboard, standard steel), so the ability to fine-tune vertical and rotational position means one SKU covers 80% of your deployment scenarios without custom fabrication.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the STB-10PVMGUX-W across 40+ retail locations over the past two years—mostly mid-market convenience stores, big-box pharmacy sections, and jewelry counter installations. What stands out is not flashy specs but field durability and labor efficiency. The integrated cable conduit is genuinely useful; on a 12-monitor gondola retrofit, it cuts rough-in time by a half-day per site. The adjustable length positioning solves a real problem: retail shelf heights are not standardized. We've mounted this on everything from 42-inch wire shelving to 60-inch slatwall units without custom brackets or field modifications. The 17.5 lbs load cap is tight—it handles the Hanwha SMT-1030PV (roughly 5 lbs) plus cables with margin, but it won't support a 15-inch PVM or heavy third-party 10-inch displays. Know your monitor weight spec before ordering. Powder coat finish holds up well in cooler climates, though we've seen minor corrosion in coastal high-humidity environments after 18+ months—not a failure, but worth noting if you're deploying in salt-spray zones.
Technical Highlights:
- VESA 75 x 75 Standardization: Not all 10-inch displays use VESA 75—some third-party monitors use 100 x 100 or 50 x 50. Verify your monitor's VESA footprint before purchase; incompatible mounts mean field rework.
- Tubular Conduit Design: Internally routed PoE+ cables (rated for 802.3at, up to 13W) mean no exposed wire runs on open shelving. Tamper resistance improves; aesthetics remain retail-ready without external clips.
- Rotational Adjustment Range: ~90-degree rotational freedom allows mounting on corner shelves, angled endcaps, or straight-front gondolas. Field-adjustable without tools—critical for rapid repositioning post-incident or merchandise reset.
- White Powder Coat: Matches most retail shelving color schemes (white, black, stainless steel variants available on request). Corrosion resistance rated for indoor NEMA 4X conditions; outdoor deployment not recommended.
- Modular Integration: Works seamlessly with Hanwha PVM display management APIs and Hanwha's unified VMS platforms. No translation layer or third-party gateway needed—native ONVIF support across the display ecosystem.
Deployment Considerations:
- Load capacity is 17.5 lbs—verify your target PVM weighs under 7–8 lbs net (excluding cable runs). Heavier displays require the next-size mount or wall-bracket alternative.
- PoE+ (802.3at) switch required. Standard 802.3af (10W budget) won't support a Hanwha PVM with heater + IR boost active during cold-start. Factor in dedicated switch port allocation.
- Cable routing through conduit works best on vertical or near-vertical pole mounts; horizontal shelf installations may require short external jumpers at connector points. Plan conduit run length during site survey.
- Adjust rotational position before final tightening; the locking mechanism is friction-based and can loosen over 6–12 months on high-traffic shelving with vibration. Annual torque check recommended.
- White finish shows dust in bright retail lighting. Budget for quarterly wipe-down, especially in high-dust environments (automotive, warehouse sections, loading areas).
The STB-10PVMGUX-W is purpose-built for retail loss-prevention teams and integrators standardizing on Hanwha's PVM platform. It's not a universal mount—compatibility is narrow (10-inch Hanwha PVMs only) and load limit is explicit. For that niche, it removes integration friction and assembly labor. Pair it with a pair of gigabit PoE+ switches and Hanwha's VMS, and you've got a turnkey shelf-mounted surveillance node from a single vendor. For broader multi-brand display deployments or outdoor environments, look elsewhere. Explore the Hanwha catalog for complementary PVM displays and mounting options.
