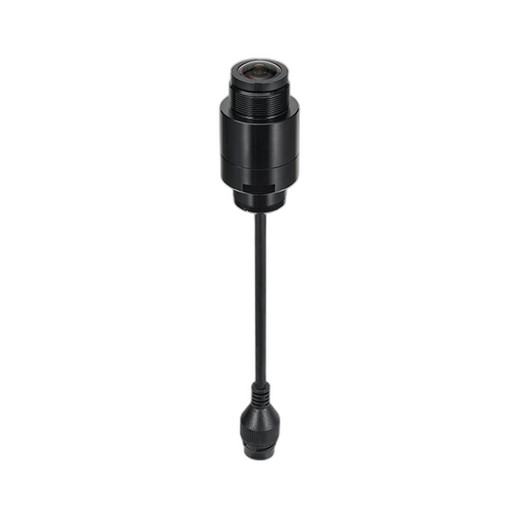

Hanwha SLA-T1080FA 1.6mm Fisheye Lens Module
The Hanwha SLA-T1080FA is a premium fisheye lens module engineered for ultra-wide-angle surveillance applications. With a remarkable 187° horizontal field of view, this module delivers comprehensive coverage across expansive areas, making it ideal for security deployments requiring minimal blind spots and maximum situational awareness. Optimized for integration with Hanwha's PNM-9000QB and XNB-6002 camera models, the SLA-T1080FA provides a seamless solution for businesses seeking flexible, high-performance monitoring capabilities.
Key Features
- Ultra-wide 187° horizontal and 113.9° vertical field of view for comprehensive area coverage
- 2MP CMOS imaging sensor with 1/2.8" format for sharp, detailed video
- Exceptional low-light sensitivity at 0.03 lux with F1.6 maximum aperture
- Fixed 1.6mm focal length with fixed focus for straightforward installation
- Robust metal construction with durable RJ12 connection to main camera unit
- Compact form factor: Ø35 x L68.9mm, weighing only 430g
- 8-meter cable with metal-shielded connectors for reliable signal transmission
- Customizable cable length to accommodate diverse installation layouts
Technical Highlights
The SLA-T1080FA's 1/2.8" 2MP CMOS sensor captures high-resolution imagery across extreme wide angles without sacrificing image quality. The F1.6 maximum aperture combined with 0.03 lux minimum illumination ensures superior performance in challenging lighting environments, from dimly lit corridors to brightly lit outdoor scenes. The fixed focal length design eliminates focus drift and simplifies deployment—no calibration required.
Connectivity is handled through a direct RJ12 interface to the compatible host camera, with an 8-meter cable that can be shortened for optimal positioning flexibility. The metal-shielded construction protects against electromagnetic interference and environmental stress, extending the module's operational lifespan in demanding security installations.
Ideal Applications
- Large indoor spaces: lobbies, warehouses, retail environments
- Outdoor perimeter monitoring with minimal blind spots
- Wide-angle facility surveillance requiring single-camera coverage
- Low-light environments: parking facilities, night-time monitoring
- Access control points and secure entry areas
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SLA-T1080FA stands out as a purpose-built fisheye module for organizations seeking extreme wide-angle coverage without installing multiple cameras. The 187° horizontal FOV is exceptional for single-point surveillance, though integrators should note that fisheye distortion is inherent to the design—suitable for perimeter monitoring and overview coverage, but not for facial recognition or license plate capture.
The 0.03 lux specification with F1.6 aperture positions this module in professional-grade low-light applications, outperforming standard fixed lenses. The fixed focus design is a strength for plug-and-play deployment but limits adaptability to varying distances. The RJ12 connection ensures compatibility is strict—verify host camera model before purchase. Cable shortening flexibility is valuable for wall-mounted and recessed installations where cable management is critical.
For integrators prioritizing coverage density and installation simplicity, this module delivers exceptional value in applications where distortion is acceptable and wide angles are essential.
