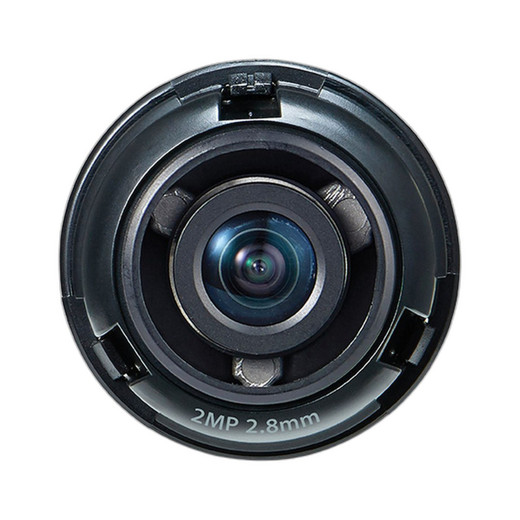

Hanwha SLA-2M2802D Lens Module for PNM-7002VD

Hanwha SLA-2M2802D Lens Module for PNM-7002VD

The Hanwha SLA-2M2802D is a precision lens module engineered specifically for the PNM-7002VD dual-sensor surveillance camera system. This optical component combines a 1/2.8" 2MP CMOS sensor with a 2.8mm fixed focal length lens to deliver sharp, distortion-free imaging across a wide field of view. Built for professional security installations, the SLA-2M2802D provides the optical performance required for comprehensive area monitoring in demanding environments.

Key Features

• 1/2.8" 2MP CMOS imaging sensor for high-resolution capture
• 2.8mm fixed focal lens with F2.0 maximum aperture
• Wide field of view: 107.4° horizontal, 62.2° vertical, 122.0° diagonal
• Ultra-low minimum illumination: 0.055 Lux (F2.0, 1/30sec) for color imaging
• Flexible pan/tilt/rotate range: -176° to +176° pan, 0° to 51° tilt, -90° to +90° rotate
• Fixed focus design for consistent optical performance
• Compact form factor: Ø35.5 x 35.9mm, 30g
• Durable plastic construction with black finish

Technical Highlights

The 2.8mm lens and 107.4° horizontal field of view make this module ideal for wide-area surveillance applications where coverage of large spaces is essential. The F2.0 aperture supports exceptional low-light performance, achieving color imaging at just 0.055 Lux—making it suitable for facilities with minimal ambient lighting. The fixed focal design eliminates focus drift and reduces maintenance requirements while ensuring predictable optical performance in production environments.

Pan, tilt, and rotate capabilities provide flexible mounting orientations, allowing installers to optimize coverage angles without additional hardware. The lightweight 30-gram design minimizes strain on mounting brackets and camera housings, supporting stable deployments across various architectural configurations.

Applications

The SLA-2M2802D lens module is well-suited for retail environments, office complexes, manufacturing facilities, public transit stations, and other venues requiring comprehensive surveillance coverage. Its wide field of view and low-light capability make it particularly valuable in areas with variable lighting conditions or where monitoring large open spaces is a priority. Seamless integration with the Hanwha PNM-7002VD platform ensures optimized system performance and simplified installation workflows for security integrators and end-users.

James Everett

The SLA-2M2802D represents Hanwha's commitment to modular camera design, allowing end-users to customize sensor and optics combinations for specific deployment scenarios. The 107.4° horizontal FOV is broadly classified as wide-angle coverage—suitable for lobby and corridor monitoring where single-camera deployment can reduce overall system costs. The 0.055 Lux minimum illumination is competitive for 2MP fixed lenses and supports effective color imaging in retail and office settings where some ambient lighting is present.

The pan/tilt/rotate range of -176° to +176° pan provides flexibility for non-standard mounting positions, though integrators should confirm mechanical compatibility with the PNM-7002VD housing before deployment.
