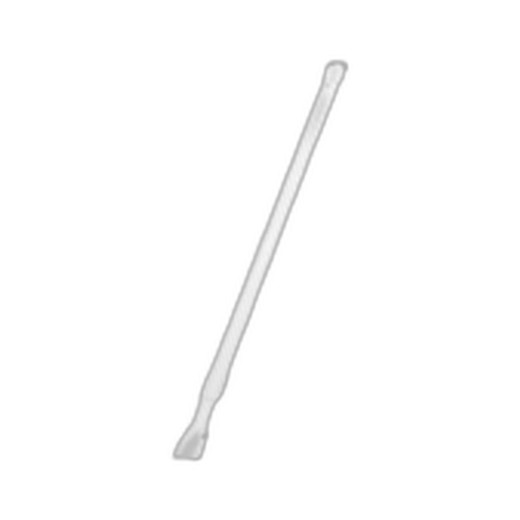

Hanwha SBP-302CMW White Telescopic Pole Pendant Mount

Hanwha SBP-302CMW White Telescopic Pole Pendant Mount

The SBP-302CMW is a white telescopic mounting pole designed for pendant-mounted IP surveillance cameras. It bridges the gap between ceiling or wall-mounted fixture points and camera enclosures, giving you control over final camera height without running conduit or structural modifications. This is an accessory; it requires a companion mounting plate (such as the SBP-302CMA) to attach your camera.

Key Features

• Adjustable Length (4.5–8 feet): The telescopic design lets you dial in the exact mounting height your deployment requires. This flexibility eliminates the need for custom-fabricated poles or multiple SKUs, saving time during installation planning and reducing inventory overhead. Simply extend to your required length and lock in place.
• 1.5" NPT Thread Connectors (Male Top, Female Bottom): Industry-standard pipe threads on both ends ensure compatibility with common mounting hardware and allow for chaining multiple poles or adapters if needed. The male-to-female arrangement is designed to connect seamlessly to the SBP-302CMA and similar Hanwha pendant mount plates.
• 30-Pound Weight Capacity: This load rating accommodates most compact and mid-range Hanwha IP cameras, plus the weight of a standard mounting bracket. For heavier payloads (large PTZ units or multi-sensor enclosures), verify the combined mass of your camera, bracket, and any cabling before deployment.
• Aluminum and Steel Construction: The hybrid material blend balances weight (the pole itself is 7.56 lbs, light enough for one-person installation) with structural rigidity. Steel reinforcement at stress points prevents flex under load, while aluminum keeps total weight manageable. The white powder-coat finish resists corrosion in indoor installations; for outdoor or marine environments, confirm that your facility's humidity or salt exposure doesn't exceed typical interior tolerance limits.
• 1.87-Inch Outer Diameter: The pole diameter is compact enough to remain visually discrete in most ceiling cavities and pendant configurations, yet rigid enough to support the full 30 lb load without noticeable sag.
• Compact Shipping and Storage: At under 8 lbs and telescoping down to 4.5 feet, the SBP-302CMW ships efficiently and takes minimal shelf space, useful if you maintain a supply of mounting hardware across multiple sites.

Integration & Compatibility

The SBP-302CMW integrates with Hanwha IP cameras and compatible third-party fixtures through its 1.5" NPT connectors. You must pair it with an appropriate mounting plate—the SBP-302CMA is the standard Hanwha match. Before installation, confirm your camera's mounting interface and load. If you are building a multi-camera NVR-based surveillance system, plan your pendant pole heights to avoid overlapping fields of view and ensure electrical pathways for PoE cabling are clear of structural obstacles.

What's in the Box

• 1x SBP-302CMW White Telescopic Pole

Frequently Asked Questions

Q: Can I use the SBP-302CMW outdoors?

A: The white powder-coat finish provides corrosion resistance suitable for covered outdoor areas (eaves, soffits). Direct sun exposure and rain will accelerate weathering; for fully exposed outdoor installations in humid or coastal climates, consider whether additional protective coating or a stainless-steel pole variant is available from the manufacturer.

Q: What mounting plate do I need?

A: The SBP-302CMA is the standard Hanwha companion mounting plate. Both the pole and plate use 1.5" NPT threads, so they connect directly. Verify your camera's bracket attachment standard before ordering.

Q: Can I extend the pole beyond 8 feet?

A: No. The SBP-302CMW has a fixed maximum length of 8 feet. If you require greater height, you would need to install a separate upper pole section or bracket extension and confirm that the combined load remains under 30 lbs.

Q: What is the weight capacity limit?

A: The SBP-302CMW supports a maximum of 30 pounds, including the camera, mounting bracket, and any cabling. Exceeding this load risks flexing and loss of optical alignment; if your camera assembly exceeds 25 lbs, use a heavier-duty mount or consult Hanwha for alternative options.

Q: Is a separate power supply needed for the pole?

A: No. The telescopic pole is a passive mechanical component; it does not draw power. Your camera connects to PoE (Power over Ethernet) via the mounting plate and cable routing.

Q: Can I paint or finish the SBP-302CMW?

A: The pole arrives powder-coated white. Repainting is possible but not recommended by Hanwha, as it may affect thread tolerances or introduce surface irregularities. If color matching is critical, ask the manufacturer about pre-finished options.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SBP-302CMW (often searched as SBP 302CMW) is a straightforward pendant pole, and that simplicity is its strength. At 7.56 lbs and 1.87 inches in diameter, it stays lightweight enough for ceiling installation without reinforcement, yet its aluminum-and-steel hybrid construction holds the full 30 lb load without flex. The adjustable 4.5–8 foot range eliminates the need for three different fixed-length SKUs, which cuts your parts inventory and installation labor.

Technical Highlights:

• Adjustable 4.5–8 ft Range: You specify height once during site survey and dial it in during install—no return trips or custom fabrication. Real deployment time savings when you're setting up 10+ cameras across a facility.
• 1.5" NPT Threads (Male Top / Female Bottom): Standard pipe threads let you chain poles, connect to the SBP-302CMA plate, or adapt to other third-party pendant hardware. If your mounting plate uses a different thread size or taper, verify compatibility before ordering.
• 30 lb Capacity: Covers most compact and mid-range IP cameras (typically 1–3 lbs), bracket, and cable weight. Multi-sensor or large PTZ units will exceed this; do the math before install.

Deployment Considerations:

• The pole is passive—no moving parts, no power draw. Failures are almost always installation errors: under-tightened connectors, overloaded payload, or cross-threaded connections. Hand-tighten first, then use a pipe wrench to snug the top connector.
• The white powder coat looks clean in modern facilities, but corrosion can occur in high-humidity or salt-spray environments. Covered outdoor use is fine; fully exposed rooftop installations should prompt a stainless upgrade conversation with Hanwha.

Use the SBP-302CMW for any compact IP camera deployment where you need fieldable height adjustment without conduit runs or structural work—parking garages, warehouse aisles, retail ceilings, and office lobbies are the bread-and-butter placements. It's not the solution for heavy PTZ units or outdoor marine installations; know your payload and environment, and this pole will serve reliably for years.
