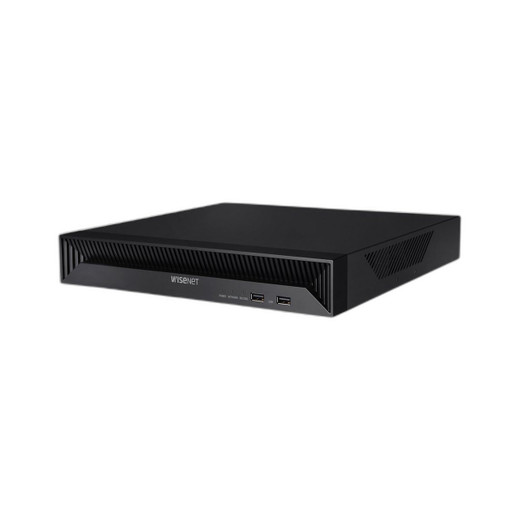

Hanwha QRN-830S 8-Channel 8MP Network Video Recorder

Hanwha QRN-830S 8-Channel 8MP Network Video Recorder

The Hanwha QRN-830S is a compact, Linux-based 8-channel NVR designed for mid-scale surveillance installations requiring reliable video management and flexible deployment options. Supporting up to 8MP camera inputs with H.265, H.264, and MJPEG compression, this recorder delivers enterprise-grade performance in a space-efficient form factor ideal for retail, education, hospitality, and commercial security environments.

Key Features

• 8-channel network camera input supporting 8MP to CIF resolution
• H.265, H.264, and MJPEG codec support for bandwidth optimization
• 8 integrated PoE ports (65W budget) plus 1 Gigabit LAN/WAN port for streamlined network deployment
• 4K HDMI output (3840×2160 @ 30Hz) with flexible multi-screen display layouts (single, dual, quad, 9-screen)
• Up to 6TB single SATA HDD storage with support for extended recording
• Dual-stream and schedule-based recording modes with pre/post-event capture
• Multi-user remote playback: up to 3 simultaneous remote users with 8-channel playback capability
• P2P connectivity via QR code for rapid remote access configuration
• iOS and Android mobile support with multi-profile and multi-channel playback
• Compact chassis: 300 × 47.6 × 238.9 mm, 1.32 kg

Recording & Event Management

The QRN-830S handles maximum 80Mbps network recording bandwidth with intelligent event triggering via alarm input, video loss detection, motion detection, camera sensors, defocus alerts, and video analytics. Event actions include email notification, alarm output, buzzer activation, PTZ preset control, FTP backup, and SUNAPI command execution. The recorder supports continuous, dual-stream, and event-based recording modes with bookmark functionality for rapid incident investigation.

Playback & Search

Playback bandwidth reaches 32Mbps, enabling smooth 8MP video review. Advanced search modes include date/time calendar selection, event list filtering, text search, and smart search capabilities. Local playback supports up to 8 channels simultaneously; remote users can access 8 channels per session. Backup functionality includes BU/EXE/AVI formats via GUI and JPG/AVI formats over network, supporting multi-channel playback with date-time and title overlays.

Network & Security

Full protocol support includes IPv4, IPv6, TCP/IP, UDP/IP, RTSP, HTTP, HTTPS, ONVIF Profile-S, and Hanwha SUNAPI. Security features encompass IP address filtering, user access logging, 802.1x authentication, device certificate encryption via Hanwha Techwin Root CA, and signed firmware. Hanwha DDNS enables reliable remote connectivity. Maximum remote user capacity includes 3 search users, 10 unicast live users, and 20 multicast users.

Software & Integration

Compatible viewer software includes WAVE, SSM, Webviewer, Smart Viewer, and Wisenet Viewer. Web viewer supports Windows 10 and macOS 11 with Chrome, Edge, and Safari browsers. CGI/SUNAPI integration enables third-party VMS compatibility. Multi-language support covers 24 languages including English, Chinese, Japanese, Korean, and European variants.

Eden Phillips

The QRN-830S targets mid-market deployments where 8MP resolution and 8-channel capacity align with budget constraints while maintaining sufficient storage flexibility via single-drive SATA expansion. The integrated PoE infrastructure with 65W budget suits mixed IP camera environments, though administrators should verify camera power requirements during configuration. H.265 codec adoption significantly reduces bandwidth and storage overhead compared to H.264, particularly valuable for continuous recording on bandwidth-limited networks.

The 32Mbps playback limit is conservative but adequate for forensic review at standard frame rates. N+1 redundancy and ARB support provide failover capability for mission-critical installations. The QR code P2P setup streamlines deployment for non-technical staff, while ONVIF/SUNAPI support ensures interoperability with mixed-manufacturer camera ecosystems.

Linux OS provides stability and minimal resource overhead; the compact footprint facilitates rack deployment or shelf mounting in space-constrained environments.
