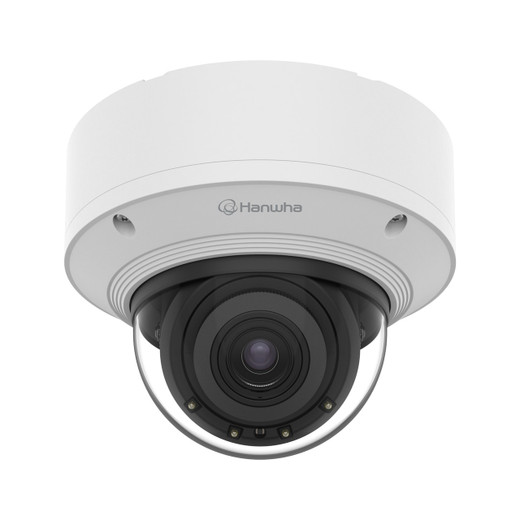

Hanwha PND-A9081RVX 4K AI IR Indoor Dome Camera Module

Hanwha PND-A9081RVX 4K AI IR Indoor Dome Camera Module

The Hanwha PND-A9081RVX is a premium 4K indoor modular camera designed for seamless integration into existing Hanwha dome camera housings. This 8-megapixel module combines advanced AI-powered video analytics with exceptional low-light performance and intelligent zoom capabilities, making it ideal for demanding security applications requiring detailed object recognition and behavioral analysis.

Key Features

• 4K Ultra HD resolution at 3840 x 2160 with 30fps streaming in H.265/H.264
• AI-powered video analytics with intelligent object classification
• Extreme low-light capability: 0.05 Lux color, 0 Lux B/W with IR LED
• 4.5–10mm motorized varifocal lens with 2.2x optical zoom
• 30m IR illumination with day/night auto-switching (ICR)
• Advanced WDR (120dB) and digital image stabilization with gyro sensor
• Dual SD/SDHC/SDXC memory slots (512GB total)
• PoE+ and 12VDC power options with low consumption (16W typical)
• IP66/IP67/IP6K9K and IK10+ rated for harsh environments

Technical Highlights

Imaging & Optics: The 1/1.8" CMOS sensor delivers exceptional detail across 18 resolution modes, from 4K down to 640×360. The P-iris lens provides superior depth of field control and contrast, while the motorized varifocal design offers flexible wide (102°) to tele (45°) field-of-view adjustment. Minimum focus distance is 0.5m, enabling close-range identification tasks.

AI Analytics Engine: Built-in AI classifies persons, faces, vehicles, and license plates with attribute extraction including gender, age, facial mask detection, vehicle type, and color. Advanced behavioral analytics include virtual line crossing, loitering detection, intrusion alerts, social distancing monitoring, and digital auto-tracking. Face mask detection, tampering alerts, and audio-based event triggers add comprehensive situational awareness.

Low-Light Performance: Color imaging at 0.05 Lux (F1.6, 1/30sec) ensures visibility in dim environments. B/W mode reaches 0.005 Lux, while IR LED mode delivers 0 Lux operation with 30m effective range for complete darkness scenarios. Dynamic range reaches 120dB with WDR technology, accommodating mixed lighting conditions.

Codec & Streaming: Supports H.265, H.264 (Main/High profile), and MJPEG compression. WiseStream III smart codec reduces bandwidth by up to 50% while maintaining quality. Multiple streaming profiles (up to 3) enable simultaneous HD and compressed feeds for different client needs.

Security & Integration: ONVIF Profile S/G/T/M compliance ensures vendor interoperability. Additional protocols include RTSP, RTCP, HTTP/HTTPS, and SRTP. Security features include SSL/TLS encryption, 802.1X authentication, IP filtering, and secure boot. SUNAPI and Wisenet open platform support custom integrations.

Applications

Ideal for retail analytics, facility management, traffic monitoring, critical infrastructure, and perimeter security where modular upgrades of existing housings are required. The combination of AI analytics and superior optics supports forensic-grade identification and real-time behavioral intelligence in challenging lighting environments.

Jerry Tildsen

The PND-A9081RVX represents Hanwha's commitment to field-upgradeable surveillance infrastructure. As a modular platform, it maximizes existing housing investments while delivering current-generation AI capabilities. The 4.5–10mm varifocal with 2.2x zoom and P-iris control provides professional framing flexibility—critical for retail or office environments where lens adjustment post-installation is common.

AI analytics are particularly strong: face mask detection and social distancing align with modern safety protocols, while vehicle classification and license plate recognition extend use cases into parking and traffic applications. The 120dB WDR and dual-mode IR (passive 0.005 Lux B/W + active 30m LED) eliminate most low-light compromises. Dual SD card slots with 512GB capacity enable extended local recording without NAS dependency.

Power efficiency (16W typical on PoE+) suits retrofit scenarios. ONVIF and Wisenet open APIs ensure ecosystem flexibility. For system integrators targeting modular upgrades or OEMs building into custom housings, this module delivers enterprise-grade analytics in a compact, proven form factor.
