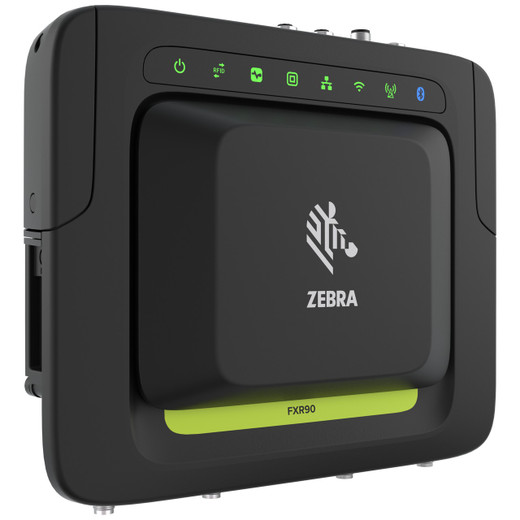

Zebra FXR90010-800000-FT 8-Port Ultra-Rugged Fixed RFID Reader

Overview

The Zebra FXR90010-800000-FT is an eight-port fixed RFID reader built for industrial environments where a standard reader would fail — think freezer warehouses, outdoor loading docks, manufacturing lines, and anywhere hosing down equipment is routine. With IP65/67 ingress protection, WiFi 6E, and a read rate that exceeds 1,300 tags per second across eight antenna ports, the FXR90 handles high-density, high-throughput tracking scenarios that consumer-grade or entry-level fixed readers simply can't sustain. If you're running fixed RFID readers in environments where heat, moisture, or dust are real operational hazards, this is the class of hardware worth evaluating.

Key Features

• 8 External RP-TNC Antenna Ports: Eight ports on a single reader means you can cover a full dock door, conveyor zone, or multi-lane read point without deploying and managing multiple reader units. Each port uses a standard RP-TNC female connector, so you're not locked into proprietary cabling — most commercial RFID antennas terminate here.
• 1,300+ Tags/Second Read Rate: In high-density scenarios — pallet loads of individually tagged cartons, tote conveyors at full speed, or asset rooms with thousands of items — throughput limits are where fixed readers fail in practice. Exceeding 1,300 tags per second means the reader won't be the bottleneck in your data pipeline.
• IP65/IP67 Dual Rating: IP65 covers continuous water jets; IP67 covers temporary submersion up to 1 meter. In a food-processing or pharmaceutical facility where equipment is regularly pressure-washed, this dual rating means you can mount the FXR90 in the wash zone rather than routing cables around it to a protected enclosure.
• WiFi 6E (802.11ax) + Gigabit Ethernet: The 10/100/1000 Mbps Ethernet port with PoE support gives you a wired primary connection; WiFi 6E adds a reliable wireless fallback or primary path where cabling is impractical. WiFi 6E's 6 GHz band is less congested than 2.4/5 GHz in dense RF environments, which matters in warehouses already crowded with handheld scanners and mobile computers.
• Bluetooth 5.3: BT 5.3 enables proximity-triggered workflows and local configuration without requiring network access — useful during initial commissioning or when running diagnostics at a remote installation where pulling a laptop up to the reader isn't practical.
• NXP iMX8 Mini Quad Cortex-A53 with 2GB LP DDR4 and 16GB eMMC: This isn't a thin-client reader that offloads all processing to a middleware server. The onboard compute handles local filtering, tag deduplication, and edge logic — reducing round-trip latency to your WMS and cutting network dependency for time-sensitive applications like dock door control or automated sortation gates.
• 4 Inputs / 4 Outputs (GPIO): The four general-purpose I/O ports let you wire the FXR90 directly into conveyor interlocks, light stacks, or gate control systems. A tag read can trigger a physical output — no additional PLC or middleware device required for simple automation logic.
• TAA Compliance: The -FT suffix designates Trade Agreements Act compliance, making the FXR90010-800000-FT eligible for US federal, state, and SLED procurement under TAA-mandated sourcing rules. If your end-user is a government agency or a contractor under a GSA schedule, this is a non-negotiable qualifier.
• Linux OS on 16GB eMMC Flash: The Linux-based OS provides a stable, updatable platform for custom edge applications and SDK-based integrations. The 16GB eMMC flash gives enough headroom for application deployment, local logging, and firmware updates without external storage dependencies.
• ISO 18000-6C / EPC Gen 2 Air Protocol: Operating across the 902–928 MHz UHF band with ISO 18000-6C protocol support means the FXR90 is compatible with the vast majority of commercially available UHF RFID tags — standard GS1 EPC labels, serialized item tags, and most passive UHF inlays used in supply chain and manufacturing.
• Receiver Sensitivity of -92 dBm: Higher sensitivity (more negative dBm) means the reader can detect weaker tag return signals — useful when reading through dense packaging, over longer distances, or in environments with RF interference. At -92 dBm, the FXR90 captures marginal reads that less sensitive readers drop.

Integration and Compatibility

The FXR90010-800000-FT (often searched as FXR90010 800000 FT) communicates over standard TCP/IP via its Gigabit Ethernet or WiFi 6E interface and supports direct integration with RFID middleware platforms and WMS systems through Zebra's RFID SDK. The dual USB ports (2x Host, 1x Client) allow peripheral attachment — barcode scanners, USB drives for local log extraction, or additional I/O modules — without adding a separate USB hub. Zebra's ClearStream RFID middleware is available as an optional add-on subscription for teams that need a browser-based reader management and event-streaming layer without building custom integration from scratch. Power delivery options include PoE over the M12-to-RJ45 Ethernet connection or external AC/DC and DC/DC power supplies available separately from Zebra (PWR-BGA24V78W3WW, PWR-BGA24V90W0WW, PWR-BGA24V90W1WW). The M12 connector ecosystem used for Ethernet and USB on this reader is an industrial-rated locking connector standard, so cable integrity in high-vibration or wash-down environments is maintained without relying on friction-fit RJ45 or standard USB ports that can work loose over time.

Frequently Asked Questions

Q: Is the FXR90010-800000-FT TAA-compliant for government procurement?

A: Yes. The -FT suffix designates Trade Agreements Act compliance. This SKU is eligible for US federal, state, and SLED procurement under TAA-mandated sourcing requirements.

Q: What air protocol does the FXR90010-800000-FT support?

A: The FXR90010-800000-FT supports ISO 18000-6C (EPC Gen 2) across the 902–928 MHz UHF band, which covers the vast majority of commercially available passive UHF RFID tags used in supply chain and manufacturing environments.

Q: Can the FXR90 be powered over Ethernet (PoE)?

A: Yes. The reader supports PoE over its Ethernet port. Connection to the reader uses an M12 to RJ45 cable (available separately, e.g. CBL-ENT00301-M1200 for 10ft or CBL-ENT01501-M1200 for 49ft). Separate AC/DC and DC/DC power supply options are also available from Zebra if PoE is not practical for your installation.

Q: What is the IP rating on the FXR90010-800000-FT?

A: The reader carries both IP65 and IP67 ratings. IP65 covers protection against sustained water jets; IP67 covers temporary immersion up to one meter. This makes it suitable for wash-down environments in food processing, pharmaceuticals, and outdoor industrial installations.

Q: How many antenna ports does the FXR90 support, and what connector type do they use?

A: The FXR90010-800000-FT has eight external antenna ports using RP-TNC female connectors — the standard termination for most commercial UHF RFID antennas, so you're not restricted to proprietary cabling.

Q: Does the FXR90 support edge processing or does it require a middleware server for all logic?

A: The FXR90 includes an onboard NXP iMX8 Mini Quad Cortex-A53 processor with 2GB LP DDR4 RAM and 16GB eMMC flash running Linux. It supports local application deployment via Zebra's SDK, enabling edge filtering, deduplication, and GPIO-triggered automation without requiring a round-trip to a middleware server for every tag event.

Jerry Tildsen

The FXR90010-800000-FT is the reader I'd specify for any project where the environment is the primary design constraint — not tag density, not middleware, but the physical conditions the hardware has to survive. The IP65/67 dual rating combined with the M12 locking connector ecosystem addresses the most common fixed RFID failure mode I see in industrial installs: cable connections that work loose or corrode in wash-down zones, taking a reader offline weeks after go-live.

Technical Highlights:

• 1,300+ Tags/Second Throughput: At eight ports running simultaneously, this read rate is sufficient for high-speed conveyor applications where tagged cartons are passing at belt speed — you won't see tag drops due to reader saturation, which is the primary tuning headache on lower-throughput hardware.
• -92 dBm Receiver Sensitivity: This is a meaningful spec in dense-pack scenarios. Higher sensitivity (more negative dBm) recovers marginal backscatter from tags buried in carton interiors or occluded by packaging materials — the reads other readers miss at the same power level.
• 4-In / 4-Out GPIO: Wiring a tag-read event directly to a conveyor divert gate or a light stack indicator without an intermediate PLC is underused in mid-scale deployments. The onboard GPIO cuts BOM cost and latency for straightforward automation triggers.

Deployment Considerations:

• The M12 connector requirement is non-obvious until you're on-site. Standard RJ45 patch cables do not terminate directly to this reader — you need Zebra's M12-to-RJ45 cables (CBL-ENT00301-M1200 for 10ft, CBL-ENT01501-M1200 for 49ft) or equivalent industrial M12 assemblies. Budget and specify these during design, not as an afterthought on installation day.
• WiFi 6E requires a 6 GHz capable access point in the facility. If your wireless infrastructure is pre-WiFi 6E, the reader falls back to available bands, but you won't realize the 6 GHz congestion benefit that justifies the spec in the first place — assess AP compatibility before promising wireless deployment to the customer.

This reader is the right call for pharmaceutical and food-and-beverage distribution centers where FDA facility standards require equipment that can be sanitized in place, or for outdoor intermodal yard tracking where the reader lives in a weatherhead enclosure subject to temperature extremes and humidity cycling. The TAA designation on the FXR90010-800000-FT also makes it the default choice whenever the end-user is a DoD logistics site or a government contractor operating under a FAR-compliant procurement.
