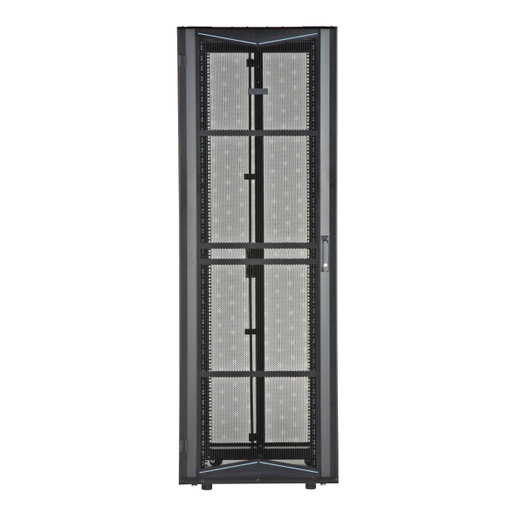

Panduit XG74222BS00QX Network Cabinet

Panduit XG74222BS00QX Network Cabinet

Overview

The Panduit FlexFusion XG74222BS00QX is a 42U rack cabinet designed for high-density equipment housing in data centers, server rooms, and telecommunications spaces. It features a top cap with brush seal for optimized airflow management, a single-hinge front door for access, and a black steel construction. This cabinet addresses the need for organized, secure, and thermally managed IT infrastructure deployments. The model number XG74222BS00QX is key for identifying this specific configuration.

Compatibility

This rack cabinet is designed to house standard 19-inch rack-mountable equipment conforming to EIA-310-E and IEC 60297 standards. Its 42U height and 700mm width provide ample space for servers, switches, patch panels, and other networking gear commonly found in enterprise IT environments. The 1200mm depth accommodates deep-chassis equipment.

Installation Notes

The cabinet supports a static load capacity of 3,000 lbs (1,361 kg) and a dynamic load capacity of 2,250 lbs (1,021 kg), requiring a level floor and proper weight distribution for stability. The single-hinge front door can be configured for left or right swing. Ensure adequate clearance for door swing and equipment access during installation planning.
