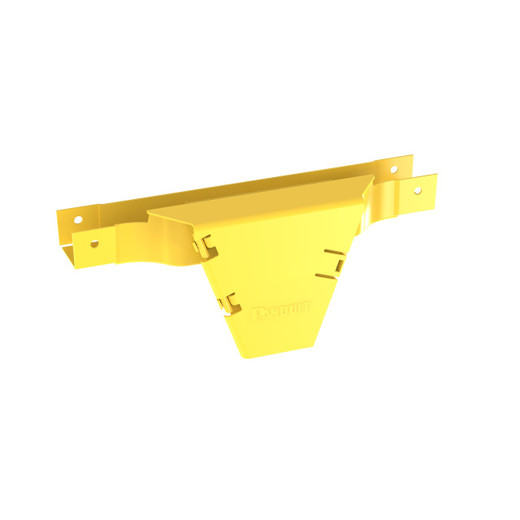

Panduit FVTHD2X2LYL FiberRunner 2x2 Vertical Tee Fitting with Hinged Door

Overview

The Panduit FVTHD2X2LYL is a 90° vertical tee fitting for the Panduit FiberRunner 2x2 fiber routing system, engineered for fiber cable management in data centers and central office telecom environments. It transitions a horizontal fiber run into a 90° vertical drop — the precise fitting you need when cable routes change planes between overhead trays and equipment racks or vertical ladder sections. Built from polycarbonate/ABS with a hinged door, this fitting spans 14.22 inches wide and 5.76 inches tall, accommodating the cable volume and bend-radius requirements of a 2x2 FiberRunner channel system. Standards compliance includes RoHS, UL optical cable guidance assemblies to 2024A, and Telcordia GR-63-CORE / NEBS Level 3 — the certifications that matter for carrier and hyperscale environments where structural and seismic performance are contractual requirements.

Key Features

• 90° Vertical Tee Configuration: Routes fiber from a horizontal channel into a vertical drop without manual bends or improvised transitions. In high-density rows where cables must descend from overhead trays to patch panels, a purpose-fit tee like the FVTHD2X2LYL eliminates stress points on fiber — bend-radius violations at transitions are one of the most common causes of insertion loss in structured fiber runs.
• Polycarbonate/ABS Construction: Polycarbonate/ABS is dimensionally stable across the temperature swings typical in raised-floor and overhead environments — it won't warp, crack, or deform under sustained cable weight the way lower-grade plastics can. It also provides the impact resistance needed in active data center aisles where ladder-use and equipment movement are routine.
• Hinged Door (Included): The integrated hinged door allows access to cables inside the fitting after installation without disconnecting or dismounting the channel. In dense environments where adds, moves, and changes are frequent, this detail saves time and reduces the risk of disturbing adjacent runs during maintenance. This is the FVTHD2X2LYL — the hinged-door variant specifically — not the open-top version, so plan accordingly for your cabling access workflow.
• 14.22
