Panduit FRTR12X4LBL FiberRunner 12x4 Trumpet Spillout Fitting
Overview

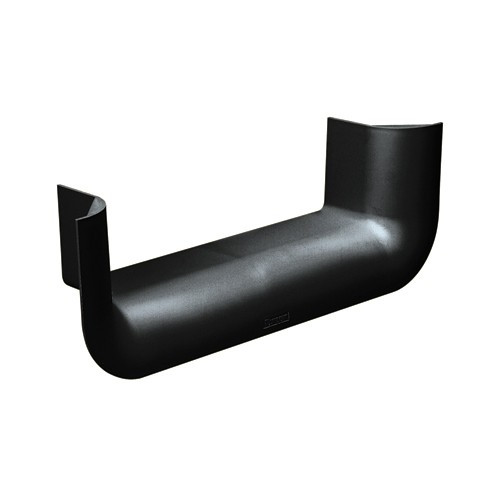

The Panduit FRTR12X4LBL is a three-sided bend radius control trumpet designed specifically for FiberRunner® 12x4 cable management systems. Its primary job is straightforward and non-negotiable in structured cabling environments: limit the bend radius of optical fiber to a minimum of 3 inches (76.2 mm) wherever cable exits the 12x4 channel or a 12x4 horizontal tee. In fiber routing systems for data centers and telco central offices, a single over-bent fiber can degrade signal integrity across an entire run — this fitting mechanically enforces the minimum bend radius so that risk is eliminated by design rather than left to installer judgment. Constructed from a polycarbonate/ABS blend in black, the FRTR12X4LBL is built for the demanding thermal and mechanical environment of high-density cable trays.
Key Features
- 3-inch (76.2 mm) minimum bend radius control: Optical fiber has strict bend radius requirements; violating them causes insertion loss, microbending attenuation, and long-term fiber fatigue. This trumpet enforces the 3-inch minimum mechanically — no reliance on installer technique.
- Polycarbonate/ABS construction: This material combination delivers impact resistance and dimensional stability under the temperature swings common in active data center aisles. It won't warp or creep under sustained cable load the way lower-grade plastics do.
- Three-sided design for 12x4 channel exits and horizontal tees: The geometry is matched to the 12x4 FiberRunner system specifically — it covers three sides of the spillout opening, guiding multiple cables simultaneously rather than routing them one at a time through a grommet.
- 17.76 in (451.1 mm) width: The wide trumpet mouth accommodates high-count fiber bundles exiting a fully loaded 12x4 channel without crowding cables against the edges, which would reintroduce the bend radius problem the fitting is designed to prevent.
- RoHS Compliant: Meets EU Restriction of Hazardous Substances requirements — relevant for data center operators with environmental compliance mandates or multinational facility standards.
- UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Telcordia GR-63-CORE Level 3: GR-63-CORE Level 3 is the telco industry's seismic and environmental benchmark for central office equipment. If your facility is a carrier-grade CO or must meet NEBS-adjacent standards, this rating matters — most generic cable fittings don't carry it.
- Individual unit packaging (Package Qty: 1), sold in cartons of 5: Order exactly the quantity your project requires. Carton quantity of 5 suits most single-row tee or exit-point installations without overbuying.
Integration & Compatibility
The FRTR12X4LBL is designed exclusively for the Panduit FiberRunner® 12x4 system. It installs at channel exit points and at 12x4 horizontal tees — anywhere cable needs to leave the protected routing path. It is not interchangeable with other channel sizes (4x4, 6x4, etc.) in the FiberRunner family; confirm your deployed channel size before ordering. For complete data center cable management infrastructure, pair this trumpet with the appropriate FiberRunner 12x4 straight sections, horizontal tees, and cover hardware. If your installation includes both fiber and copper runs requiring Panduit cable management solutions, verify that the FiberRunner pathway is fiber-dedicated — the bend radius control geometry is optimized for optical fiber, not copper.
What's in the Box
- 1x Panduit FRTR12X4LBL FiberRunner 12x4 Trumpet Spillout Fitting (Black, Polycarbonate/ABS)
Frequently Asked Questions
Q: What bend radius does the FRTR12X4LBL enforce?
A: The FRTR12X4LBL limits cable bend radius to a minimum of 3 inches (76.2 mm) at the 12x4 channel exit or horizontal tee — a standard minimum for most optical fiber types.
Q: Is the FRTR12X4LBL compatible with FiberRunner channels other than 12x4?
A: No. This trumpet is designed specifically for the 12x4 FiberRunner system. It installs at 12x4 channel exits and 12x4 horizontal tees only. Other channel sizes require their own corresponding trumpet fittings.
Q: Does the FRTR12X4LBL meet any industry compliance standards?
A: Yes. It is RoHS Compliant and UL Listed to 2024 Optical Fiber Cable Routing Assemblies. It also complies with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3, which is the seismic and environmental standard for telco central office environments.
Q: What material is the FRTR12X4LBL made from?
A: Polycarbonate/ABS blend, black. This combination provides impact resistance and thermal stability suitable for data center and central office environments.
Q: How many units come per package, and what is the carton quantity?
A: Each unit is packaged individually (Package Qty: 1). Cartons contain 5 units.
Q: Where is the FRTR12X4LBL intended to be installed?
A: It is intended for data centers and telco central offices, installed at any point where fiber cable exits a Panduit FiberRunner 12x4 channel or transitions through a 12x4 horizontal tee.
The FRTR12X4LBL is the kind of fitting that gets overlooked during procurement and becomes a problem during commissioning. The 3-inch (76.2 mm) minimum bend radius isn't a suggestion — exceed it on single-mode fiber and you're looking at elevated insertion loss that won't show up until OTDR testing, at which point the cable is already dressed and the trumpet you skipped is on a different shelf. I spec this fitting at every 12x4 horizontal tee and channel exit in central office builds precisely because GR-63-CORE Level 3 compliance is a contractual requirement on most carrier deployments, not an optional credential.
Technical Highlights:
- Enforced 3-inch bend radius: Passive mechanical control at 76.2 mm eliminates installation variability — fiber dressed through this trumpet cannot be overbent at the exit point regardless of how the cable is pulled.
- GR-63-CORE Level 3 / UL Listed: Telcordia Level 3 covers seismic Zone 4 environments; for carrier COs and edge facilities in seismic regions, this is a bid requirement. Generic fittings without this listing won't clear the submittal process.
- 17.76-inch (451.1 mm) mouth width: Sized to handle high-count bundles across a fully loaded 12x4 pathway — the wide geometry prevents edge crowding that would negate the bend radius control on the outermost cables.
Deployment Considerations:
- Confirm channel size before ordering — the FRTR12X4LBL is specific to the 12x4 FiberRunner system. Installing it on a 6x4 or 4x4 channel is not supported and will not provide the correct fit or bend radius geometry.
- At 5.96 inches tall (151.4 mm), this trumpet projects significantly below or above the channel at the exit point — account for this clearance when planning overhead pathway routing in low-clearance above-ceiling or under-floor installations.
For carrier-grade telco central offices and high-density data center fiber pathways where GR-63-CORE Level 3 compliance is a submittal requirement, the FRTR12X4LBL is the correct fitting for 12x4 FiberRunner exit points — not a substitute product.
