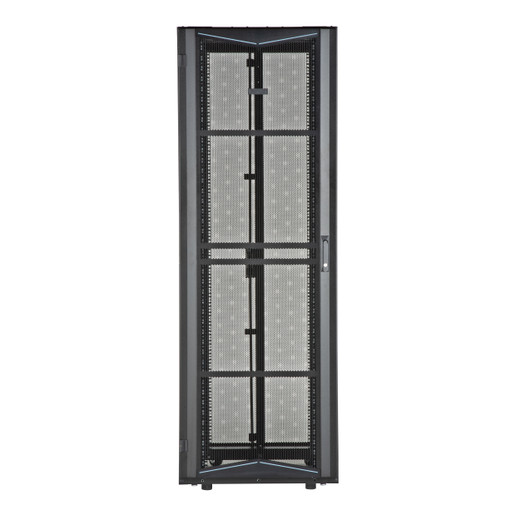

Panduit XG84822BS01SP Network Cabinet

Panduit XG84822BS01SP FlexFusion Network Cabinet

Overview

The Panduit XG84822BS01SP is a 48U, 800mm-wide by 1200mm-deep steel network cabinet from the Panduit FlexFusion line, engineered for high-density data center, server room, and telecom space deployments. At 48U of usable rack space within an 800×1200mm footprint, it accommodates dense server and switching stacks while the 1200mm depth handles full-depth blade chassis and high-port-count switches with cable management behind equipment. The XG84822BS01SP is built around real structural load requirements: a 3,000 lb (1,361 kg) static load capacity means a fully populated cabinet of blade servers won't stress the frame, and the 2,250 lb (1,021 kg) dynamic rating covers safe transport and repositioning on a raised floor without disassembly.

Compatibility

Designed to EIA-310-E, IEC 60297, and UL 2416 standards, the XG84822BS01SP accepts any 19-inch rackmount equipment conforming to those specifications — standard across enterprise switching (Cisco, Arista, Juniper), server platforms (Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem), and network video recorders. The 800mm width accommodates side-by-side cabling channels and wider 1U/2U panels that a standard 600mm cabinet cannot accept. The 1200mm depth is the baseline requirement for full-depth 2-post or 4-post configurations supporting servers deeper than 900mm. Vertical cable managers, blanking panels, and power distribution units (PDUs) designed to EIA-310-E rail spacing mount directly without adapter hardware.

Installation Notes

The cabinet ships as a configurable structured cabling enclosure — verify that your raised floor tile cutout or slab anchor pattern matches the 800×1200mm base footprint before placement. Dynamic load rating applies to wheeled movement on level surfaces; use appropriate load-rated casters rated for the populated weight. Seismic bracing and inter-cabinet joining hardware should be specified per site seismic zone requirements. Confirm ceiling clearance for top-entry cable routing given the full 48U height envelope.
