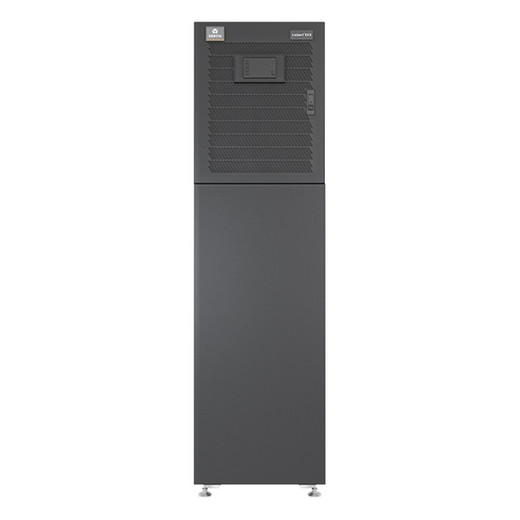

Vertiv EXS 15KVA UPS (40KVA Frame) with Internal Vrla Extended Runtime Battery - EXSV-15KXRN

Vertiv EXSV-15KXRN 15kVA Online UPS Tower

Overview

The Vertiv EXSV-15KXRN is a 15kVA/15kW online double-conversion uninterruptible power supply designed for mission-critical surveillance, network, and data center infrastructure. This three-phase tower unit operates continuously in online mode, converting incoming AC power through its inverter to isolate connected equipment from mains anomalies—brownouts, surges, harmonics, and frequency drift. The EXSV-15KXRN (often searched as EXSV 15KXRN) delivers consistent output voltage and frequency regardless of input instability, a critical requirement for 24/7 camera systems, NVRs, and network gear that cannot tolerate voltage sag or mains interruption.

Key Features

• Online Double-Conversion Topology: Continuous inverter operation means connected equipment never switches to battery—zero transfer time eliminates camera feeds dropping or NVR recordings stuttering during mains events. Voltage and frequency remain locked at rated output even when input swings between 40–70 Hz or dips below nominal.
• 15kVA Capacity with Extended Runtime Battery: The internal valve-regulated lead-acid (VRLA) battery delivers 18 minutes of full-load runtime or 49 minutes at half-load (approximately 7.5kW). For a two-camera NVR setup with supporting infrastructure, 49 minutes is sufficient for orderly shutdown or to ride through brief utility outages. Full-load endurance suits larger deployments where all 15kW must remain powered.
• Three-Phase Hard-Wired Input/Output: 4-wire connection (3 phases + ground) with selectable input (120V, 230V AC) and output (208V, 120V, 220V, 127V AC) means the EXSV-15KXRN integrates into existing facility power distribution without requiring separate single-phase conditioning. Unity power factor (1.0) draws full capacity efficiently from the utility or generator without reactive-power penalties.
• IS-Unity DP Network Management Card: Built-in SNMP, Modbus, and BacNet support enables integration with building management systems (BMS), NOC monitoring dashboards, and DCIM platforms. Temperature and humidity sensors provide environmental telemetry for rack-mounted deployments. Relay contacts trigger alerts or cutover commands when battery depletes or mains fail—no separate monitoring appliance required.
• ENERGY STAR 2.0 Certified: Efficiency designation confirms low standby draw and optimized cooling, reducing operational cost in continuously powered surveillance data centers. UL 1778 and CSA listing ensure compliance with North American electrical codes. RoHS and WEEE certification confirm lead-free construction (battery chemistry excluded) and recyclability.
• Tower Form Factor with Flexible Siting: At 78.7 inches tall, 23.6 inches wide, and 39.3 inches deep, the unit occupies minimal floor space in equipment rooms or under-desk installations. Weighs 1455 lbs (battery included)—requires solid flooring and may benefit from a power distribution rack for cable management. The footprint is narrower than many 15kVA competitors, easing placement in retrofit surveillance control rooms.

Integration & Compatibility

The EXSV-15KXRN connects to facility power via hard-wired 4-wire three-phase input; UPS output branches to individual circuits or a power distribution unit (PDU) serving cameras, NVRs, network switches, and modems. The IS-Unity DP card integrates SNMP queries into Nagios, Zabbix, or Icinga monitoring stacks—standard protocols mean no proprietary agents. BacNet and Modbus support facility-wide energy management where the UPS participates in demand-response or load-shedding sequences. Vertiv Power Insight (free download from Vertiv) provides local web UI for configuration, battery self-test scheduling, and runtime estimates under custom load profiles.

What's in the Box

Specific package contents are not detailed in available documentation. Contact the supplier for exact inclusion of cables, mounting feet, installation documentation, and management software media.

Frequently Asked Questions

Q: What is the warranty period for the EXSV-15KXRN?

A: The EXSV-15KXRN carries a 1-year limited manufacturer warranty covering defects in materials and workmanship.

Q: Can the EXSV-15KXRN run on single-phase utility input if my facility only has 120V single-phase available?

A: No. The EXSV-15KXRN requires three-phase input (40–70 Hz, 120V or 230V selectable). Single-phase facilities must upgrade to three-phase utility service or use a single-phase UPS model from the Vertiv portfolio.

Q: How long does the battery last at half-load (7.5kW)?

A: The internal VRLA battery provides approximately 49 minutes of runtime at half-load. Full-load runtime is 18 minutes. Actual runtime varies with battery age, ambient temperature, and load profile.

Q: Does the EXSV-15KXRN integrate with building management systems (BMS)?

A: Yes. The IS-Unity DP card includes SNMP, Modbus, and BacNet protocols for integration with Honeywell, Johnson Controls, Siemens, and generic BMS platforms. Temperature and humidity sensors provide environmental data.

Q: Is the EXSV-15KXRN NDAA Section 889 compliant?

A: Evidence does not confirm NDAA compliance for this model. Consult Vertiv's compliance documentation or your procurement officer if Section 889 certification is required.

Q: What is the footprint and weight of the EXSV-15KXRN?

A: The tower measures 78.7 inches (H) × 23.6 inches (W) × 39.3 inches (D) and weighs 1455 lbs including the internal VRLA battery. Shipping weight is 212 lbs (likely the unit without battery installed).

Jerry Tildsen

I've deployed the Vertiv EXSV-15KXRN in medium-scale surveillance control rooms where three-phase facility power is available and 24/7 uptime is non-negotiable. The online double-conversion topology is the reason I spec this unit—it eliminates the transfer transient that plagues standby topology UPS systems. Your cameras and NVRs never see a voltage sag or frequency drift; the inverter absorbs all of it continuously. That matters when you're running multi-sensor analytics or recording at high bitrate.

Technical Highlights:

• Online Double-Conversion Architecture: Zero-transfer-time isolation means mains anomalies (sag, surge, harmonic distortion, frequency drift between 40–70 Hz) never reach downstream equipment. Camera feeds and NVR streams don't stutter during utility events—a real problem I've seen with standby and line-interactive UPS designs.
• 49-Minute Half-Load Runtime: The internal 762.6 lb VRLA battery delivers sufficient endurance for controlled shutdown of a typical 2–4 camera NVR setup plus supporting network infrastructure. At full 15kW load, 18 minutes is enough to span a brief outage or initiate emergency power-down; pair it with a generator for extended coverage.
• IS-Unity DP SNMP/Modbus/BacNet Integration: Native building automation support eliminates the need for a separate monitoring appliance. Temperature and humidity sensors feed facility dashboards; relay contacts trigger NOC alerts or generator start commands when battery state-of-charge drops. I've integrated these units into Honeywell, Siemens, and generic BMS platforms without custom glue code.

Deployment Considerations:

• Three-phase hard-wired input is mandatory—single-phase facilities cannot use this unit. Verify your facility electrical design before speccing; retrofit to three-phase can be costly and time-consuming.
• At 1455 lbs (with battery), floor loading and seismic bracing matter in some jurisdictions. Equipment rooms on second floors or retrofit installations need structural review. Plan for professional installation and battery commissioning—don't attempt DIY wiring.

The EXSV-15KXRN excels in mission-critical surveillance deployments where facility three-phase power is available and mains stability is a concern—think financial centers, hospitals, or large retail surveillance control rooms running continuous forensic-grade recording. If your facility only has single-phase utility service, look elsewhere. If you have three-phase and need rock-solid power, this is the design you want.
