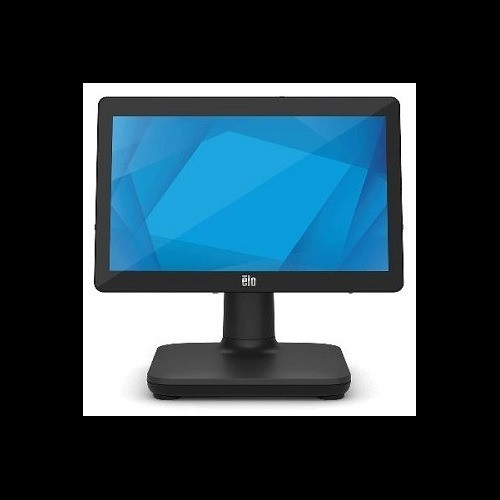

ELO Touch E317130 15.6-inch POS Touchscreen Computer

Overview

The ELO Touch E317130 is a 15.6-inch HD all-in-one POS touchscreen computer built for retail, hospitality, and QSR environments where you need a connected point-of-sale terminal that integrates payment hardware, barcode scanners, customer displays, and peripherals without separate cabinets or external hubs. This configuration ships with Intel Core i3-9100TE processor, 8GB RAM, 128GB M.2 SATA SSD, Windows 10 IoT Enterprise LTSB 64-bit, and a stand-mounted form factor. The integrated USB Type-C hub, Bluetooth 5.0, 802.11ac dual-band WiFi, and Ethernet provide the connectivity backbone for tethering MSR readers, barcode scanners, printers, cash drawers, and customer-facing displays—all from a single 15.6-inch projected-capacitive 10-touch display with antiglare coating and zero-bezel construction. Commercial-grade durability is backed by a 3-year manufacturer warranty.

Compatibility

The E317130 integrates with standard retail POS peripherals via USB hub expansion: Elo MSR (magstripe) readers, barcode scanners, fingerprint biometric readers, EMV payment terminals, thermal receipt printers, cash drawers, and kitchen display systems. The system supports no OS, Windows 10 IoT Enterprise LTSB, or optional Windows 10 Professional 64-bit installations, making it compatible with industry POS platforms (NCR, Micros/Oracle, Toast, Lightspeed, Square, Toast) and custom Windows-based retail applications. Bluetooth 5.0 and dual-band 802.11ac enable wireless connectivity to kitchen printers, mobile loyalty devices, and guest WiFi networks. Ethernet port supports direct POS network integration or failover connectivity. Optional 75mm VESA mount allows wall or under-counter installation.

Installation Notes

The E317130 includes a stand suitable for counter or tabletop deployment. If wall-mounting, the optional 75mm VESA mount is required—verify mounting surface load rating (system weighs approximately 2.3 kg). Power via included 65W external adapter; verify outlet availability and UPS integration for transaction continuity. WiFi deployment requires 2.4GHz or 5GHz access point coverage; for retail environments with heavy RF interference, prioritize Ethernet backhaul. USB hub supports hot-plug peripheral connection during operation. No special tools or configuration are needed for basic stand deployment—unbox, power on, and configure Windows 10 IoT Enterprise or your target OS via included recovery media or pre-staging.

What's in the Box

  • 1x ELO Touch E317130 all-in-one POS system with stand
  • 1x 65W external power adapter with power cord
  • 1x USB Type-C dock/expansion hub
  • 1x Quick start guide
Expert Analysis
Specifications
Brand: ELO Touch
MPN: E317130
Type: EPS15H3-2UWA-1-Mt-8G-1S-W1-64-Bk
Color: Black
Mount Type: Wall
Memory: (RAM)
Storage: 128GB M.2 SATA SSD (80 TBW); optional 256GB (160 TBW) or M.2 PCIe NVMe
Operating System: Options No OS; Microsoft Windows 10 IoT Enterprise LTSB 64-bit; Optional - Windows 10 Professional 64-bit (Windows 10 - 36 Language groups)
Wireless: Connectivity 802.11 a/b/g/n/ac 2.4GHz and 5GHz; Bluetooth 5.0
Audio: 2x 2W internal speakers; 3.5mm headset jack
Display: 15.6" diagonal, active matrix TFT LED LCD
Mounting: Options 75mm VESA mount
Warranty: 3-year warranty; Extended Warranty - 4 year - E819598; 5 year - E819795; 3 year + AUR - E820186; 4 year + AUR - E820388; 5 year + AUR - E820582
interface: USB; Bluetooth; WiFi; Ethernet
wireless: Bluetooth 5.0; 802.11
product_type: Scanner
Operating_System: Options No OS; Microsoft Windows 10 IoT Enterprise LTSB 64-bit; Optional - Windows 10 Professional 64-bit (Windows 10 - 36 Language groups)
Form Factor: Stand
Mount_Type: Stand; optional 75mm VESA wall mount
Form_Factor: All-in-one touchscreen terminal (stand-mounted)
Cybersecurity: TPM 2.0 (on i3/i5 models); Intel vPro (on i5 models)
Connectivity: USB
Power: 11V AC
