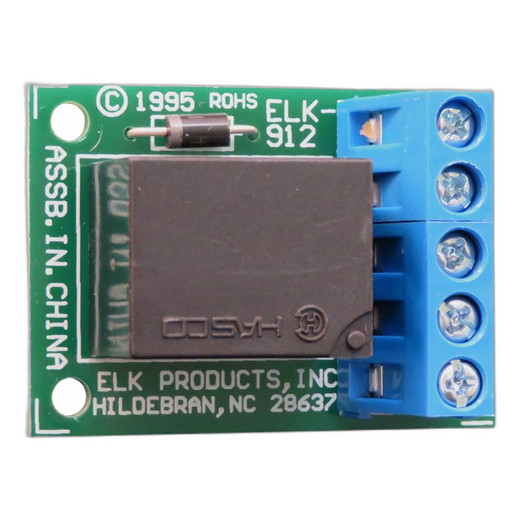

ELK Products ELK-91212 SPDT Relay Module 12VDC
Overview
The ELK-91212 is a 12VDC SPDT (single-pole double-throw) relay module purpose-built for electronic door strike and magnetic lock control in access control architectures. This relay delivers switching capability for fail-safe and fail-secure installations, making it the foundation layer in multi-door access systems where individual relay control per opening is required. The module integrates into ELK Products control panels and third-party access control systems that source 12VDC relay expansion.
Key Features
- SPDT Configuration: Single-pole double-throw relay provides both normally-open (NO) and normally-closed (NC) contact options, letting you configure each door strike independently for fail-safe (unlocked on power loss) or fail-secure (locked on power loss) operation — critical distinction when safety and liability matter.
- 12VDC Operation: Designed to operate from standard 12VDC supplies common in access control backplanes, eliminating the need for separate high-voltage wiring or additional power conditioning.
- Door Strike and Lock Control: Handles electromagnetic door strikes, magnetic locks, and auxiliary switching loads typical in access control deployments — sized for the current and voltage profile of standard commercial strike hardware.
- Multi-Door Scalability: Each ELK-91212 unit controls one door opening, so installations scaling to dozens of doors simply add relay modules without redesigning control logic or power distribution.
- Integration with ELK Products Panels: Installs directly into access control system backplanes from ELK Products, reducing integration labor and certification complexity for installers familiar with the ELK ecosystem.
- Third-Party System Compatibility: Works with non-ELK access control systems that expose 12VDC relay inputs, provided the host panel's relay interface and power budget are verified before deployment.
Integration and Compatibility
The ELK-91212 requires integration into a host control panel that supplies 12VDC power and provides relay input terminals. Before ordering, confirm three critical points: (1) your control panel has available relay input channels (one channel per ELK-91212 module), (2) the 12VDC supply has adequate current headroom for the strike load plus any other auxiliary devices already connected, and (3) the relay input voltage and contact rating in the panel datasheet match the ELK-91212's operating specification.
In multi-door warehouses or large access control deployments, power budget becomes real — a 10-amp 12VDC supply can typically drive 5–8 door strikes depending on strike coil current draw. Confirm this early with your power supply and panel documentation to avoid field delays.
When to Choose a Different Model
If your installation requires relay modules with higher switching current capacity (for heavy-duty industrial locks), look for relay expansion modules rated for higher amperages in the same family. If you need 24VDC operation instead of 12VDC, verify whether ELK Products or your panel vendor offers a 24VDC variant before committing to 12VDC infrastructure.
Frequently Asked Questions
Q: Can the ELK-91212 be used in fail-safe applications?
A: Yes. Configure the relay to use the normally-closed (NC) contact; power loss will release the door strike automatically, meeting fail-safe safety requirements.
Q: What is the maximum current rating for the relay contacts?
A: Consult the ELK-91212 datasheet for exact contact current and voltage ratings; this ensures your door strike or lock load does not exceed relay switching limits.
Q: Does the ELK-91212 work with non-ELK access control panels?
A: Yes, provided the host panel has 12VDC relay input terminals and available control channels. Verify pin configuration and contact polarity with the panel manufacturer before wiring.
Q: How many relay modules can I install on a single 12VDC supply?
A: This depends on your power supply amperage and the coil current draw of each strike or lock. Calculate total load current and confirm it does not exceed your supply's rated output.
Q: Is the ELK-91212 suitable for outdoor door strike installations?
A: The module itself is typically mounted indoors in a control panel; outdoor strikes require weatherproof housings and proper cable sealing. The relay output itself carries low voltage, reducing outdoor environmental risk compared to high-voltage switching.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ELK-91212 (often searched as ELK 91212) occupies a simple but critical role: it's the electronic switch that stands between your access control logic and the door hardware that actually locks or unlocks. In practice, this means the reliability of the relay directly affects user experience and system audit trails. A flaky relay that chatters or fails to engage creates support tickets and forces technicians back to job sites.
Technical Highlights:
- SPDT Contact Configuration: Both NO and NC contacts on a single relay mean you pick fail-safe or fail-secure per door without swapping hardware. In a 50-door warehouse facility, this flexibility lets you assign different security postures to different zones — loading dock doors fail-safe, server room doors fail-secure — all on one module model.
- 12VDC Architecture: Operating at 12 volts keeps relay control signals low-voltage and reduces arc risk compared to 24VDC or line-voltage switching. Your panel power supply and wiring codes become simpler, and installation labor drops because electricians don't have to pull high-voltage conduit to every door.
- Door Strike and Magnetic Lock Integration: The ELK-91212 is sized specifically for the coil-current profile of commercial electromagnetic strikes (typically 0.5–1.5A) and magnetic locks (0.8–2A). Oversized relays waste panel real estate; undersized relays chatter or fail to pull in under load. This module hits the middle ground for standard hardware.
Deployment Considerations:
- Power budget discipline is non-negotiable. A 10A 12VDC supply sounds generous until you load five door strikes (each drawing 1.5A continuously) plus panel logic, buzzers, and indicator lamps. Map your load on paper before ordering relays and power supplies.
- Verify your host panel's relay contact rating (typically 2–5A at 12VDC for access control applications). Exceeding this rating shortens relay contact life dramatically and voids warranty. If your strike coil draws 3A, confirm the ELK-91212 and panel relay inputs are rated for at least that continuous current.
- Normally-closed vs. normally-open selection defines your failure mode. In healthcare, high-security, or life-safety applications, fail-safe (NC configuration) is often mandated by code. In commercial office access, fail-secure (NO configuration) is common. Get this decision right at design time, not during commissioning.
Position the ELK-91212 for medium-scale commercial access control where individual door relay control matters — apartment buildings, office parks, small data centers, warehouse zones. For single-door retrofit jobs, a hardwired relay in the strike housing itself is often simpler. For enterprise multi-site deployments with hundreds of doors, investigate network-connected access control instead of relay modules.
