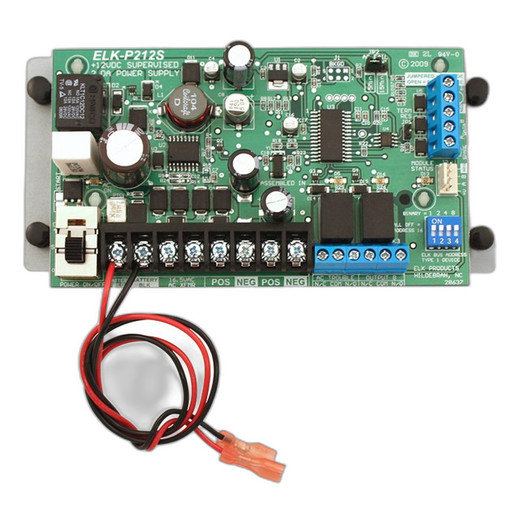

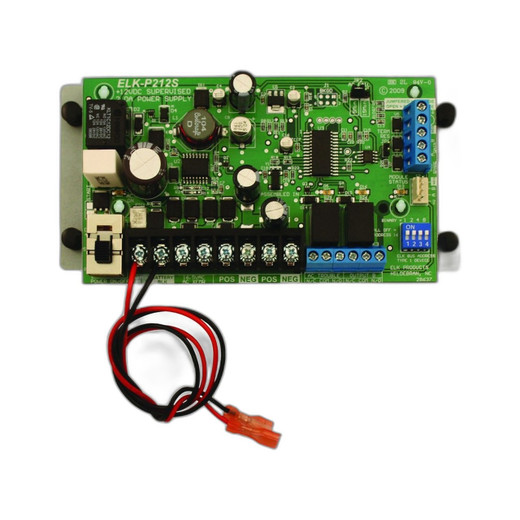

ELK Products ELK-P212S RS-485 Security Accessory

Overview

The ELK-P212S is an expansion accessory designed to extend serial communication capability within ELK Products security and access control systems. This device operates on 12VDC and communicates via RS-485 protocol — the standard for multi-node, long-distance wiring in distributed security architectures. It serves as a compatible integration point for control panels that need additional monitoring, control, or field device nodes without replacing core infrastructure. Installers deploying larger or geographically dispersed security deployments often use RS-485 accessory nodes like the ELK-P212S to tie remote sensors, keypads, or relay outputs back to a central panel over twisted-pair cabling.

Key Integration Points

• RS-485 Serial Communication: Operates on the RS-485 protocol, which is designed for reliable multi-drop serial networks. This means you can daisy-chain multiple nodes along a single twisted-pair cable without degrading signal quality across typical installation distances — eliminating the need to run separate wires back to the main panel for every sensor or control device.
• 12VDC Power Requirement: Requires 12VDC input, so you'll need a compatible 12VDC power supply (or use an existing one in your installation). The 12V standard is common across ELK security panels, reducing integration complexity and power supply count on site.
• Panel Compatibility: The ELK-P212S integrates with ELK Products control panels and security platforms that explicitly support RS-485 serial communication. Compatibility varies by panel model and firmware version, so confirm your specific panel supports RS-485 expansion before ordering — mismatch is the leading cause of integration delays.
• Distributed Architecture Support: Ideal for installations where the main security panel is remote from field devices (sensors, door contacts, keypads, relay modules). Using RS-485 nodes avoids the cost and labor of running dedicated wiring back to the main panel for each device; instead, a single cable backbone supports multiple nodes.
• Firmware Verification Required: Before deployment, verify the ELK-P212S firmware version is compatible with your panel's current build. ELK firmware updates occasionally introduce protocol changes; mixing old and new firmware across nodes can cause intermittent communication failures that are difficult to diagnose in the field.

Integration & Compatibility

The ELK-P212S (often searched as ELK P212S) is engineered as a support component for ELK Products installations requiring RS-485 serial expansion. Compatibility is conditional on panel model, firmware version, and the presence of an available RS-485 port on the main control unit. Before installation, obtain the specific panel model number and current firmware version from the site, then cross-reference the ELK documentation to confirm RS-485 support. If your panel does not explicitly list RS-485 capability, this accessory will not function. Installers working with mixed-generation ELK panels should test in a lab environment first to avoid on-site surprises.

Frequently Asked Questions

Q: Is the ELK-P212S compatible with all ELK control panels?

A: No. The ELK-P212S requires that your main panel explicitly support RS-485 serial communication. Confirm your panel model and firmware version support RS-485 expansion before ordering. Panel documentation or direct contact with ELK technical support is the only reliable way to verify.

Q: Can I use the ELK-P212S to extend cable runs across my facility?

A: RS-485 is designed for multi-node serial networks over twisted-pair cabling, so yes — it supports longer runs than typical hardwired configurations. However, cable quality, termination, and network topology all affect maximum distance. Refer to ELK installation guides for specific distance and termination specifications for your panel.

Q: What power supply do I need for the ELK-P212S?

A: The ELK-P212S requires 12VDC input. Ensure your 12V power supply has sufficient amperage to support the accessory plus any additional field devices you're connecting. Most ELK installations already have a 12VDC supply on site; confirm available current capacity before wiring.

Q: Can I install multiple ELK-P212S units on the same RS-485 network?

A: Yes. RS-485 is a multi-drop protocol, designed to support multiple nodes on a single backbone cable. However, proper termination and address assignment are critical — improper configuration will cause data collisions and communication loss. Consult ELK technical documentation for network topology and addressing rules.

Q: What if I experience intermittent communication between the panel and the ELK-P212S?

A: Check cable termination (RS-485 requires proper 120Ω resistors at each end), verify 12VDC supply stability, confirm firmware compatibility between panel and accessory, and test with a shorter cable run first. Intermittent serial communication usually traces to termination or power supply issues, not the device itself.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ELK-P212S is a straightforward RS-485 expansion node — nothing fancy, but it solves a real problem in large or sprawling ELK installations: avoiding the cost and labor of running dedicated hardwire circuits back to the main panel for every sensor or relay output. If your panel supports RS-485, this accessory lets you daisy-chain field devices along a single twisted-pair backbone, which is exactly what the protocol was designed for.

Technical Highlights:

• RS-485 Serial Protocol: Multi-drop serial standard rated for long cable runs and multiple nodes on a single backbone — no need for separate wiring runs to the main panel for each sensor or device.
• 12VDC Operation: Standard voltage for ELK infrastructure — most sites already have a 12V supply available, reducing power supply redundancy and cost.
• Panel Firmware Dependency: Compatibility is conditional on panel model and firmware version; mismatched firmware between panel and accessory is the primary cause of field integration failures.

Deployment Considerations:

• Before ordering, confirm your ELK panel explicitly lists RS-485 support in the spec sheet or documentation — not all models have it, and some require firmware updates to enable it.
• RS-485 requires proper cable termination (120Ω resistors at each end of the backbone) and correct node addressing — skipping termination will cause intermittent communication loss that's maddening to troubleshoot in the field.
• Test the ELK-P212S in a controlled environment first if you're mixing panel generations or firmware versions — protocol changes between releases occasionally break backward compatibility.

Use the ELK-P212S when you're expanding an existing ELK installation with distributed sensors or relay outputs and want to avoid running dedicated circuits back to a central panel. It's not a Swiss Army knife — it's a single-purpose node — but it's the right choice for that specific job if your panel supports RS-485.
